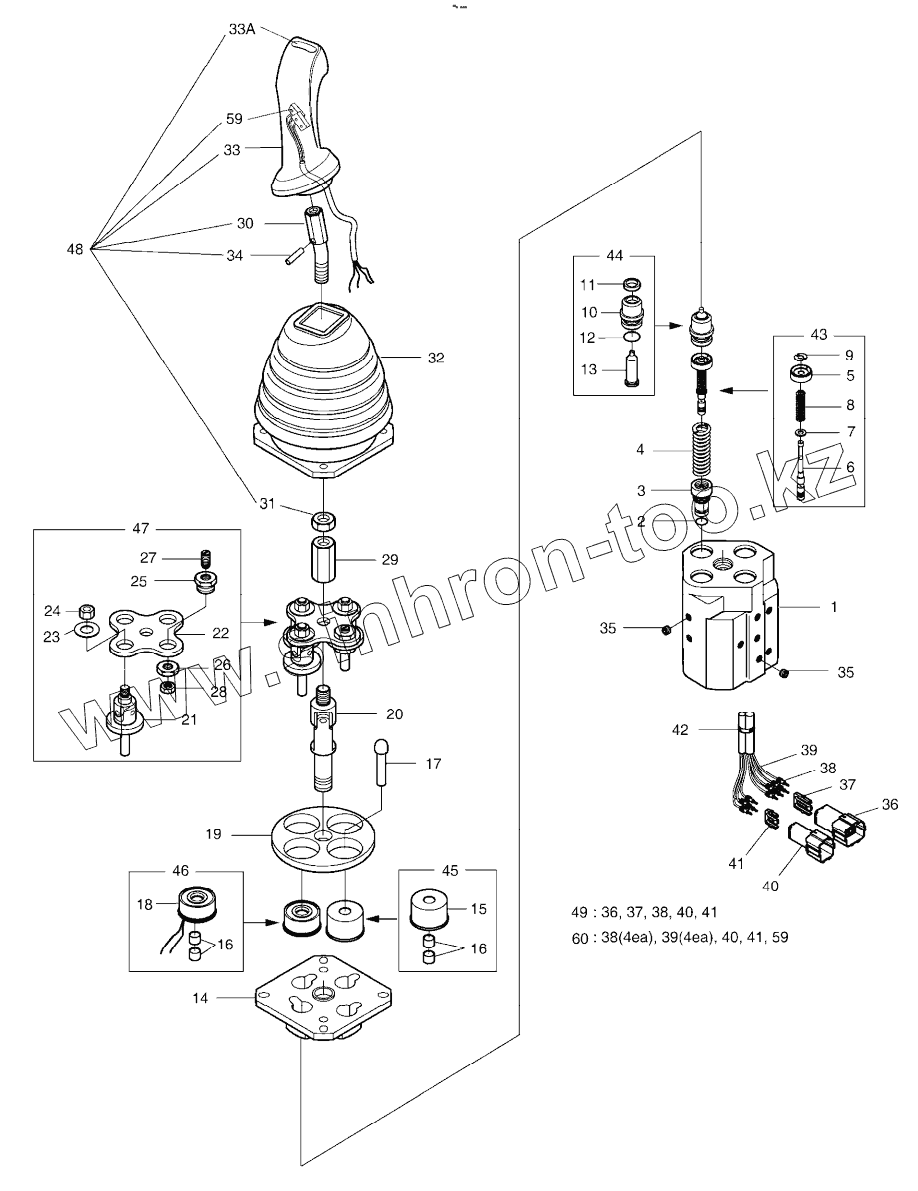

Каталог запасных частей к технике: Doosan DL220. REMOTE CONTROL VALVE
426-00105
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33A
34
35
35
36
36
37
37
38
38
38
39
39
40
40
40
41
41
41
42
43
44
45
46
47
48
49
59
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 426-00105 | 426-00105 | VALVE, REMOCON | |
| 1 | BODY | Body | |
| 2 | S8000081 | O-RING | |
| 3 | 181-00471 | PLUG | |
| 4 | 1.131-00002 | SPRING | |
| 5 | SEAT, SPRING | Seat, spring | |
| 6 | SPOOL | Spool | |
| 7 | SEAT, SPRING | Seat, spring | |
| 8 | SPRING | Spring | |
| 9 | STOPPER | Stopper | |
| 10 | PLUG | Plug | |
| 11 | SEAL, ROD | Seal, rod | |
| 12 | O-RING | O-ring | |
| 13 | ROD, PUSH | Rod, push | |
| 14 | 1.412-00001 | PLATE | |
| 15 | STOPPER, ROD | STOPPER, ROD | |
| 16 | BUSHING, DU | BUSHING, DU | |
| 17 | 1.428-00001 | ROD | |
| 18 | MAGNET | MAGNET | |
| 19 | 1.412-00002 | PLATE | |
| 20 | 1.138-00003 | JOINT ASSY | |
| 21 | JOINT ASSY | JOINT ASSY | |
| 22 | PLATE | Plate | |
| 23 | WASHER | Washer | |
| 24 | NUT M8X1.25 | NUT M8X1.25 | |
| 25 | PLUG | Plug | |
| 26 | NUT | Nut | |
| 27 | SCREW M8X1.25 | SCREW M8X1.25 | |
| 28 | NUT M8X1.25 | NUT M8X1.25 | |
| 29 | 1.121-00001 | NUT | |
| 30 | CONNECTOR | CONNECTOR | |
| 31 | NUT M12X1.75 | NUT M12X1.75 | |
| 32 | 1.160-00003 | BOOT | |
| 33 | HANDLE ASSY | HANDLE ASSY | |
| 33A | 1.161-00021 | CAP;PEANUT | |
| 34 | PIN, SPRING | Pin, spring | |
| 35 | 2181-1116D10 | PLUG | |
| 36 | HOUSING | Housing | |
| 37 | HOLDER, REAR | Holder, rear | |
| 38 | TERMINAL | Terminal | |
| 39 | SEAL, WIRE | SEAL, WIRE | |
| 40 | HOUSING | Housing | |
| 41 | HOLDER, REAR | Holder, rear | |
| 42 | CLIP, BAND | CLIP, BAND | |
| 43 | 1.424-00049 | MAIN SPOOL KIT | |
| 44 | 1.181-00084 | PLUG KIT | |
| 45 | 1.416-00016 | STOPPER KIT | |
| 46 | 1.424-00010 | MAGNET KIT | |
| 47 | 1.412-00028 | PLATE KIT | |
| 48 | 1.172-00008 | HANDLE KIT | |
| 49 | 530-00388 | HARNESS KIT | |
| 59 | SWITCH | Switch | |
| 60 | K9001001 | SWITCH ASS'Y |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
