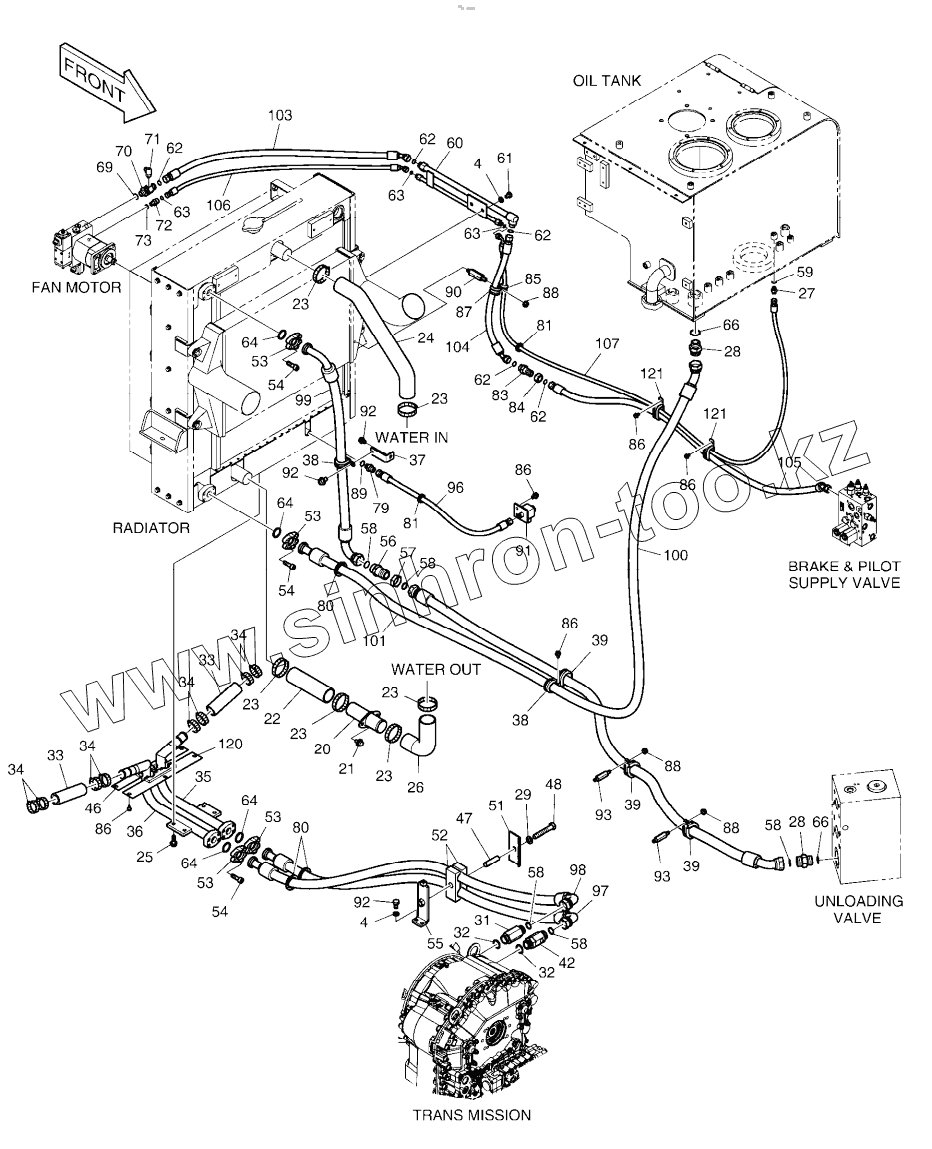

Каталог запасных частей к технике: Doosan DL220. OIL COOLER PIPING (2)
4
4
20
21
22
23
23
23
23
23
23
24
25
26
27
28
28
29
31
32
32
33
33
34
34
34
34
35
36
37
38
38
39
39
39
42
46
47
48
51
52
53
53
53
53
54
54
54
55
56
57
58
58
58
58
58
59
60
61
62
62
62
62
62
63
63
63
64
64
64
64
66
66
69
70
71
72
73
79
80
80
81
81
83
84
85
86
86
86
86
86
87
88
88
88
89
90
91
92
92
92
93
93
96
97
98
99
100
101
103
104
105
106
107
120
121
121
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420212-02438 | 420212-02438 | PIPING, COOLER | |
| 4 | S5102603 | WASHER;SPRING M10 | |
| 20 | K1014206 | PIPE, WATER | |
| 21 | DS0025033 | BOLT | |
| 22 | DS2087071 | HOSE | |
| 23 | S8500067 | CLAMP | |
| 24 | 420109-00113 | HOSE, WATER, COOLANT | |
| 25 | DS0025017 | BOLT | |
| 26 | K1017611A | HOSE, WATER | |
| 27 | 2181-4133D1 | ADAPTER | |
| 28 | DS2232080 | Adapter | |
| 29 | S5102903 | WASHER;SPRING | |
| 31 | DS2232122 | ADAPTER | |
| 32 | S8040161 | O-RING | |
| 33 | DS2087065 | HOSE | |
| 34 | S8500054 | CLAMP | |
| 35 | 420207-00565A | PIPE, (L.H) | |
| 36 | 420207-00566A | PIPE, (R.H) | |
| 37 | K1015291 | BRACKET | |
| 38 | 124-00208D6 | CLIP D38/M8 | |
| 39 | 124-00208D7 | CLIP;BAND | |
| 42 | K1015411 | ADAPTER | |
| 46 | 110502-00261 | COVER, BAFFLE, REAR | |
| 47 | 114-00456 | SPACER | |
| 48 | S0566466 | BOLT | |
| 51 | K1002000 | PLATE | |
| 52 | 124-00247 | CLAMP, HOSE | |
| 53 | 2181-9083 | Flange | |
| 54 | S2212366 | BOLT M10X1.5X35 | |
| 55 | K1018121A | BRACKET | |
| 56 | DS2415005 | Adapter | |
| 57 | 121-00010D9 | Nut | |
| 58 | S8030161 | O-RING | |
| 59 | S8000111 | O-RING | |
| 60 | 420207-00564 | PIPE, FAN MOTOR | |
| 61 | S0511566 | BOLT | |
| 62 | S8030081 | O-RING | |
| 63 | S8030041 | O-RING | |
| 64 | 2180-1026D19 | O-RING | |
| 66 | S8000291 | O-RING | |
| 69 | S8040081 | O-RING | |
| 70 | DS2469002 | ADAPTER | |
| 71 | 430210-00026 | COUPLING, SCREW | |
| 72 | DS2232062 | ADAPTER | |
| 73 | S8040041 | O-RING | |
| 79 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 80 | 160-00057 | BUSHING, RUBBER | |
| 81 | 2160-1004D18 | BUSHING, RUBBER | |
| 83 | 181-00128D3 | ADAPTER, CONNECTOR | |
| 84 | 121-00010D5 | Nut | |
| 85 | 124-00208D2 | CLIP D14/M8 | |
| 86 | K1001029 | BOLT | |
| 87 | 124-00208D4 | CLIP D26/M8 | |
| 88 | 2121-1305 | NUT M8X1.25 | |
| 89 | S8000141 | O-RING | |
| 90 | 2120-2159 | BOLT | |
| 91 | 181-00341A | COCK ASSY | |
| 92 | S0512066 | BOLT | |
| 93 | 120-00179 | BOLT;STUD | |
| 96 | DS2053220 | HOSE | |
| 97 | DS2025079 | HOSE | |
| 98 | DS2025080 | HOSE | |
| 99 | DS2026166 | HOSE | |
| 100 | DS2082039 | HOSE | |
| 101 | DS2012287 | HOSE | |
| 103 | DS2012040 | HOSE | |
| 104 | DS2012384 | HOSE | |
| 105 | DS2012385 | HOSE | |
| 106 | DS2012709 | HOSE | |
| 107 | DS20131550 | HOSE ASSY | |
| 120 | 110502-00260 | COVER, BAFFLE, FRONT | |
| 121 | 124-00209D2 | CLIP |
