Каталог запасных частей к технике: Doosan DL220. OIL COOLER PIPING (1)
420212-02438
1
1
1-1
1-2
1-3
1-4
1-10
2
2
3
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
15
16
17
17
18
18
19
19
30
40
40
41
43
44
45
49
49
49
50
65
65
67
68
68
68
69
74
75
76
77
78
82
94
95
102
108
109
110
111
112
113
113
114
115
116
117
118
119
122
122-1
122-1
122-2
122-3
122-4
122-4
181
191

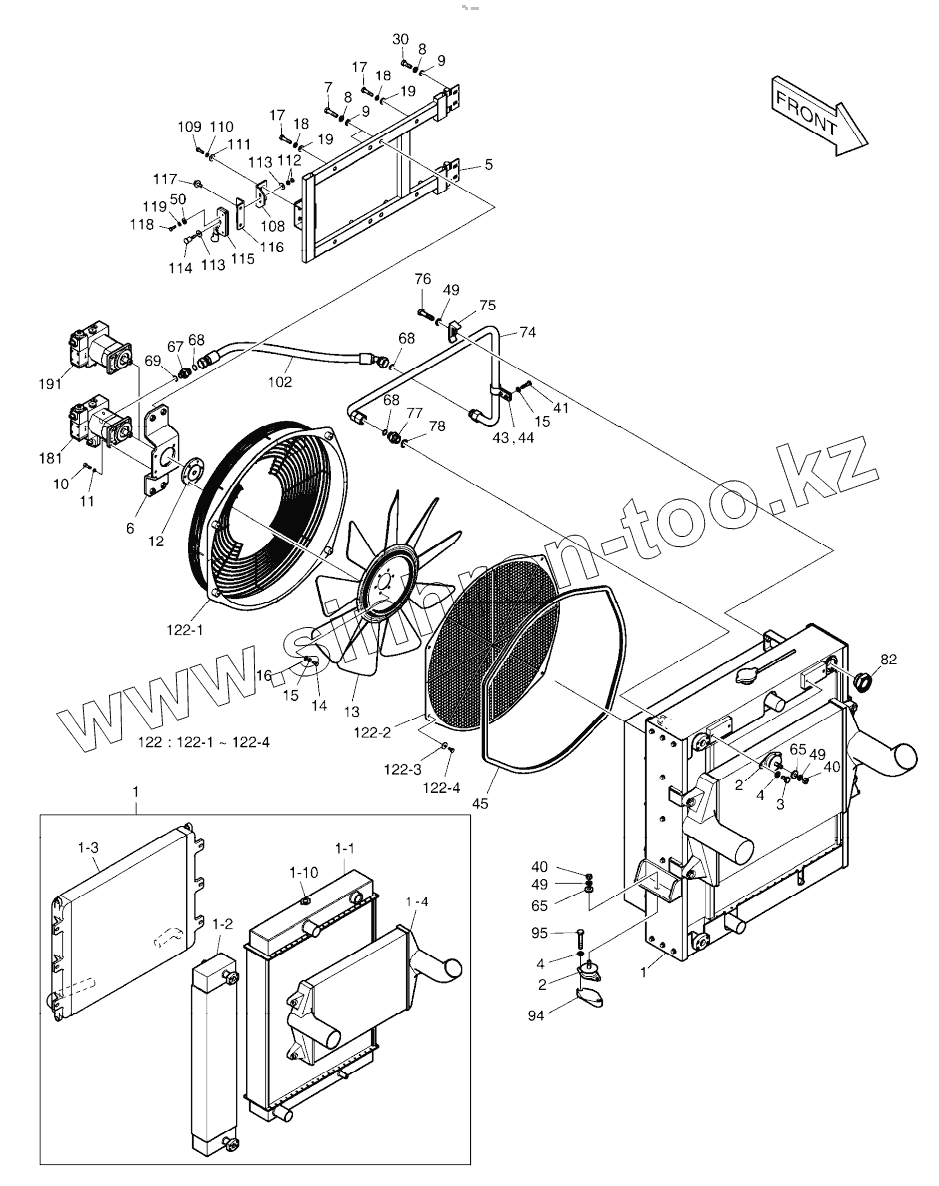

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420212-02438 | 420212-02438 | PIPING, COOLER | |
| 1 | 440211-00092 | RADIATOR ASSY | |
| 1-1 | K1014337A | RADIATOR | |
| 1-2 | K1014339A | HYD OIL COOLER | |
| 1-3 | 400206-00101 | COOLER, TRANSMISSION OIL | |
| 1-4 | K1013860 | INTER COOLER | |
| 1-10 | K9002164 | CAP | |
| 2 | K1004146 | DAMPER | |
| 3 | S0511866 | BOLT | |
| 4 | S5102603 | WASHER;SPRING M10 | |
| 5 | 110404-00013 | BRACKET, SWING | |
| 6 | K1042444 | BRACKET | |
| 7 | 2120-2166D11 | Bolt | |
| 8 | 2114-2031D6 | WASHER | |
| 9 | 2114-1898D6 | Washer | |
| 10 | S2209066 | Bolt | |
| 11 | S5110503 | WASHER;SPRING | |
| 12 | 219-00009A | HUB | |
| 13 | 920-00076 | FAN, COOLING | |
| 14 | S0508866 | BOLT | |
| 15 | S5102503 | WASHER;SPRING | |
| 16 | S5010513 | WASHER;PLAIN M8 | |
| 17 | 2120-2166D48 | BOLT | |
| 18 | 2114-2031D5 | WASHER;SPRING M10 | |
| 19 | 2114-1898D1 | WASHER | |
| 30 | 2120-2166D35 | BOLT | |
| 40 | S4012733 | NUT M12 | |
| 41 | S0556066 | BOLT | |
| 43 | K1010490 | CLAMP | |
| 44 | K1010491 | CLAMP | |
| 45 | 160-00065 | TRIM | |
| 49 | S5102703 | WASHER;SPRING M10 | |
| 50 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 65 | DS0401191 | WASHER | |
| 67 | DS2234012 | ADAPTER | |
| 68 | S8030121 | O-RING | |
| 69 | S8040081 | O-RING | |
| 74 | 420207-00568 | PIPE, FAN MOTOR | |
| 75 | 2124-1026D2 | CLAMP | |
| 76 | S0560866 | BOLT | |
| 77 | 2181-4133D5 | ADAPTER | |
| 78 | S8000241 | O-RING | |
| 82 | 528-00030 | GAUGE, COOLANT SIGHT | |
| 94 | K1018177A | PLATE | |
| 95 | S0558466 | BOLT | |
| 102 | DS2012708 | HOSE ASSY | |
| 108 | 195-01984B | BRACKET | |
| 109 | 2120-2166D16 | BOLT | |
| 110 | 2114-2031D4 | WASHER;SPRING M8 | |
| 111 | 2114-1898D8 | WASHER;PLAIN | |
| 112 | S4012533 | NUT M8X1.25 | |
| 113 | 2114-1058D29 | WASHER | |
| 114 | 101583-00016 | STRIKER | |
| 115 | K1030531 | LATCH | |
| 116 | K1038881A | BRACKET | |
| 117 | DS0025016 | BOLT, SET | |
| 118 | 2120-2166D36 | BOLT M6X1.0X20 | |
| 119 | 2114-2031D3 | WASHER;SPRING M6 | |
| 122 | GUARD, FAN, SUB ASS'Y | GUARD, FAN, SUB ASS'Y | |
| 122-1 | 110921-00089 | GUARD, FAN, OUTER | |
| 122-2 | 110921-00090 | GUARD, FAN, INNER | |
| 122-3 | 2114-1058D29 | WASHER | |
| 122-4 | S0508666 | Bolt | |
| 181 | K1008305 | MOTOR, FAN | |
| 191 | K1024154 | MOTOR, FAN |
