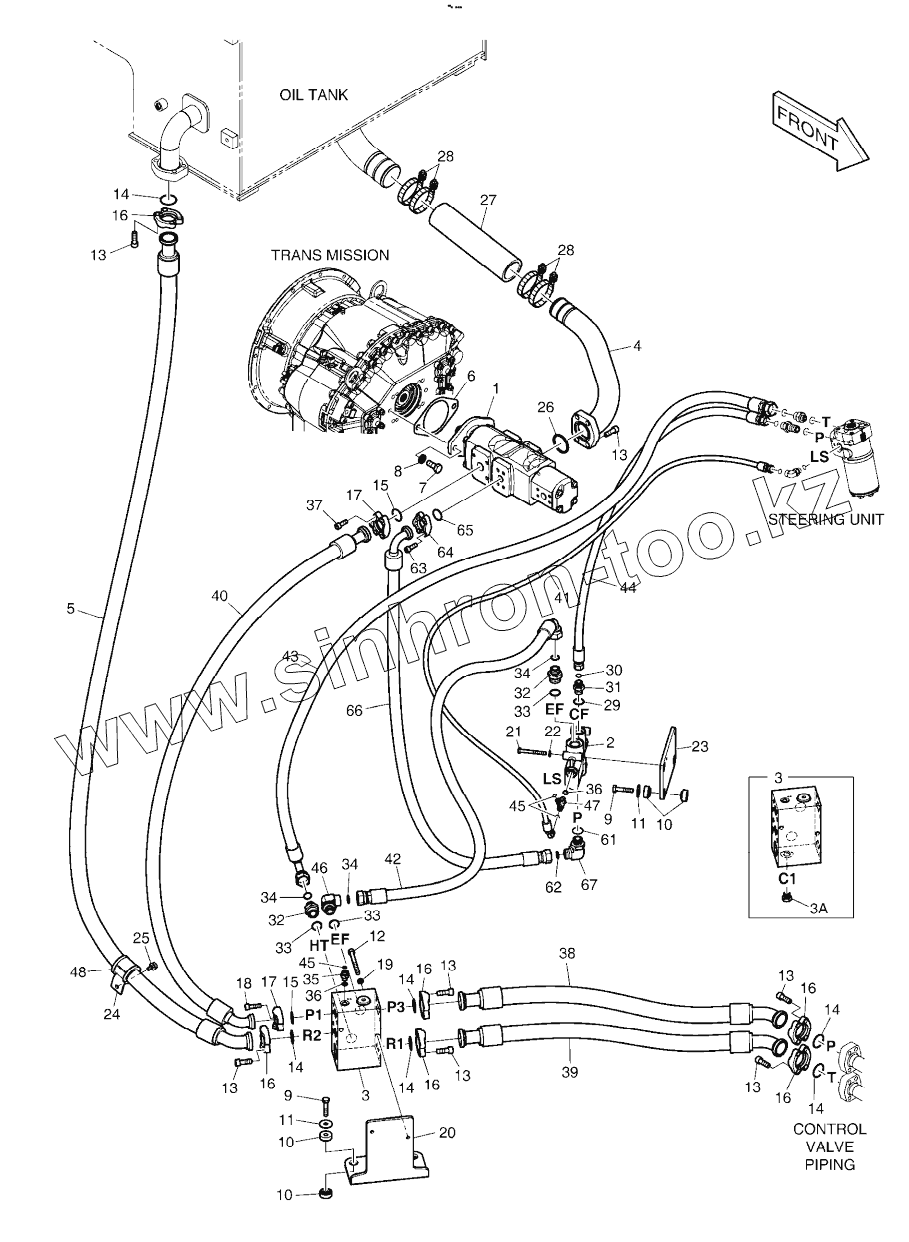

Каталог запасных частей к технике: Doosan DL220. MAIN PIPING
420212-02046
1
2
3
3
3A
4
5
6
7
8
9
9
10
10
10
11
11
12
13
13
13
13
13
13
13
14
14
14
14
14
14
15
15
16
16
16
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
32
33
33
33
34
34
34
35
36
36
37
38
39
40
41
42
43
44
45
45
46
47
48
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420212-02046 | 420212-02046 | PIPING, MAIN | |
| 1 | 400910-00058 | PUMP, GEAR | |
| 2 | 410140-00009A | VALVE, PRIORITY | |
| 3 | 100201-00124 | BLOCK, VALVE | |
| 3A | 410104-00067 | VALVE, CHECK | |
| 4 | 420218-00056A | PIPE, SUCTION | |
| 5 | DS2039192 | HOSE ASSY | |
| 6 | 4180-4010A | GASKET | |
| 7 | S0518366 | BOLT | |
| 8 | S5102803 | Washer | |
| 9 | S0558566 | BOLT | |
| 10 | 2512-1077 | RUBBER, CUSHION | |
| 11 | 2114-1058D62 | WASHER | |
| 12 | S2213666 | Bolt | |
| 13 | S2215366 | BOLT;SOCKET M12X1.75X35 | |
| 14 | 2180-1026D23 | O-ring | |
| 15 | 2180-1026D19 | O-RING | |
| 16 | 4215-1003D7 | FLANGE, HALF | |
| 17 | 2181-9078 | Flange | |
| 18 | S2212366 | BOLT M10X1.5X35 | |
| 19 | S5110603 | WASHER;SPRING | |
| 20 | 110406-00469 | BRACKET, BLOCK VALVE | |
| 21 | S0556766 | BOLT | |
| 22 | S5102503 | WASHER;SPRING | |
| 23 | 250201-00409 | PLATE, PRIORITY VALVE | |
| 24 | 120202-00049 | CLAMP, HOSE | |
| 25 | DS0025042 | BOLT | |
| 26 | 2180-1026D27 | O-RING | |
| 27 | DS2087048 | HOSE | |
| 28 | S8500092 | Clamp | |
| 29 | S8000181 | O-RING | |
| 30 | S8030081 | O-RING | |
| 31 | 2181-4133D3 | ADAPTER | |
| 32 | 2181-4133D5 | ADAPTER | |
| 33 | S8000241 | O-RING | |
| 34 | S8030121 | O-RING | |
| 35 | 2181-4133D1 | ADAPTER | |
| 36 | S8000111 | O-RING | |
| 37 | S2212266 | BOLT;SOCKET M10X1.5X30 | |
| 38 | DS2039079 | HOSE | |
| 39 | DS2039127 | HOSE | |
| 40 | DS2039195 | HOSE ASSY | |
| 41 | DS2013786 | HOSE | |
| 42 | DS2013861 | HOSE | |
| 43 | DS20131164 | HOSE ASSY | |
| 44 | DS2011937 | HOSE ASSY | |
| 45 | S8030041 | O-RING | |
| 46 | 2181-2628D1 | ELBOW | |
| 47 | 181-00121D1 | TEE | |
| 48 | K1010379 | RUBBER | |
| 61 | S8000241 | O-RING | |
| 62 | S8030121 | O-RING | |
| 63 | S2212266 | BOLT;SOCKET M10X1.5X30 | |
| 64 | 2181-9079 | FLANGE | |
| 65 | 2180-1026D2 | O-RING | |
| 66 | DS2018249 | HOSE ASSY | |
| 67 | 2181-2294D2 | Elbow |
