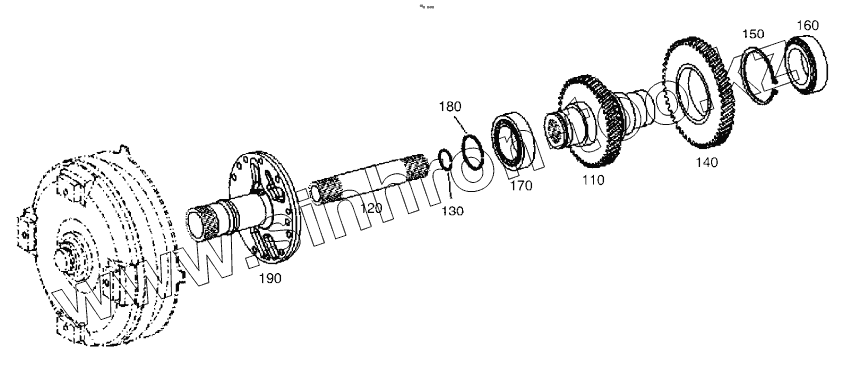

K1013517C
110
110
120
120
130
140
150
160
170
180
190
Позиция на иллюстрации
Заводской номер детали
Название детали
K1013517C
K1013517C
TRANSMISSION
10
K9000918
BELL, CONVERTER
20
1.120-00117
SCREW
50
250201 -00238
DIAPHRAGM
100
1.120-00118
SCREW
110
1.405-00070
SHAFT, INPUT
110
1.114-00255
WASHER
120
1.405-00095
SHAFT, TURBINE
120
K9006644
CONVERTER
130
1.115-00080
RING, SNAP
140
1.403-00051
GEAR, INPUT
150
1.115-00014
RING, RETAINING
160
1.109-00067
BEARING, ROLLER
170
1.109-00067
BEARING, ROLLER
180
1.115-00296
RING, PISTON
190
К9006650
SHAFT, STATOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
