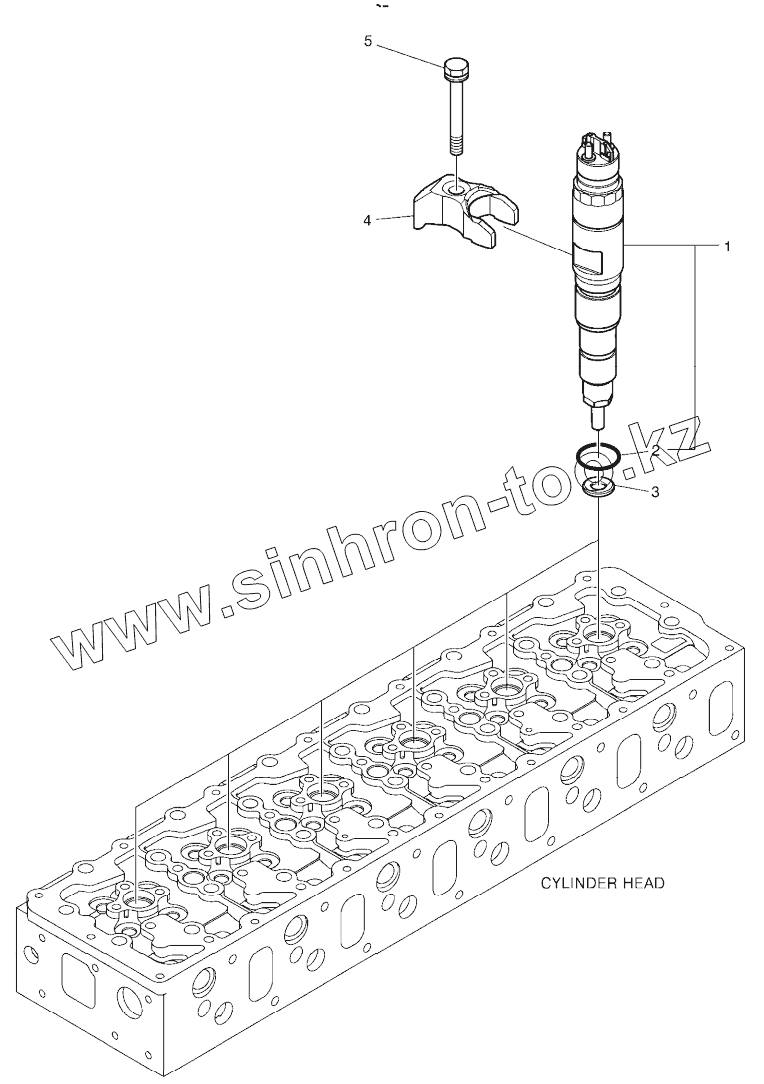

Каталог запасных частей к технике: Doosan DL220. INJECTOR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING OIL SEAL BREATHER DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER AND OIL COOLER OIL PAN THERMOSTAT WATER PUMP COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBOCHARGER INJECTOR INJECTION PIPE INJECTION PUMP ENGINE CONTROL FUEL SYSTEM ALTERNATOR LIFTING HOOK STARTER SENSOR WIRE HARNESS ENGINE MOUNTING AIR COMPRESSOR OVERHAUL GASKET KIT - ALL OVERHAUL GASKET KIT - TOP FRAME ENGINE MOUNTING OIL TANK FUEL TANK AXLE AND DRIVE SHAFT WHEEL ASSY MAIN PIPING STEERING PIPING CONTROL VALVE PIPING (3-SPOOL) PILOT PIPING - JOYSTICK PILOT PIPING - 3SPOOL BRAKE PEDAL VALVE AND STEER UNIT BRAKE PIPING REMOTE PRESS CHECK PIPING OIL COOLER PIPING (1) OIL COOLER PIPING (2) CABIN MOUNTING CABIN (1)-BODY MIRROR - MOUNTING CABIN (2)-INTERIOR SHEET CABIN (3) - DOOR ASSY (L.H) CABIN (4) - DOOR ASSY (R.H) CABIN (5) - GLASS CONTROL STAND JOYSTICK MOUNTING - 3rd LEVER SEAT ASSY-MECHANICAL SUSPENSE DUCT ASSY STEERING ASSY COUNTER WEIGHT AND REAR LAMP BAFFLE ASSY RADIATOR GUARD ENGINE COVER RADIATOR GRILL ASSY FENDER & LADDER ELECTRIC BOX - FNR LEVER ELECTRIC PARTS - CABIN ELECTRIC PARTS - ENGINE ALTERNATOR MOUNTING ELECTRIC PARTS (1) - BATTERY AND REAR LAMP ELECTRIC PARTS (2) - FRONT ELECTRIC PARTS (3) - WIRING AIR CONDITIONER (1) AIR CONDITIONER (2) AIR CONDITIONER (3) LOADER ARM ASSY FRONT LUBRICATION PIPING ARM RAISE KICK OUT ASSY RETURN TO DIG ASSY BUCKET ASSY - 2.2M3 TOOTH ENGINE CONNECT - TRANSMISSION INPUT - TRANSMISSION GEARBOX HOUSING - TRANSMISSION COUPLING K1 - TRANSMISSION COUPLING K2 - TRANSMISSION COUPLING K3 - TRANSMISSION COUPLING K4 - TRANSMISSION COUPLING KV - TRANSMISSION COUPLING KR - TRANSMISSION OUTPUT - TRANSMISSION POWER TAKE OFF - TRANSMISSION GEAR SHIFT SYSTEM (1) - TRANSMISSION GEAR SHIFT SYSTEM (2) - TRANSMISSION PRESSURE REGULATOR - TRANSMISSION PRESSURE OIL PUMP - TRANSMISSION EMG.STEERING PUMP - TRANSMISSION INDICATOR TRANSMITTER - TRANSMISSION TEMPERATURE SENSOR - TRANSMISSION FILTER - TRANSMISSION OIL DIPSTICK - TRANSMISSION LOOSE PARTS - TRANSMISSION INTERMEDIATE CONNECT - FRONT AXLE DIFFERENTIAL HOUSING - FRONT AXLE DIFFERENTIAL - FRONT AXLE PLANETARY GEAR - FRONT AXLE BRAKE - FRONT AXLE INTERMEDIATE CONNECT - REAR AXLE DIFFERENTIAL HOUSING - REAR AXLE DIFFERENTIAL - REAR AXLE PLANETARY GEAR - REAR AXLE BRAKE - REAR AXLE MAIN PUMP STEERING UNIT CUSHION VALVE BRAKE AND PILOT SUPPLY VALVE BRAKE FOOT VALVE CONTROL VALVE (3-SPOOL) CONTROL VALVE (2-SPOOL) BUCKET CYLINDER LIFT CYLINDER STEERING CYLINDER FAN MOTOR FAN MOTOR (BI-ROTATION) REMOTE CONTROL VALVE REMOTE CONTROL VALVE - FNR REMOTE CONTROL VALVE - 2SP + 2 LEVER REMOTE CONTROL VALVE - 3SP + 3 LEVER TOOL SPARE PARTS EMERGENCY STEERING EMERGENCY STEERING - ELECTRIC CONTROL VALVE PIPING - 2 SPOOL PILOT PIPING - FNR + 2 SPOOL PILOT PIPING - FINGER + 3 SPOOL PILOT PIPING - FINGER + 2 SPOOL PILOT PIPING - MONO LEVER + 2 SPOOL LOAD ISOLATION SYSTEM LIS SWITCH LOW NOISE COVER RADIATOR GRILL ASSY FENDER & LADDER - MUD GUARD FENDER & LADDER - FULL REAR FENDER BUCKET ASSY - 2.3M3 (CUTTING EDGE) FUEL HEATER ROTATING BEACON ARM FLOAT KICK-OUT ASSY ARM FLOAT KICK - ELECTRIC ALTERNATOR - 80A NOISE FILTER - WIPER MOTOR NOISE FILTER (AC) CD PLAYER REAR VIEW CAMERA LOADER ARM - ADD PIPING CONTROL VALVE PIPING - ADD PIPING CONTROL VALVE PIPING - ADD PIPING WHEEL ASSY WHEEL ASSY

1

2

3

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
1	65.10401-7004А		INJECTOR ASSY
2	65.96501-0437		O-RING
3	65.96507-0053		RING, SEAL
4	65.10205-0006А		FIXTURE
5	65.90020-0136		BOLT, COLLARED HEX.

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
