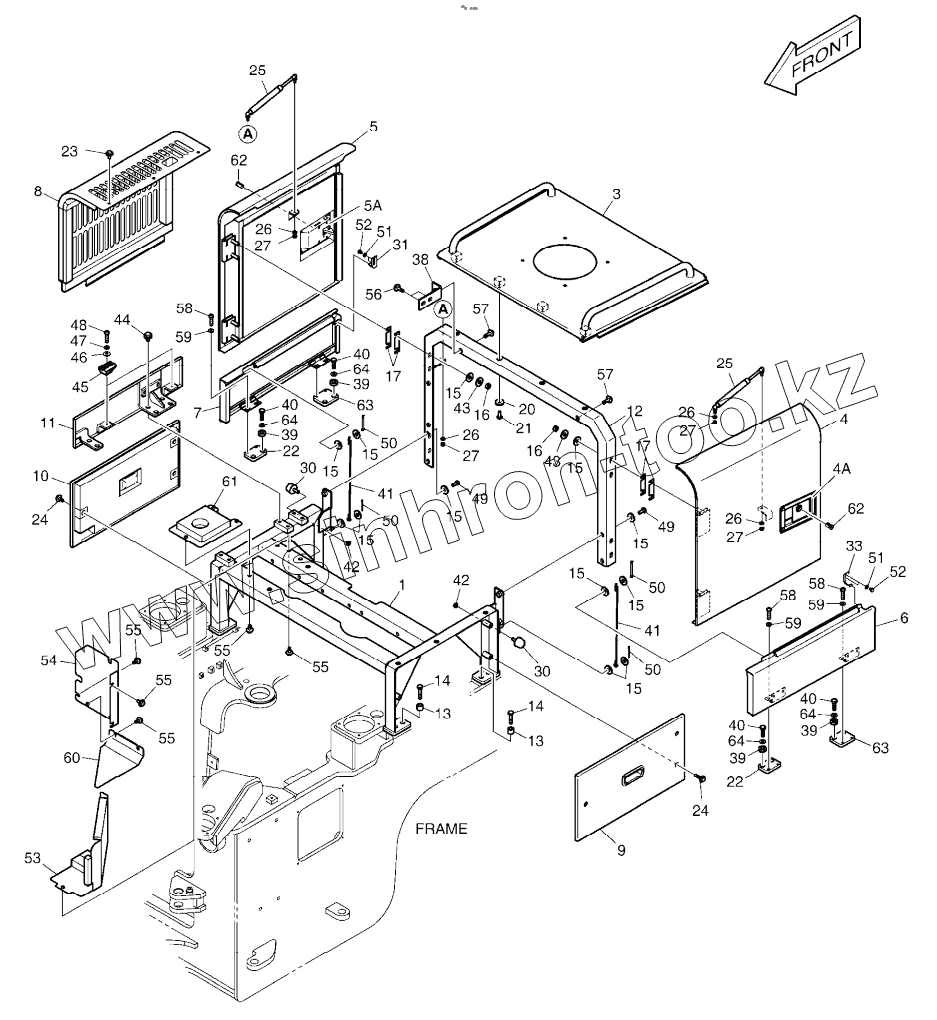

Каталог запасных частей к технике: Doosan DL220. ENGINE COVER
110508-00729
110508-00729
1
3
4
4A
5
5A
6
7
8
9
10
11
12
13
13
14
14
15
15
15
15
15
15
15
15
15
15
16
16
17
17
20
21
22
22
23
24
24
25
25
26
26
26
26
27
27
27
27
30
30
31
33
38
39
39
39
39
40
40
40
40
41
41
42
42
43
43
44
45
46
47
48
49
49
50
50
50
50
51
51
52
52
53
54
55
55
55
55
55
56
57
57
58
58
58
59
59
59
60
61
62
62
63
63
64
64
64
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 110508-00729 | 110508-00729 | COVER ASSY | |
| 1 | 110958-00345 | SUPPORT, OIL TANK | |
| 3 | K1023172A | COVER, HOOD | |
| 4 | K1023173B | DOOR, SIDE (L.H) | |
| 4A | 125-00035A | LOCK | |
| 5 | K1023174B | DOOR, SIDE (R.H) | |
| 5A | 125-00034A | LOCK | |
| 6 | K1023175E | DOOR, SIDE (L.H) | |
| 7 | K1023176E | DOOR, SIDE (R.H) | |
| 8 | 110508-00730 | COVER | |
| 9 | K1023177B | COVER (L.H) | |
| 10 | K1023178B | COVER (R.H) | |
| 11 | 110508-00731 | COVER | |
| 12 | K1023180A | SUPPORT, SIDE DOOR | |
| 13 | DS5201040 | SPACER | |
| 14 | S0560666 | BOLT | |
| 15 | 2114-1058D46 | WASHER | |
| 16 | S4012733 | NUT M12 | |
| 17 | 4114-4160B | SHIM | |
| 20 | DS0401121 | WASHER | |
| 21 | S0512066 | BOLT | |
| 22 | K1024489B | PLATE | |
| 23 | DS0025023 | Bolt | |
| 24 | DS0025028 | BOLT | |
| 25 | DS1001048 | SPRING, GAS | |
| 26 | S5102503 | WASHER;SPRING | |
| 27 | S4012533 | NUT M8X1.25 | |
| 30 | 2875-329M1 | BUFFER | |
| 31 | 4130-1014C | SPRING(R.H) | |
| 33 | 4130-1015C | SPRING(L.H) | |
| 38 | 195-01329A | BRACKET | |
| 39 | 2114-1058D45 | WASHER M10 | |
| 40 | S0512266 | BOLT | |
| 41 | 4139-9083 | CABLE, DOOR | |
| 42 | S4012333 | NUT M6X1.0 | |
| 43 | S5102703 | WASHER;SPRING M10 | |
| 44 | DS0025025 | BOLT | |
| 45 | 2161-2212 | STOPPER;RUBBER | |
| 46 | 2114-1058D52 | WASHER | |
| 47 | S5102303 | WASHER;SPRING M6 | |
| 48 | S3450993 | SCREW M6X1.0X25 | |
| 49 | S0560466 | Bolt | |
| 50 | 2705-9002 | PIN;LOCK | |
| 51 | S5010313 | WASHER;PLAIN | |
| 52 | S0504266 | BOLT | |
| 53 | K1023181B | COVER | |
| 54 | K1023279A | COVER | |
| 55 | DS0025032 | BOLT, SET | |
| 56 | DS0025017 | BOLT | |
| 57 | DS0025016 | BOLT, SET | |
| 58 | S0508966 | BOLT | |
| 59 | 2114-1058D56 | Washer | |
| 60 | 110508-01873 | COVER | |
| 61 | 250201-00471 | PLATE | |
| 62 | K1004630 | KEY, CYLINDER | |
| 63 | K1027514A | PLATE | |
| 64 | S5102603 | WASHER;SPRING M10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
