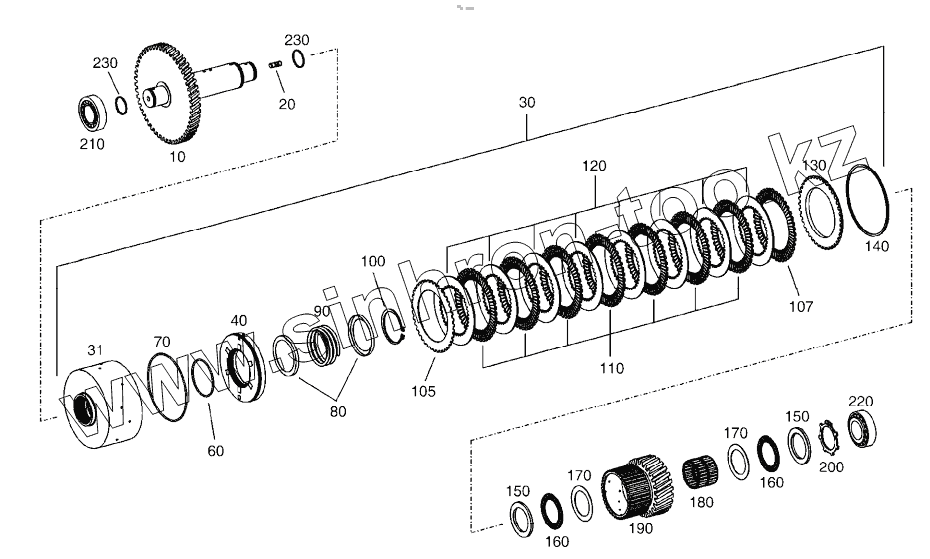

Каталог запасных частей к технике: Doosan DL220. COUPLING K1 - TRANSMISSION
10
20
30
31
40
60
70
80
90
100
105
107
110
120
130
140
140
140
140
140
140
140
140
140
140
140
140
140
140
140
150
150
160
160
170
170
180
190
200
210
220
230
230
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | K9004366 | SHAFT | |
| 20 | 1.120-00034 | STUD | |
| 30 | K9004592 | COUPLING | |
| 31 | K9004368 | CARRIER, DISC | |
| 40 | 1.409-00035 | PISTON | |
| 60 | 1.180-00087 | O-RING | |
| 70 | 1.180-00089 | O-RING | |
| 80 | K9004365 | RING, GUIDE | |
| 90 | K9004351 | SPRING, COMPR | |
| 100 | K9004336 | RING, RETAINING | |
| 105 | 1.222-00003 | DISC, O.CLUTCH | |
| 107 | 1.222-00003 | DISC, O.CLUTCH | |
| 110 | 1.222-00004 | DISC | |
| 120 | 1.222-00029 | DISC, I.CLUTCH | |
| 130 | 1.114-00164 | SHIM, END | |
| 140 | 1.115-00347 | RING, SNAP | |
| 140 | 1.115-00345 | RING, SNAP | |
| 140 | 1.115-00343 | RING, SNAP | |
| 140 | 1.115-00341 | RING, SNAP | |
| 140 | 1.115-00327 | RING, SNAP | |
| 140 | 1.115-00339 | RING, SNAP | |
| 140 | 1.115-00337 | RING, SNAP | |
| 140 | 1.115-00335 | RING, SNAP | |
| 140 | 1.115-00333 | RING, SNAP | |
| 140 | 1.115-00331 | RING, SNAP | |
| 140 | 1.115-00329 | RING, SNAP | |
| 140 | 1.115-00325 | RING, SNAP | |
| 140 | 1.115-00323 | RING, SNAP | |
| 140 | 1.115-00321 | RING, SNAP | |
| 140 | 1.115-00319 | RING, SNAP | |
| 150 | 1.222-00058 | DISC, RUNNING | |
| 160 | 1.216-00004 | CAGE, AX.NEEDLE | |
| 170 | 1.114-00384 | Washer, axial | |
| 180 | 1.216-00005 | CAGE, NEEDLE | |
| 190 | K9004367 | IDLER | |
| 200 | 1.115-00015 | RING, RETAINING | |
| 210 | 1.109-00068 | BEARING, ROLLER | |
| 220 | 1.109-00068 | BEARING, ROLLER | |
| 230 | 1.115-00294 | RING, PISTON |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
