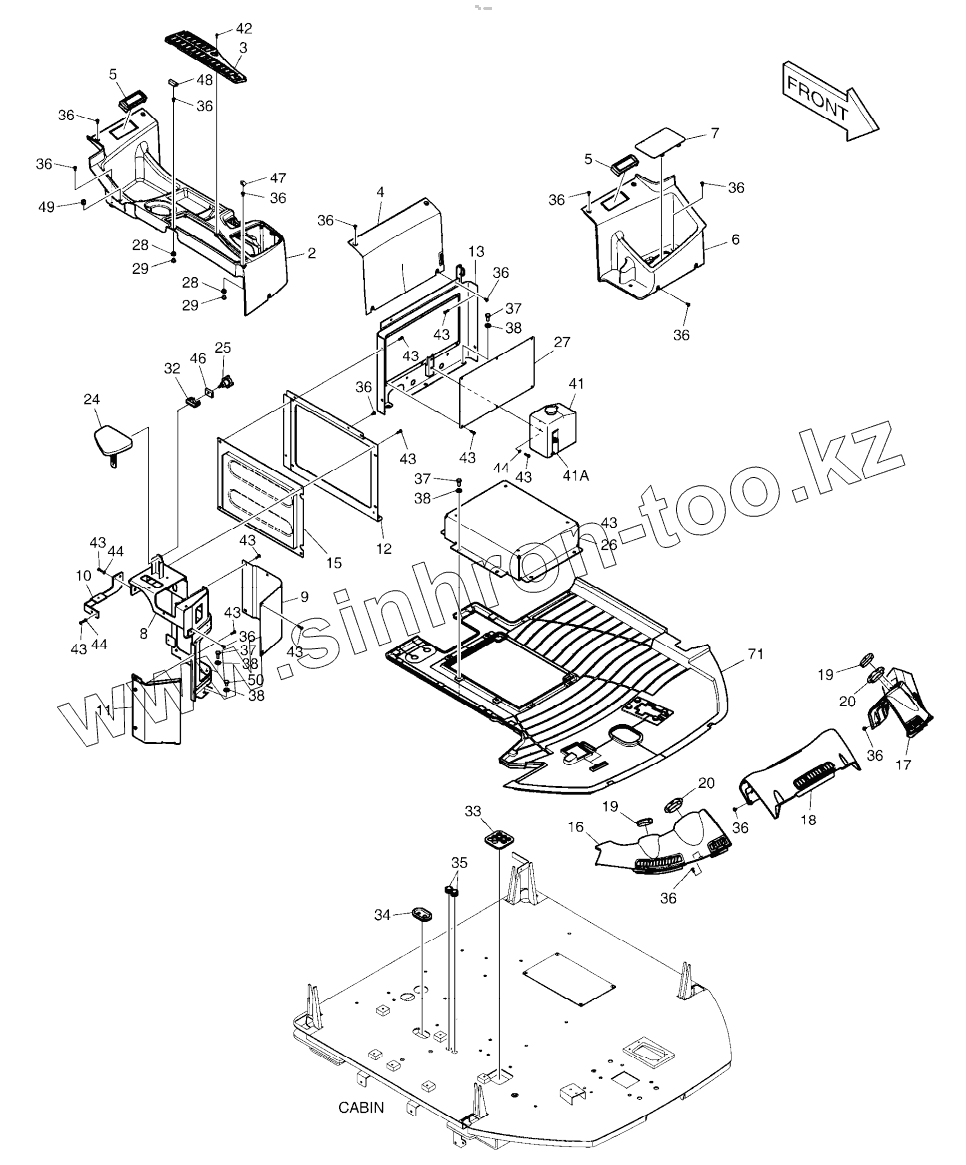

Каталог запасных частей к технике: Doosan DL220. CONTROL STAND
2
3
4
5
5
6
7
8
9
10
11
12
13
15
16
17
18
19
19
20
20
24
25
26
27
28
28
29
29
32
33
34
35
36
36
36
36
36
36
36
36
36
36
36
36
36
36
37
37
37
38
38
38
38
41
41A
42
43
43
43
43
43
43
43
43
43
43
43
44
44
44
46
47
48
49
50
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 110953-00004A | 110953-00004A | STAND ASSY | |
| 2 | K1016736 | STAND, FRONT (R.H) | |
| 3 | K1016739A | COVER, SWITCH | |
| 4 | K1016740 | COVER, CENTER | |
| 5 | 430218-00001 | NOZZLE, DUCT | |
| 6 | K1005987A | COVER, STAND (L.H) | |
| 7 | K1005989 | COVER, FUSE BOX | |
| 8 | K1016741 | SUPPORT, FRONT (R.H) | |
| 9 | K1016752 | PLATE | |
| 10 | K1006498A | PLATE, SUPPORT | |
| 11 | K1006747B | BRACKET, FRT (R.H) | |
| 12 | K1016755 | SUPPORT, BTM REAR (R.H) | |
| 13 | K1016764A | SUPPORT, BTM REAR CENTER | |
| 15 | K1029814 | COVER | |
| 16 | K1006025A | DASHBOARD (R.H) | |
| 17 | K1006030A | DASHBOARD (L.H) | |
| 18 | K1016771A | COVER, CENTER | |
| 19 | K1006041 | NOZZLE, VENT SMALL | |
| 20 | K1006042 | NOZZLE, VENT LARGE | |
| 24 | K1006330 | ARMREST | |
| 25 | K1006333 | KNOB, ARM REST | |
| 26 | K1016799 | SUPPORT | |
| 27 | K1016805 | COVER | |
| 28 | K1005977 | BUSHING | |
| 29 | K1005978 | BUSHING | |
| 32 | K1007004 | PLATE | |
| 33 | K1006094 | PLATE | |
| 34 | K1006095 | PLATE | |
| 35 | K1006096 | PLATE | |
| 36 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 37 | 2120-2166D2 | BOLT M10X1.5X25 | |
| 38 | 2114-1898D1 | WASHER | |
| 41 | 4916-9006 | WASHER, WINDOW | |
| 41A | K9009874 | Motor, reserve tank | |
| 42 | 2120-2166D26 | SCREW | |
| 43 | 2120-2166D36 | BOLT M6X1.0X20 | |
| 44 | 2114-1898D3 | WASHER | |
| 46 | K1009798 | PLATE | |
| 47 | К1018857 | CAP | |
| 48 | К1018858 | CAP | |
| 49 | К1018334 | GUIDE | |
| 50 | S0511363 | BOLT, HEX | |
| 71 | К1016798 | MAT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
