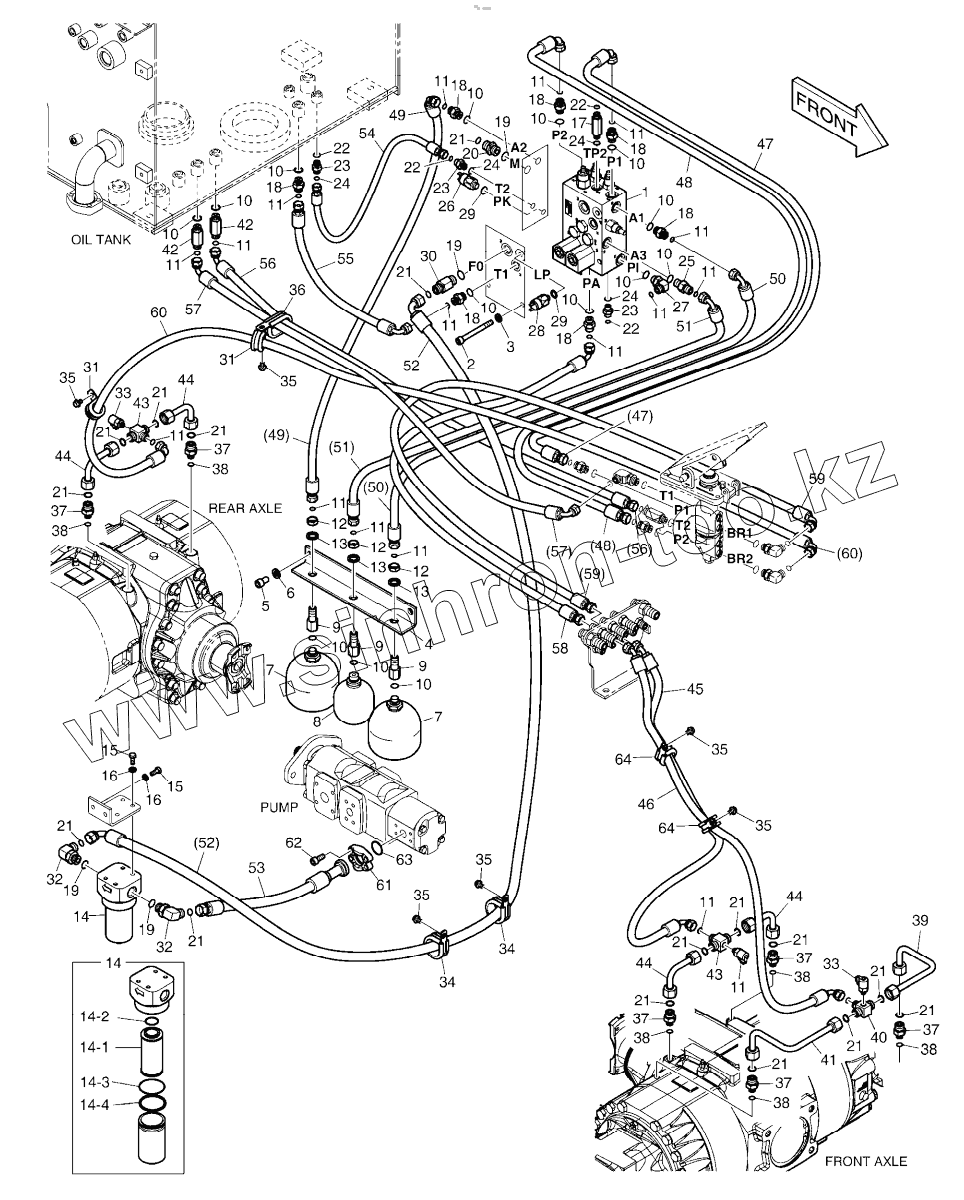

Каталог запасных частей к технике: Doosan DL220. BRAKE PIPING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
420212-02012
420212-02012
1
2
3
4
5
6
7
7
8
9
9
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
13
13
13
14
14
14-1
14-2
14-3
14-4
15
15
16
16
17
18
18
18
18
18
18
18
19
19
19
19
20
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
21
22
22
22
22
23
23
23
24
24
24
24
25
26
27
28
29
29
30
31
31
32
32
33
33
34
34
35
35
35
35
35
35
36
37
37
37
37
37
37
38
38
38
38
38
38
39
40
41
42
42
43
43
44
44
44
44
45
46
47
47
48
48
49
49
50
50
51
51
52
52
53
54
55
56
56
57
57
58
59
59
60
60
61
62
63
64
64
Позиция на иллюстрации Заводской номер детали Название детали
420212-02012 420212-02012 PIPING, BRAKE
1 410120-00010A VALVE, BRAKE PILOT SUPPLY
2 S2213666 Bolt
3 S5110603 WASHER;SPRING
4 110406-00538 BRACKET, ACCUMULATOR
5 S2215066 BOLT
6 S5102703 WASHER;SPRING M10
7 K1014741 ACCUMULATOR
8 2460-9054 ACCUMULATOR
9 181-00141 Reducer
10 S8000141 O-RING
11 S8030061 O-RING
12 DS0301032 NUT
13 S5111003 WASHER, SPRING
14 K1009104 FILTER, BRAKE
14-1 K1009106 ELEMENT, FILTER
14-2 S8000231 O-RING
14-3 K9005014 O-RING
14-4 K9005654 RING, BACK-UP
15 S0508866 BOLT
16 S5102503 WASHER;SPRING
17 DS2232099 ADAPTER
18 2181-4133D2 ADAPTER PF3/8-UNF3/8
19 S8000181 O-RING
20 2181-4133D3 ADAPTER
21 S8030081 O-RING
22 S8030041 O-RING
23 2181-4133D1 ADAPTER
24 S8000111 O-RING
25 2181-4133D24 ADAPTER PF3/8-UNF3/8
26 549-00039 SWITCH-PARK
27 2181-2815D6 ELBOW
28 2549-9093 Switch, low pressure
29 S8180211 SEAL RING
30 2181-4133D37 ADAPTER
31 124-00208D4 CLIP D26/M8
32 2181-2815D3 ELBOW
33 430210-00026 COUPLING, SCREW
34 124-00208D7 CLIP;BAND
35 K1001029 BOLT
36 124-00209D7 CLIP
37 DS2232176 ADAPTER
38 S8000121 O-RING
39 420210-00225 PIPE, PARKING BRAKE
40 DS2499001 TEE
41 420210-00226 PIPE, PARKING BRAKE
42 DS2232085 ADAPTER
43 DS2499002 TEE
44 420210-00228 PIPE
45 DS2021259 HOSE
46 DS2021341 HOSE
47 DS2013976 HOSE
48 DS2013736 HOSE
49 DS20131333 HOSE
50 DS2013812 HOSE
51 DS2013811 HOSE
52 DS2023463 HOSE
53 DS2016162 HOSE
54 DS2011952 HOSE
55 DS20131580 HOSE
56 DS2013738 HOSE
57 DS2023464 HOSE
58 DS2013813 HOSE
59 DS2013738 HOSE
60 DS2023275 HOSE
61 2181-9079 FLANGE
62 S2212066 BOLT;SOCKET M10X1.5X25
63 2180-1026D2 O-RING
64 124-00208D5 CLIP D32/M8
