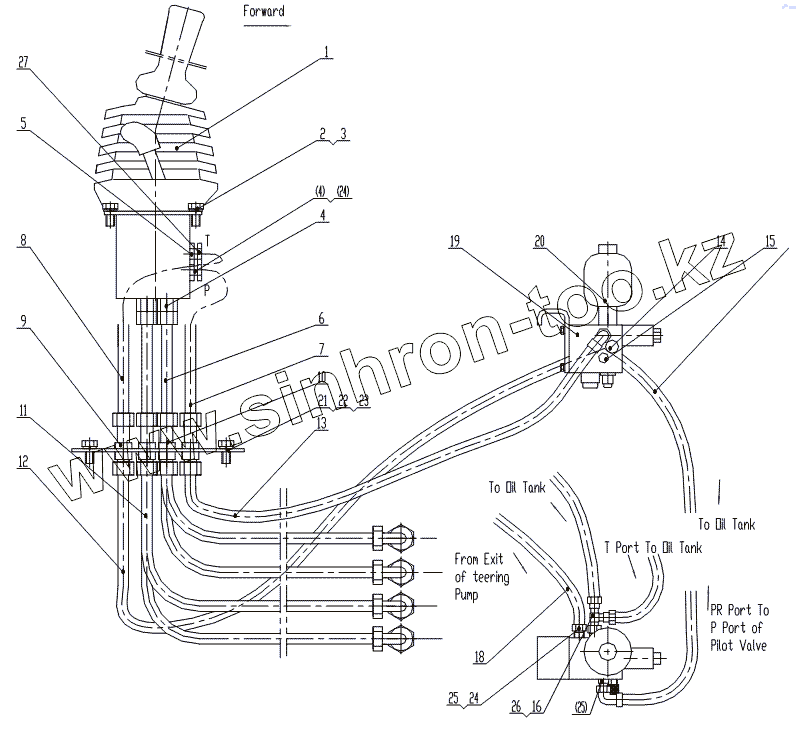

Каталог запасных частей к технике: ChengGong CG-958H. Pilot Hydraulic System (Z50G1005T16A)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 606-1021-1213 | Pilot Valve | |
| 2 | GB/T5783-2000 | Connector | |
| 3 | GB/T93-1987 | Valve | |
| 4 | 1C0-16-04Z | Connector | |
| 5 | 1C0-18-04Z | Connector | |
| 6 | 20411-16-04TZX1T04AGX535 | Hose | |
| 7 | 20491-16-04Z/20411-16-04TZX1T04AGX590 | Hose | |
| 8 | 20411-18-06ZX1T06AGX615 | Hose | |
| 9 | 6C-18/LNZ | Hose | |
| 10 | 6C-16/LNZ | Hose | |
| 11 | 20411-16-04TZX1T04AGX930 | Hose | |
| 12 | 20411-18-06ZX1T06AGX880 | Hose | |
| 13 | 20411-16-04Z/20491-16-04ZX1T04AGX930 | Hose | |
| 14 | PT-3-DKL | Connector | |
| 15 | 4M-14WDZ | Plug | |
| 16 | CC-18Z | Connector | |
| 17 | 20491-18-06Z/20411-18-06ZX1T06AGX1040 | Hose | |
| 18 | 20411-16-04Z/20491-16-04ZX2T04AGX1060 | Hose | |
| 19 | DKF1-00 | Valve | |
| 20 | SB0210-0.32E1/112U-210AK60 | Accumulator | |
| 21 | Z50G100500001T16A | Plate | |
| 22 | GB/T5783-2000 | Connector | |
| 23 | GB/T93-1987 | Valve | |
| 24 | 2C9-16Z | Connector | |
| 25 | 1CH-16-14Z | Connector | |
| 26 | 1CH-18-14Z | Connector | |
| 27 | 2C9-18Z | Connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
