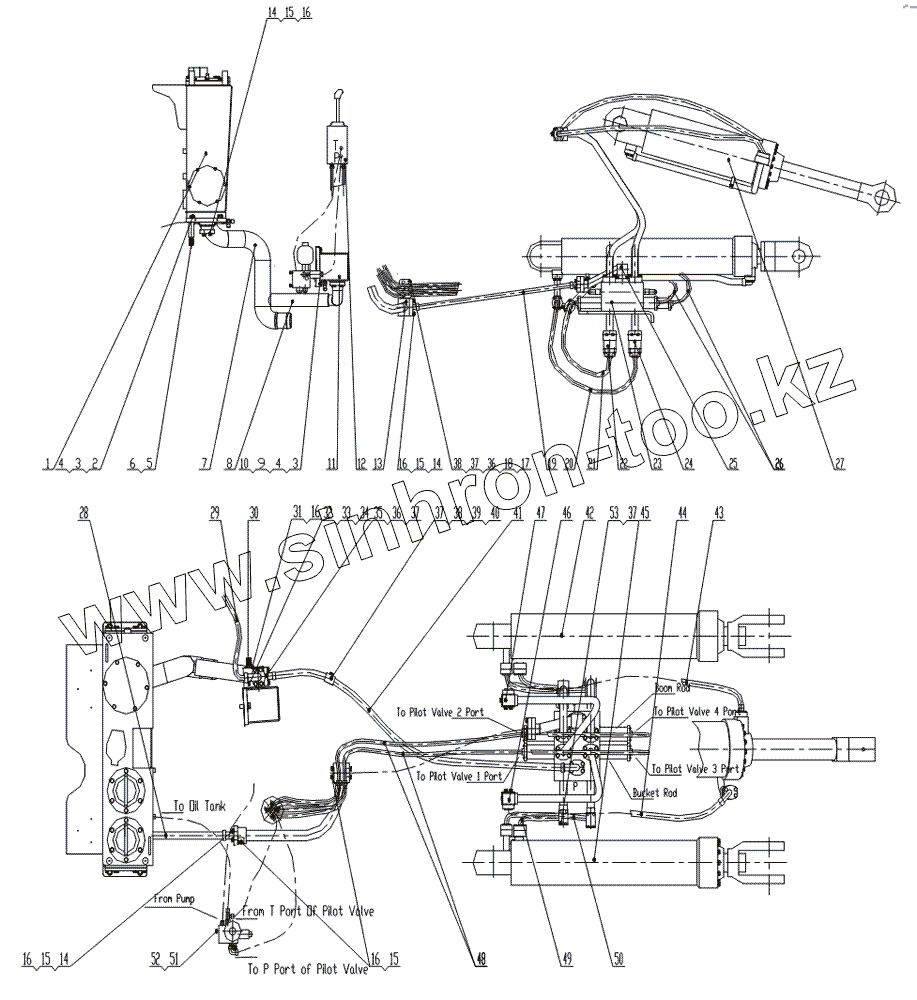

Каталог запасных частей к технике: ChengGong CG-958H. Implement Hydraulic System
1
2
3
3
4
4
5
6
7
8
9
10
10
11
12
13
14
14
14
15
15
15
15
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
37
37
37
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z50G1001T15 | Hydraulic Oil Tank | |
| 2 | GB/T5783-2000 | Connector | |
| 3 | GB/T93-1987 | Valve | |
| 4 | GB/T97.2-2002 | Washer 24 | |
| 5 | 1H-30-33FAZ | Connector | |
| 6 | 20030-30-12FAZ | Connector | |
| 7 | Z50G1003T15 | Steel Tube Assembly | |
| 8 | Z50G1004T15 | Steel Tube Assembly | |
| 9 | GB/T5783-2000 | Connector | |
| 10 | Z50G080000001T7 | Gasket | |
| 11 | T6DM-B35-3L03-C1M0 | Pump | |
| 12 | Z50G1005T15 | Pilot Hydraulic System | |
| 13 | Z50G1002T15 | Steel Tube Assembly | |
| 14 | FL-24Z | Flange | |
| 15 | GB/T5783-2000 | Connector | |
| 16 | GB/T93-1987 | Valve | |
| 17 | Z50G100000002T15 | Plate | |
| 18 | 6C-16/LNZ | Hose | |
| 19 | 87311-24-24Z/87341-24 -24ZX1T24AGX1190 | Hose | |
| 20 | 87392-16-16H130Z/87342-16-16Z X4SP16AGX1325 V270° +RS YWEX | Hose | |
| 21 | 87392-16-16Z/87342-16-16ZX 4SP16AGX1360 V270°+RS YWEX | Hose | |
| 22 | Z50G1013T15 | Steel Tube Assembly | |
| 23 | Z50G1009T7 | Multi-way valve | |
| 24 | Z50G1014T15 | Steel Tube Assembly | |
| 25 | Z50G1015T15 | Steel Tube Assembly | |
| 26 | 20491-16-04TZX 1T04AGX1965 V270° | Hose | |
| 27 | Z50G1006T15 | Tilting Cylinder | |
| 28 | 87391-24-24Z/87311-24-24ZX1T24AGX730 | Hose | |
| 29 | 87312-20-16Z/20592-42 -16TZX4SP16AGX1165 | Hose | |
| 30 | PT-3-DKL | Connector | |
| 31 | GB/T70.1-2000 | Bolt M10X100 | |
| 32 | Z50G100000001T15 | Connector | |
| 33 | GB/T3452.1-1992 | O-Ring | |
| 34 | 1DFL-42-20L125Z | Connector | |
| 35 | FL-20Z | Flange | |
| 36 | GB/T5783-2000 | Connector | |
| 37 | GB/T93-1987 | Valve | |
| 38 | GB/T6170-2000 | Nut M14 | |
| 39 | GB/T5783-2000 | Connector | |
| 40 | Z50G100000004T15 | Clip | |
| 41 | 87392-20-20Z/87312-20-20ZX4SH20AGX2010 DCN | Hose | |
| 42 | Z50G1007T15 | Tilting Cylinder | |
| 43 | 87392-16-16ZX4SP16AGX 1345 V0° STC | Hose | |
| 44 | 87392-16-16ZX4SP16AGX 1265 V90° YWES | Hose | |
| 45 | Z50G1008T15 | Tilting Cylinder | |
| 46 | Z50G1010T7 | Steel Tube Assembly | |
| 47 | Z50G1011T7 | Steel Tube Assembly | |
| 48 | 20441-16-04Z/20491-16 -04ZX1T04AGX1300 V90° | Hose | |
| 49 | 87392-16-16Z/87342-16 -16ZX4SP16AGX1360 V90°+RS YWEX | Hose | |
| 50 | 87392-16-16H130Z/87342-16 -16ZX4SP16AGX1325 V90°+RS YWEX | Hose | |
| 51 | GB/T5783-2000 | Connector | |
| 52 | GB/T93-1987 | Valve | |
| 53 | GB/T5783-2000 | Connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
