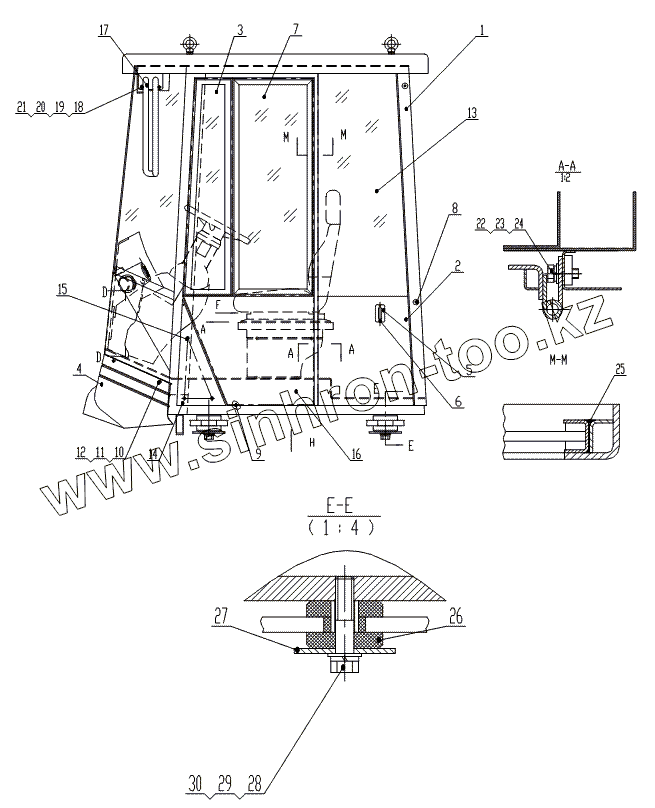

Каталог запасных частей к технике: ChengGong CG-958H. Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z50G1301T15 | Cab Body | |
| 2 | Z50G1302T15 | Adorning Assembly | |
| 3 | Z50G130000014T15 | Glass | |
| 4 | Z50G1304T15 | Boarding | |
| 5 | Z50G130000026T15 | Sheet | |
| 6 | GB/T5283-1985 | Bolt ST4.2х16 | |
| 7 | Z50G1307T15 | Glass | |
| 8 | Z50G1308T15 | Underlay | |
| 9 | Z50G130000018T15 | Glue | |
| 10 | GB/T5783-2000 | Connector | |
| 11 | GB/T93-1987 | Valve | |
| 12 | GB/T96.1-2002 | Washer 10 | |
| 13 | Z50G130000017T15 | Glass | |
| 14 | Z50G130100001T15 | Sheet | |
| 15 | M8X30GB/T68-2000 | Bolt | |
| 16 | Z50G130103T15 | Door | |
| 17 | Z50G130105T15 | Bracket | |
| 18 | GB/T5783-2000 | Connector | |
| 19 | GB/97. 1-2002 | Washer 12 | |
| 20 | GB/T93-1987 | Valve | |
| 21 | Z50G130100018T15 | Sheet | |
| 22 | GB/T5783-2000 | Connector | |
| 23 | GB/97. 1-2002 | Washer 12 | |
| 24 | GB/T93-1987 | Valve | |
| 25 | Z50G130000024T15 | Glue | |
| 26 | CB-2205-77 | Shock Absorber | |
| 27 | Z50G130000019T15 | Sheet | |
| 28 | GB/T5786-2000 | Bolt M24х2х150 | |
| 29 | GB/T93-1987 | Valve | |
| 30 | GB/T97.1-2002 | Washer 10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
