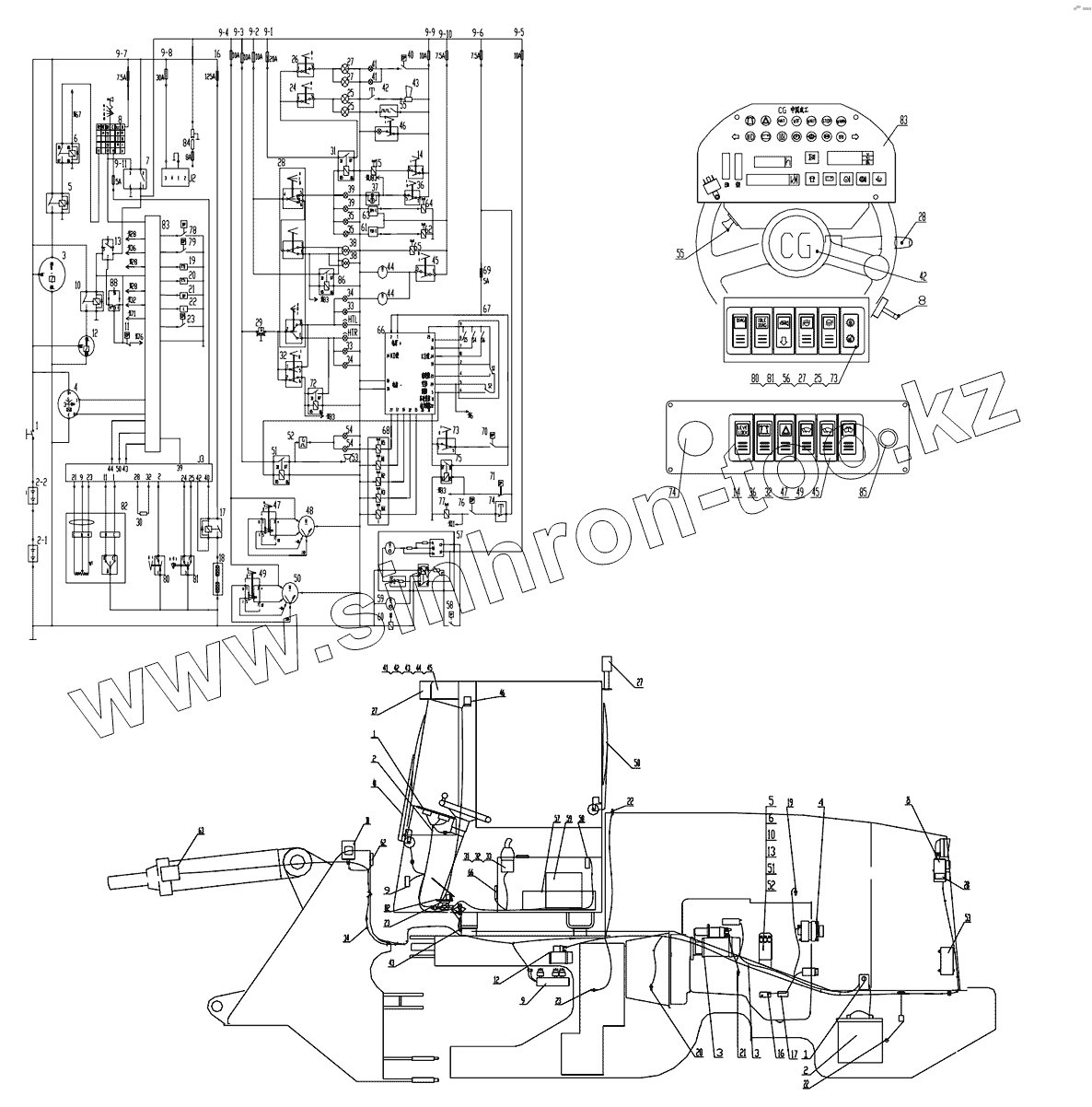

Каталог запасных частей к технике: ChengGong CG-958G. ZL50G(T7) Electrical Component

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
3
3
3
3
4
4
5
5
6
6
7
8
8
8
9
9
10
10
10
11
12
12
12
13
13
13
14
14
16
16
17
17
18
19
19
20
20
21
21
22
22
22
23
23
23
24
25
25
25
26
27
27
27
27
27
28
28
28
28
29
30
31
31
32
32
32
33
33
33
34
34
34
35
36
36
36
37
38
38
39
39
40
41
41
41
42
42
42
42
43
43
43
44
44
44
45
45
45
46
46
47
47
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
61
62
63
63
64
65
66
67
68
69
70
71
72
73
73
74
74
75
76
77
78
79
80
80
81
81
82
82
83
83
84
86
88
Позиция на иллюстрации Заводской номер детали Название детали
1 DK231 Battery disconnect SW.
2 6-QW-120B Battery
3 ST9333 Starting motor
4 EE9247 Alternator
5 MZJ-50A Steering relay
6 JQ201S-PLO Trans. Neutral Relay
7 HFS33 Chief Relay
8 JK406 Start key
9 HG4735 Fuse box
10 MZJ-50A Steering relay
11 PS61-30 Steering pressure SW.
12 Steering Motor 220116 Steering Motor
13 HF5502-2/B Time Relay
14 JK981-000 Handle lockup SW.
15 Handle lockup valve 24V Handle lockup valve
16 Grid heaters fuse 125A Grid heaters fuse
17 SB9085 Grid heaters relay
18 Grid heaters 100A/24V Grid heaters
19 Water Temp. Sensor NPT 1/2 Water Temp. Sensor
20 Oil Temp. Sensor M14X1.5 Oil Temp. Sensor
21 Engine oil pres. Sensor NPT 1/8 Engine oil pres. sensor
22 Fuel level sensor 226 801 015 001C Fuel level sensor
23 Trans. oil pres. Sensor M10X1 Trans. oil pres. sensor
24 JK981-000-3.67 Rear Light SW.
25 CG 70W Rear Light
26 JK981-000-3.67 Rear Light SW.
27 CG 70W Rear Light
28 Group lamp SW. 303A Group lamp SW.
29 JQ604 Turning Flasher
30 LS-7 Resistance
31 JQ201S-PLO Trans. Neutral Relay
32 JK9073 Emergency light SW.
33 CG 21W Front turn light
34 CG 21W Front turn light
35 Front small Light 8W Front small Light
36 JK981-000-3.40 Rotary caution light SW.
37 CG-21 10W Rotary caution light
38 CG 70W Rear Light
39 Rear small light 8W Rear small light
40 PS61-30/35barR Braking Light SW.
41 Braking Light 21W/24V Braking Light
42 JK802B Horn Button
43 DL224EG Horn
44 30W/24V Washer Motor
45 JK981-000-2.6 Washer Motor
46 CG.F1 10W Wall Light
47 JK981-045-2.5 Front Wiper SW.
48 CG50E-A Front Wiper
49 JK981-045-2.28 Rear Wiper SW.
50 CG50E-A Front Wiper
51 JQ201S-PLO Trans. Neutral Relay
52 JQ603B Backup Flasher
53 3T1815 Backup Alarm
54 Backup light 21W Backup light
55 LP01012 Cigarette Lighter
56 JK981-000 Handle lockup SW.
57 CG35H-1 Air conditioner
58 Cryogen pressure SW. Cryogen pressure SW.
59 Blower fan motor 5A/24V Blower fan motor
60 SD5H14/24V Compressor clutch valve
61 ZDTSK-1 Lift kick-out control
62 Lift kick-out valve 24V Lift kick-out valve
63 ZDSPK-1 Bucket positioned control
64 Bucket positioned valve 24V Bucket positioned valve
65 Lift floating valve 24V Lift floating valve
66 EST-17TE/ZF200 Transmission control
67 DW-2/ZF200 Shift handle
68 ZF200 Transmission Sol. group
69 Fuse 5A Fuse
70 PS61-50/ 35bar Trans. downshift SW.
71 PS61-50/ 69bar Parking brake SW.
72 JQ201S-PLO Trans. Neutral Relay
73 JK981-000-4.66/4.67 Downshift selector
74 ZB2BS64+BZ102 Parking Brake Button
75 JQ201S-PLO Trans. Neutral Relay
76 PS61-30/ 69bar Urgency Brake SW.
77 GSO23300 Parking Brake Valve
78 PS61-50/ 103bar Brake low pres. SW.
79 CY-II/0.35Mpa HOF clog SW.
80 JK981-000 Handle lockup SW.
81 JK981-066 Fault turn page SW.
82 WM526 Primary throttle
83 DJC-10-50Gh EMC.
84 CZ-315 Socket
86 JQ201S-PLO/30A F-N working light relay
87 JK981-007-X.X Secondary Steering SW.
88 AH3-2OD(PF085A) Timer relay
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
