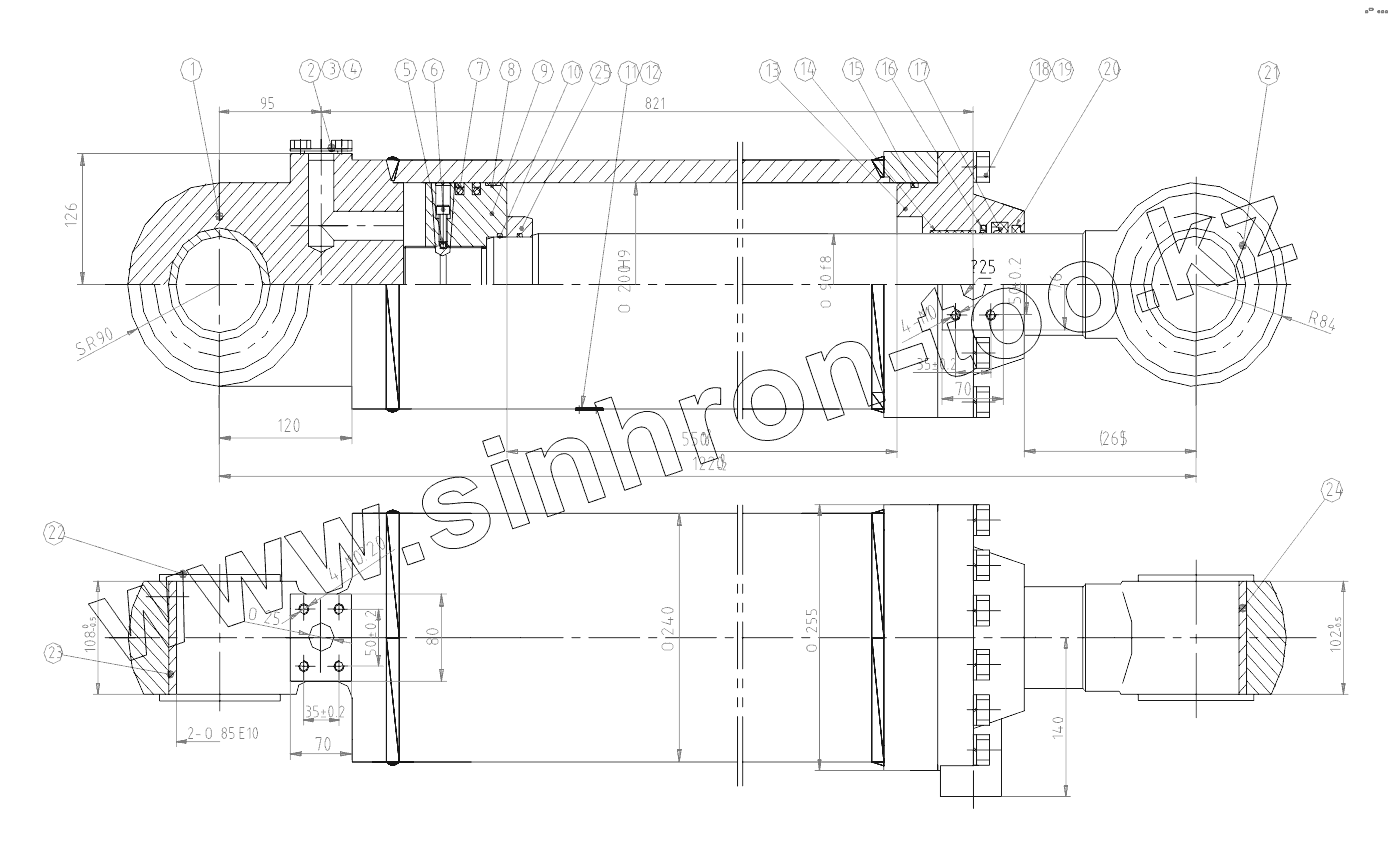

Каталог запасных частей к технике: ChengGong CG-956G. CF200X90/550EE Tilting Cylinder Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CF200X90/550ER/E-01A | Cylinder | |
| 2 | G025 | Plug d25 | |
| 3 | G015 | Cover 50X35X11 | |
| 4 | GB5781-86 | Bolt M16X35 | |
| 5 | GB/T308 | Steel ball d5 | |
| 6 | GB/T70-1 | Bolt | |
| 7 | RB132 | Seal CKW0900 | |
| 8 | RB132 | Seal CKW0900 | |
| 9 | RB501 | Piston | |
| 10 | GB/T3452-1 | O-ring | |
| 11 | G028 | Scutcheon | |
| 12 | GB/T827 | Rivet 2X4 | |
| 13 | CF200X90/550EE-G01 | Cylinder cover | |
| 14 | RB132 | Seal CKW0900 | |
| 15 | GB/T3452-1 | O-ring | |
| 16 | RB132 | Seal CKW0900 | |
| 17 | GB/T10708-1 | Y-ring | |
| 18 | GB5785 | Bolt | |
| 19 | GB/T93 | Washer 18 | |
| 20 | LBW09001 | Ring 90X100X8 | |
| 21 | CL200X90/565EE-03 | Piston haulm | |
| 22 | G016 | Cover d75 | |
| 23 | CL200X90/565EE-04 | Bushing | |
| 24 | CL200X90/565EE-05 | Bushing | |
| 25 | CL200X90/565EE-06 | Amortize ringer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
