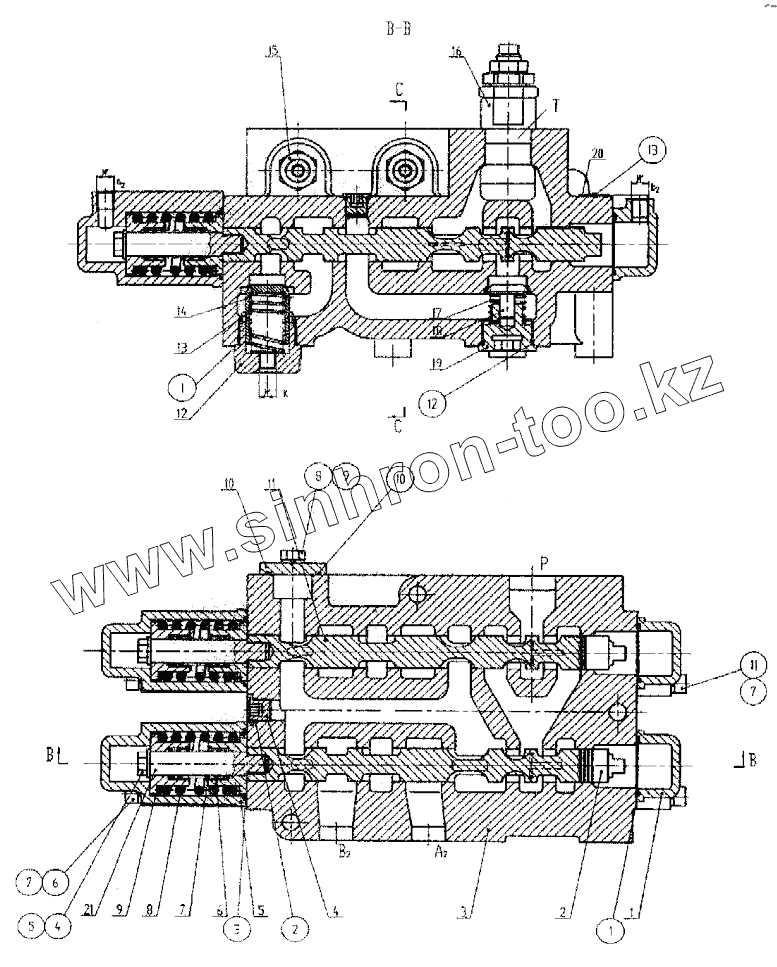

Каталог запасных частей к технике: ChengGong CG-956C. D32 Multi-way valve
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
(1)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | D32-1 | Cover | |
| 2 | D32-2 | Valve-pole | |
| 3 | D32-3 | Valve-style | |
| 4 | D32-4 | Stuff | |
| 5 | D32-5 | Cover | |
| 6 | D32-6 | Washer | |
| 7 | D32-7 | Spring | |
| 8 | D32-8 | Spring | |
| 9 | D32-9 | Washer | |
| 10 | D32-11 | Cover | |
| 11 | D32-12 | Valve-pole | |
| 12 | D32-13 | Cover | |
| 13 | D32-14 | Spring | |
| 14 | D32-15 | Valve | |
| 15 | D32.1-00 | Valve | |
| 16 | D32.2а-00 | Valve | |
| 17 | D32-16 | Spring | |
| 18 | D32-17 | Valve | |
| 19 | D32-19 | Cover | |
| 20 | D32-20 | Sign | |
| 21 | D32-21 | Spring | |
| (1) | GB1235-76 | O-Ring 16x2.4 | |
| (2) | GB1235-76 | O-Ring 16x2.4 | |
| (3) | GB1235-76 | O-Ring 16x2.4 | |
| (4) | GB97.1-85 | Washer 6 | |
| (5) | GB30-76 | Bolt | |
| (6) | GB70-85 | Screw M12x80 | |
| (7) | GB93-87 | Washer 8 | |
| (8) | GB93-87 | Washer 8 | |
| (9) | GB30-76 | Bolt | |
| (10) | GB1235-76 | O-Ring 16x2.4 | |
| (11) | GB70-85 | Screw M12x80 | |
| (12) | GB1235-76 | O-Ring 16x2.4 | |
| (13) | GB827-86 | Rivet d3x4 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
