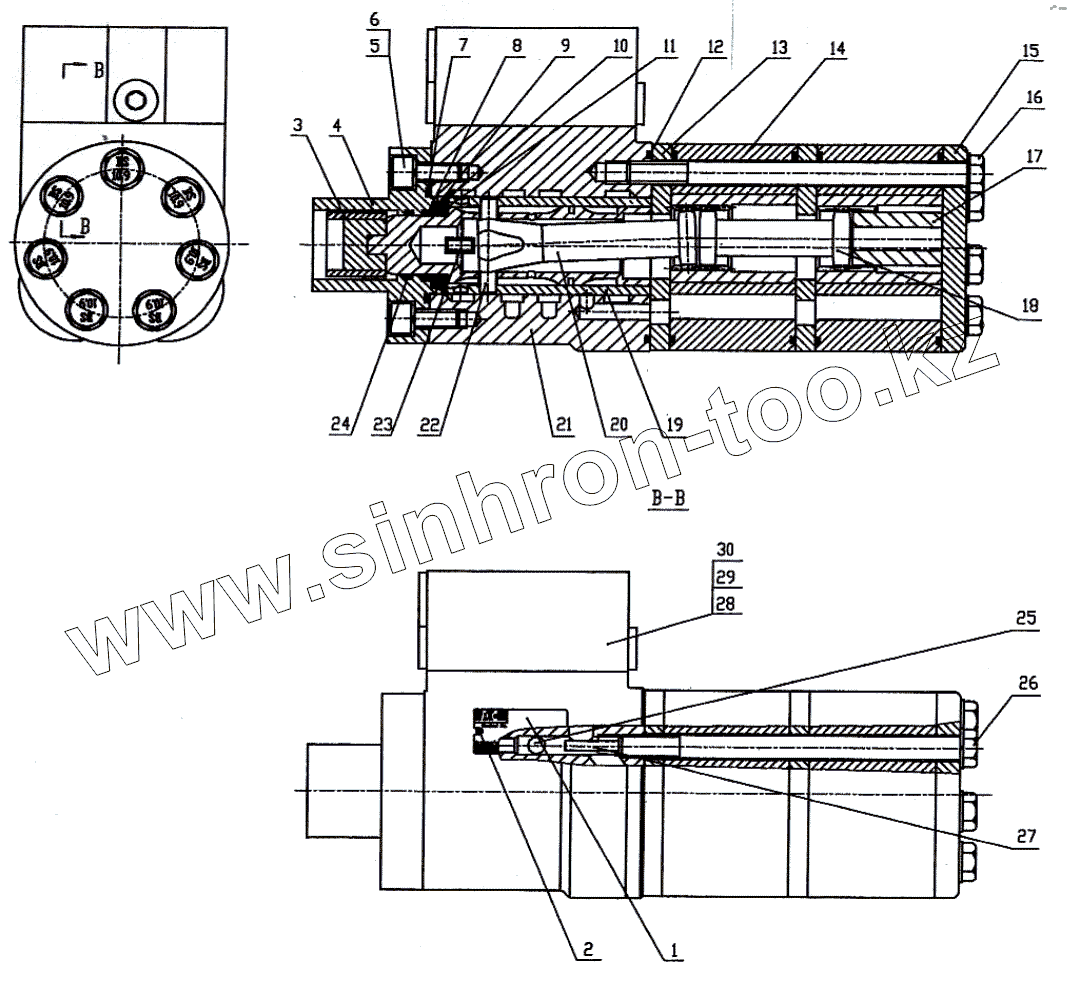

Каталог запасных частей к технике: ChengGong CG-938H. Steering Unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Nameplate | Nameplate | |
| 2 | Rivet | Rivet | |
| 3 | Block Assembly | Block Assembly | |
| 4 | Front Cover | Front Cover | |
| 5 | Screw | Screw | |
| 6 | Washer | Washer | |
| 7 | O-Ring | O-Ring | |
| 8 | Seal | Seal | |
| 9 | Ring | Ring | |
| 10 | Ball Bearing | Ball Bearing | |
| 11 | Ring | Ring | |
| 12 | O-Ring | O-Ring | |
| 13 | Wear Plate | Wear Plate | |
| 14 | Gerotor Ring and star | Gerotor Ring and star | |
| 15 | Rear Cover | Rear Cover | |
| 16 | Bolt | Bolt | |
| 17 | Spacer | Spacer | |
| 18 | Drive I | Drive I | |
| 19 | Spool and Cover | Spool and Cover | |
| 20 | DriveII | DriveII | |
| 21 | Valve Body | Valve Body | |
| 22 | Pin | Pin | |
| 23 | Reed | Reed | |
| 24 | O-Ring | O-Ring | |
| 25 | Steel Sphere | Steel Sphere | |
| 26 | Spring | Spring | |
| 27 | Pin | Pin | |
| 28 | Valve | Valve | |
| 29 | Screw | Screw | |
| 30 | O-Ring | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
