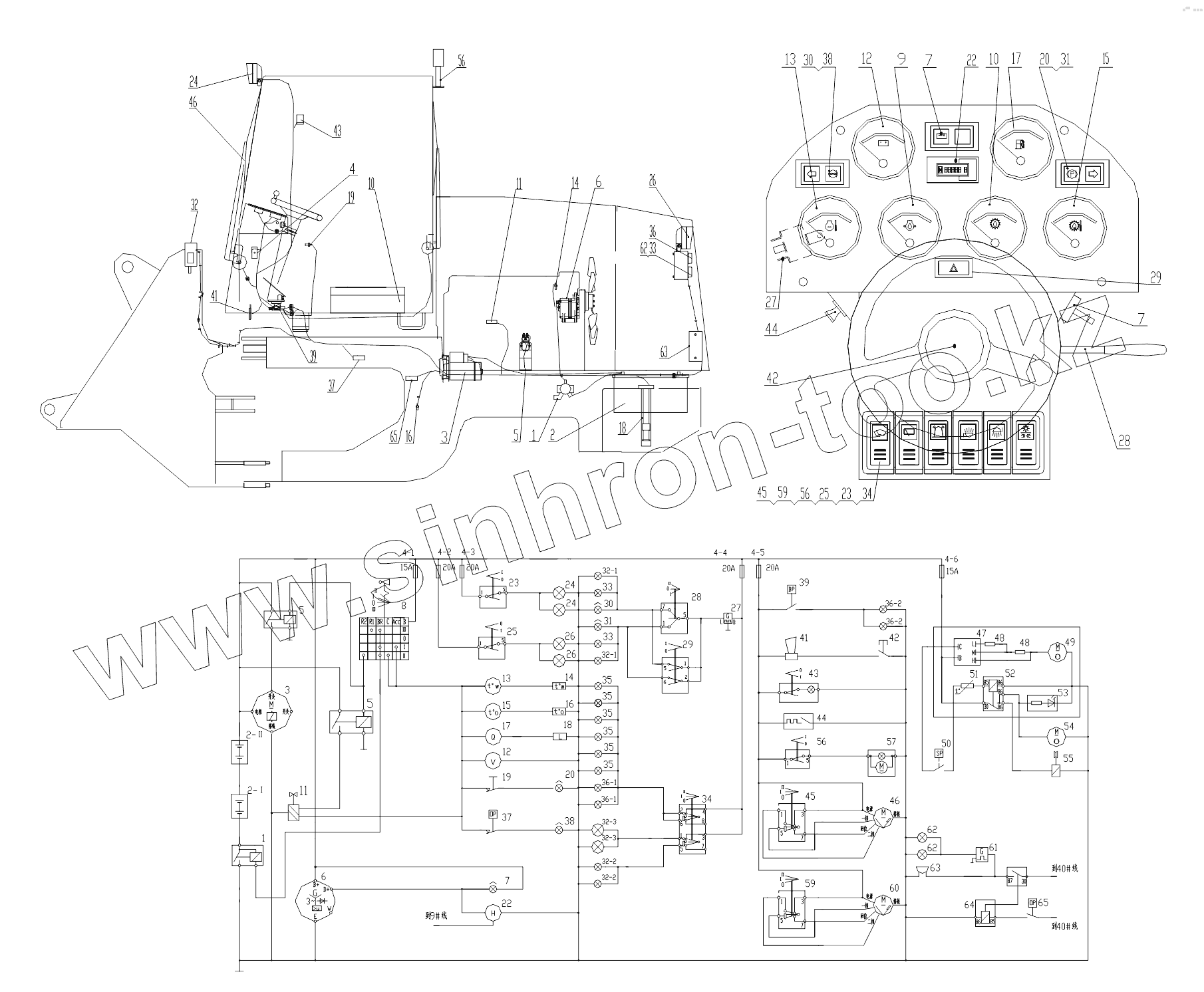

Каталог запасных частей к технике: ChengGong CG-935H. Z35H15T13 Electrical Element
1
1
2
3
3
4
5
5
5
6
6
7
7
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
22
22
23
23
24
24
24
25
25
26
26
26
27
27
28
28
29
29
30
30
31
31
32
33
33
33
34
34
35
35
35
35
35
35
36
37
37
38
38
39
39
41
41
42
42
43
43
44
44
45
45
46
46
47
48
48
49
50
51
52
53
54
55
56
56
56
57
59
59
60
61
62
62
62
63
63
64
65
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DK231 | Battery disconnect SW. | |
| 2 | 6-QW-120B | Battery | |
| 3 | QD274/6.6KW | Starting motor | |
| 4 | HG4735 | Fuse box | |
| 5 | MZJ-50A/006 | Start Relay | |
| 6 | JFZ2904/45A | Alternator | |
| 7 | LED/24V | Indicator | |
| 8 | JK406 | Start key | |
| 9 | YT-2/0-1.0Mpa | Engine oil pressure gauge | |
| 10 | YT-2/0-3.2Mpa | Trans. oil pressure gauge | |
| 11 | 1756ES/24V | Shutdown Valve | |
| 12 | DV-2/18-32V | Voltmeter | |
| 13 | DW-2/40-120C | Coolant Temp. Gauge | |
| 14 | WG-2 | Temp. Sensor | |
| 15 | DW-2/40-140C | TC. Oil Temp. Gauge | |
| 16 | WG-2 | Temp. Sensor | |
| 17 | DR-2 | Oil Level gauge | |
| 18 | RG-4/330mm | Fuel level sensor | |
| 19 | WK-3 | Braking | |
| 20 | 2.32/24VLED | Hand brake indicator | |
| 22 | 701DN001 | Engine hour meter | |
| 23 | JK981-000-3.67 | Rear Light SW. | |
| 24 | CG70W | Working lamp | |
| 25 | JK981-000-3.67 | Rear Light SW. | |
| 26 | CG70W | Working lamp | |
| 27 | JQ603B | Backup Flasher | |
| 28 | JK700 | Turn signal switch | |
| 29 | JK981-196-2.4 | Hazard warning lamp SW. | |
| 30 | 3.2/24VLED | Turn left light indicator | |
| 31 | 3.3/24VLED | Turn right light indicator | |
| 32 | 70W/8W/21W | Combination headlamp | |
| 33 | 21W/24V | Rear turn lamp | |
| 34 | JK981-090-5114 | Headlamp/side light switch | |
| 35 | 2W/24V | Instrument panel lamp | |
| 36 | 21W+8W/24V | Combination tail lamp | |
| 37 | 32-580-042 | Low brake pressure switch | |
| 38 | 11.2/24VLED | Low brake pressure indi. | |
| 39 | JN150 | Braking Light | |
| 41 | DL-224EG | Horn | |
| 42 | Electrichornbutton | Electric horn button | |
| 43 | DZ068/10W | Ceiling lamp | |
| 44 | 24V/5W | Cigarette Lighter | |
| 45 | JK981-045-2.5 | Front Wiper SW. | |
| 46 | CG30E-B | Wiper | |
| 47 | AirconditionerSW | Air conditioner SW | |
| 48 | Rheostat | Rheostat | |
| 49 | Fanmotor | Evaporator fan motor | |
| 50 | CryogenPressure | Cryogen Pressure SW | |
| 51 | TemperatureControl | Temperature Control | |
| 52 | JQ201S-FLO40A | Air conditioner relay | |
| 53 | LED/24V | Indicator | |
| 54 | CondenserFan | Condenser Fan | |
| 55 | SD5H14/24V | Compressor clutch valve | |
| 56 | JK981-000-3.40 | Rotary caution light SW. | |
| 57 | CG21-10W | Emergency warning lamp | |
| 59 | JK981-045-2.28 | Rear Wiper SW. | |
| 60 | CG30E-B | Wiper | |
| 61 | JQ603B | Backup Flasher | |
| 62 | 10W/24V | Back-up lamp | |
| 63 | 3T1518 | Back-up buzzer | |
| 64 | JQ201S-PLO | Trans. Neutral Relay | |
| 65 | PS61 | Back-up pressure switch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
