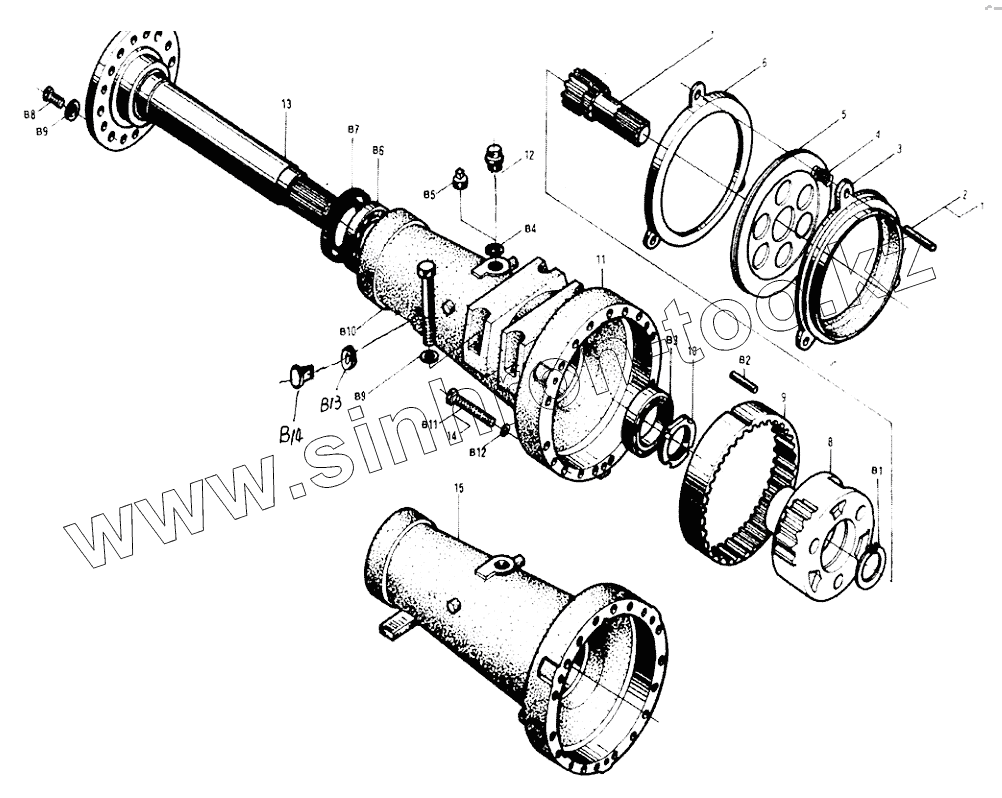

Каталог запасных частей к технике: ChengGong CG-935H. Z35H05 Rear Axle (I), Z40F06 Front Axle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
B1
B2
B3
B4
B5
B6
B7
B8
B9
B9
B10
B11
B12
B13
B14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB119-86 | Pin A12x120 | |
| 2 | GB119-86 | Pin A12x120 | |
| 3 | Z30060000006 | Piston | |
| 4 | Z30060000008 | Spring | |
| 5 | Z35F0602 | Brake Disc | |
| 6 | Z30060000005 | Axle | |
| 7 | Z30060000007 | Sun Gear | |
| 8 | Z300602 | Hub Reducer | |
| 9 | Z30060000004 | Inner Gear Ring | |
| 10 | Z30060000003 | Nut | |
| 11 | Z30060000002 | Axle Case | |
| 12 | Z300605 | Connector | |
| 13 | Z30060000001 | Half Shaft | |
| 14 | Z30060000009 | Bolt | |
| 15 | Z30050000001 | Axle Case | |
| B1 | GB894.1-86 | Snap Ring 75 | |
| B2 | GB120-86 | Pin B12x55 | |
| B3 | GB297-93 | Bearing 32018 | |
| B4 | CG325-80 | Washer 33 | |
| B5 | CG326-80 | Plug M33x2 | |
| B6 | GB297-93 | Bearing 32018 | |
| B7 | GB13871-92 | Seal Ring FB150x180 | |
| B8 | GB5786-86 | Bolt M24x2x50 | |
| B9 | GB97.2-85 | Washer 16 | |
| B10 | GB5785-86 | Bolt M24x2x180 | |
| B11 | GB5785-86 | Bolt M24x2x180 | |
| B12 | GB97.2-85 | Washer 16 | |
| B13 | JB982-77 | Washer 14 | |
| B14 | CG302.12-95 | Plug M33X2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
