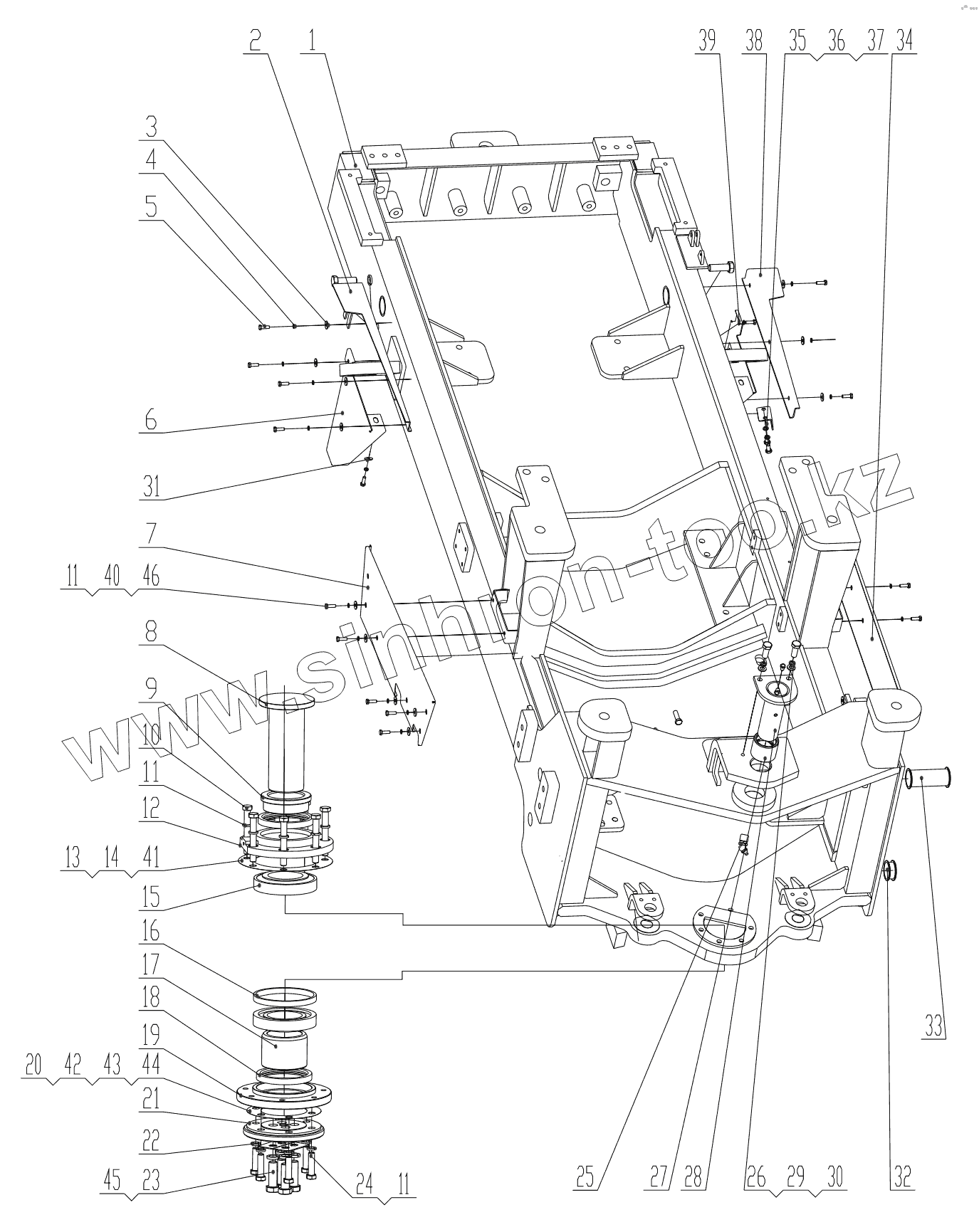

Каталог запасных частей к технике: ChengGong CG-932H. Z33E12T35 Frame Group

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

11

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Z33E1210T35		Rear Frame
2	Z33E1215T7		board
3	GB/T96. 1-2002		Washer 8
4	GB/T93-1987		Valve
5	GB/T5783-2000		Connector
6	Z33E120000017		board
7	Z33E120000013T7		Right Surrounding Plate
8	Z33E120000003		Lower Pin Shaft
9	Z30120000013		Snap Ring
10	GB/T5782-2000		Bolt
11	GB/T 93-1987		Washer
12	Z30120000014		Bearing Cover
13	Z40H120000008		Adjusting Shim
14	Z40H120000009		Adjusting Shim
15	GB/T 297-1994		Bearing30214
16	Z33E120000001		Snap Ring
17	Z33E120000004		Snap Ring
18	GB/T13871-1992		Oil Seal
19	Z33E120000002T7		Lower Bearing Cover
20	Z40H120000012		Adjusting Shim
21	Z33E120000007		Hole Plate
22	Z40H120000011		Thrust Washer
23	GB/T5783-2000		Connector
24	GB/T5783-2000		Connector
25	Z5E3120000003T16		Oil Cup
26	GB/T 97.1-2002		Washer
27	Z3BII120000004		Bush
28	Z30B1213T48		Upper Hinge Pin
29	GB/T93-1987		Valve
30	GB/T5783-2000		Connector
31	Z33E120000020T35		Washer
32	Z33E120000034		Rubber band
33	Z33E120000035		Rubber band
34	Z33E120000012T7		Left Surrounding Plate
35	Z33E120000028T8		base
36	GB/T93-1987		Valve
37	GB/T5783-2000		Connector
38	Z33E1214T7		Board
39	Z33E120000014		Board
40	GB/T96.1-2002		Washer 10
41	Z40H120000010		Adjusting Shim
42	Z40H120000013		Adjusting Shim
43	Z40H120000014		Adjusting Shim
44	Z40H120000015		Adjusting Shim
45	GB/T93-1987		Valve
46	GB/T5783-2000		Connector

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
