Каталог запасных частей к технике: ChengGong CG-932H. Z33E06T23 Front Axle

Тип техники

Марка

Модель

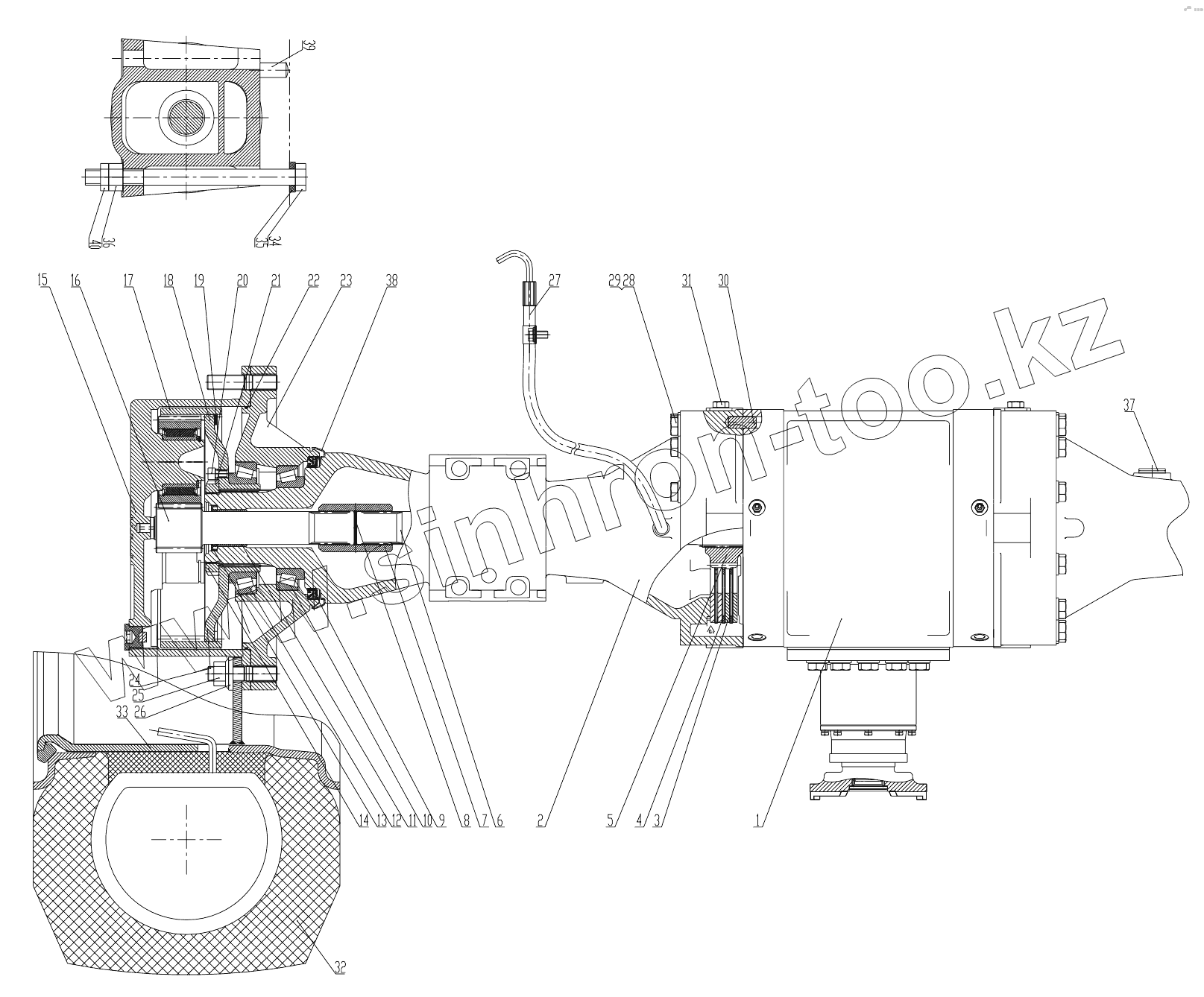

Схема

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

24

25

25

26

26

26

26

27

28

29

30

31

32

32

33

34

35

36

37

38

39

40

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Z33E0601T23		Rear Axle Differential
2	Z33E060000001T2		Axle Case
3	Z33E060000003T2		Driven Piece
4	Z33E0605T2		Drive Piece
5	Z33E060000006T2		Spline Bushing
6	Z33E060000007T2		Half Shaft
7	Z33E060000008T2		Spline Bushing
8	GB/T893.1-1986		Snap Ring
9	Z33E0603T23		Oil Seal 165X195X14.5/16
10	GB/T297-1994		Bearing
11	Z33E060000009T2		Bushing
12	GB/T297-1994		Bearing
13	GB/T13781-1992		Oil Seal
14	Z33E060000010T2		Nut
15	Z33E0602T2		Hub Reducer
16	Z33E060000011T2		Sun Gear
17	Z33E060000012T2		Ring Gear
18	Z33E060000013T2		Support Disk
19	Z33E060000014T2		Snap Ring
20	GB/T70. 1-2000		Bolt M12X30
21	Z33E060000015T2		Gasket
22	Z33E060000016T2		O-Ring
23	Z33E060000017T2		Rim
24	Z33E060000020T2		Bolt
24	Z33E060000002T2		Bolt
25	Z33E060000018T2		Nut
25	Z33E060000021T2		Nut M20X1.5
26	Z33E060000004T2		Washer
26	Z33E060000022T2		Washer
27	Z33E0602T23		Windpipe
28	GB/T97. 2-2002		Washer 16
29	GB/T5785-2000		Bolt
30	GB/T119.1-2000		Pin
31	4MN-22WD		Plug М22Х1. 5
32	Tyre 17.5-25-12PR		Tyre 17.5-25-12PR
32	Tyre 17.5-25-12PRL-3		Tyre 17.5-25-12PRL-3
33	CQ07D-01E		Steel Ring
34	GB/T5785-2000		Bolt
35	Z33E060000005T2		Washer
36	DTF-CO		Nut
37	S4HN-30 (SC05)		Plug M30X2
38	Z33E060000019T2		Dust Coul
39	GB/T119.2-2000		Pin
40	GB/T6173-2000		Nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
