Steering System

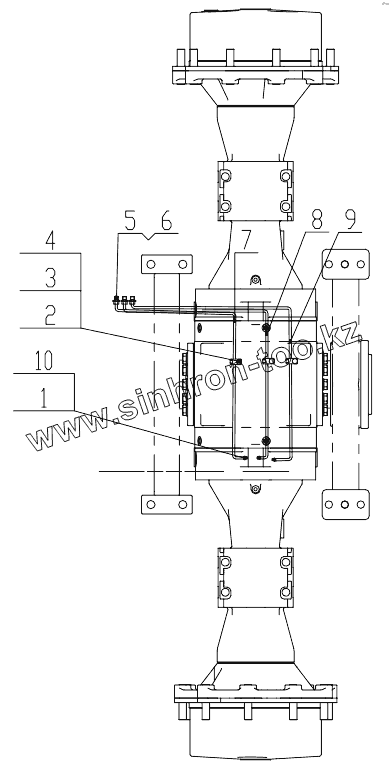

Z33E08T34 Steering System;Rear Axle Lubrication Piping
Z33E08T34 Steering System;Cylinder Lubrication Piping
Z33E08T34 Steering System, Shift Valve Lubrication Piping
Z33E08T34 Steering System;Rear Frame Oil Piping
Z33E0801T34 Steering Pump Assembly
CBQ-F550FJL-CG1 Steering Pump
Z33E0802T34 Flow Valve Assembly
FLD-F48W Flow Valve
Z33E0803T34 Steering Unit Assembly
BZZ1-E630C+FKA-156020D Steering Unit
CG932H80/45 Steering Cylinder
Z33E09T35 Braking System (Front and rear axle brake piping system)
Z33E09T35 Braking System (Brake intake pipe system one)
Z33E0902 Gas Storage Canister Assembly
Z33E0902T34 Oil Water Separator Assembly
SH380D-3511001A Oil Water Separator
HP3512D Oil Water Separator
Z33E09T35 Braking System (Brake intake pipe system 2)
Z33E0901T11 Pedal Break Valve Assembly
Z33E090101T11 Left Pedal Break Valve
Z33E090102T11 Right Pedal Break Valve
HP3514AB1 Pedal Breaking Valve
SLZD (CD)Pedal Brake Valve
Z33E09T35 Braking System (Front booster pipeline)
Z33E0903T34 Assistor Assembly
Z33E09T35 Braking System (Rear booster and hand brake)
Z33E0905 Manual Braking Assembly
LJ112FA1655 Manual Braking
Z33E0904T34 Assistor Assembly
SG50(CG)-3510002 Assistor
Z33E10T35 Implement Hydraulic System
Z33E10T35 Implement Hydraulic System
Z33E1001T23 Oil Tank
Z33E1009T23 Hose Assembly
Z33E1002T24 Oil Tube Assembly
Z33E10T35 Implement Hydraulic System
Z33E1007(6)T35 Steel tube assembly
Z33E10T35 Implement Hydraulic System
Z33E1004T35 Pilot Hydraulic System
Z33E100402T9 Pilot Valve
Z33E100401T35 Selector Valve
Z62H100301 Valve Assembly
Z33E1003T35 Multi-Way Valve
Z33E1001T34 Oil system Assembly
Z33E1005T35 Tilting Cylinder Assembly
Z33E1004T7 Left Lift Cylinder Assembly
Z33E1008T7 Right Lift Cylinder Assembly
Z33E-CD-00 Tilting Cylinder
CG933E120/70H.00 Lift Cylinder
JHP2090/Gj0016-XF Pump
D32-00 Multi way valve
D32-00(JZ) Multi way valve
DXS-00(CKK) Pilot Valve
JZDXF-00 Pilot Operated Valve
SF8-00 Selector Valve
SFM-679A Filter Net
YLX-341-00 Filter Net
Z33E11T23 Rear Drive Shaft
Z33E1101T23 Rear Drive Shaft
Z33E12T35 Frame Group
Z33E12T35 Frame Group
Z33E12T35 Frame Group
Z33E1209T35 Frame Group
Z33E1209T35 Frame Group
Z33E13T35 Cab
Z33E13T35 Cab
Z33E13T35 Cab
Z5E21307T31 Instrument Assembly
Z33E1304 Steering Wheel
Z33E1305T9 Box
Z30B1302T51 Foam Assembly
Z33E13T48 Cab
Z33E13T48 Cab
Z33E13T48 Cab
Z5E21307T31 Instrument Assembly
Z33E1304 Steering Wheel
Z33E1305T9 Box
Z33E1302T48 Foam Assembly
Z33E14T24 Implement
Z33E14T24 Implement
Z33E14T24 Implement
Z33E14T24 Implement
Z33E15T35 Vehicle Circuitry
Z33E15T35 Cab Circuitry
Z33E15T35 Panel Assembly
Z33E15T35 Battery Wiring
Z33E15T35 Front Lamp Circuitry
Z33E15T35 Rear Lamp Circuitry
Z33E16T35 Machine Guard
Z33E17T35 Air-conditioner System
Z33E17T48 Air-conditioner System Cab (FOPS/ROPS)
CGY30 Condenser Assembly
DJC-CGA-00100 CGA Evaporator Assembly
DJC-CGA5-00100 CGA Evaporator Assembly Cab (FOPS/ROPS)
Z33E19T9 Lift-arm support devices
008.1X1.6
004.5X1.5
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
008.1X1.6
008.1X1.6
O-Ring
004.5X1.5
004.5X1.5
O-Ring
1
1QH-12C-10L44/LN
Connector
2
ТС I -06
Clip
3
GB/T5783-2000
Connector
4
GB/T93-1987
Valve
5
5QM-12C-10L44/LN
Connector
6
JB/T7940. Ы995
Oil Cup M10X1
7
Z33E0801T8
Lubricate-tube
8
Z33E0802T8
Lubricate-tube
9
Z33E0803T8
Lubricate-tube
10
2C9-12Z
Connector
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
