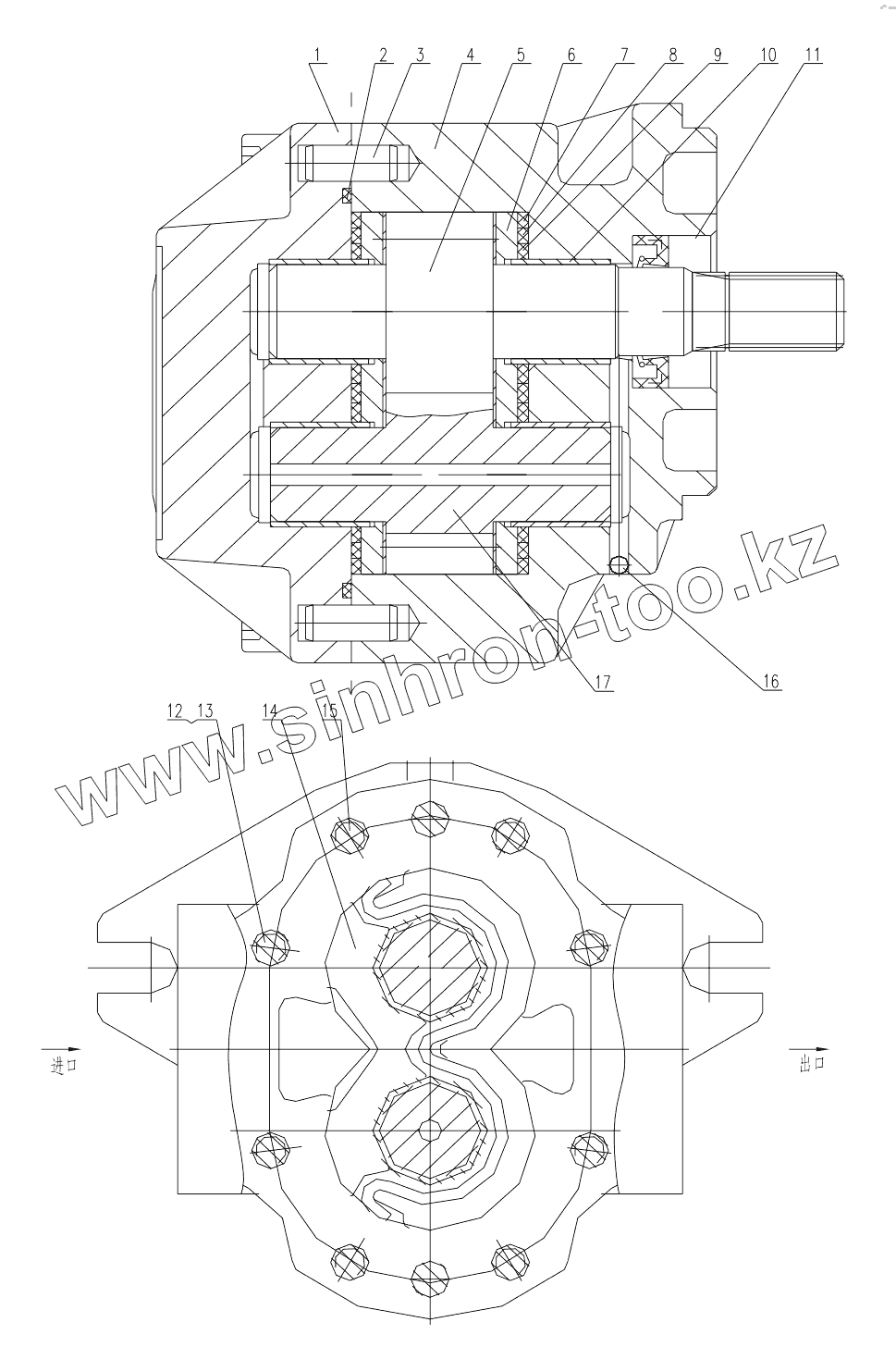

Каталог запасных частей к технике: ChengGong CG-932H. CBQ-F550FJL-CG1 Steering Pump

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CG-932H (2014) CG-932H (2014) CG-935G (2006) CG-935H (2014) CG-938H (2006) CG-956C (2014) CG-956G (2014) CG-958G (2006) CG-958H (2006)

Схема > Не выбрано Z33E01T47 Engine Assembly Z33E0101T34 Fuel Tank Z33E0102T39 Cooling System Z33E0103T39 Outlet Hose Z33E0107T39 Inlet Hose Z33E0106T39 Exhaust System Z33E0105T7 Pedal Control Assembly Z33E0105T47 Compressor Assembly Z30B02T38 Torque Converter Z33E03T34 Transmission Z33E0301T7 Combining Gear Set Z33E030101T7 Powe Shift Pump Z3BII030102 Exceed Clutch Z3BII030104 Breather Z3BII0303 Reverse-Range Plate Z3BII0304 Friction Disks Assmebly Z3BII0305 lst-Range Plate Z3BII0306 lst-Range Gear Assembly Z3BII0307 2nd-Range Cylinder Assembly Z33E0304T23 Flange Subassembly Z3BII0311 Driving Gear-2nd Forward Z30B0305T38 Bracket Z33E0302T23 Suction Line Assembly Z33E0303T23 Filler Pipe Assembly Z33E0303 Handle-brake Assembly Z33E04T35 Transmission Oil Line And Control System Z33E0401T35 Valve Assembly Z3BII0407 Speed Selector Valve Z33E0402T35 Filter Assembly 00027200 Filter LJ134B10AxL2300A Control Links Z33E05T23 Rear Axle Z33E0501T23 Front Axle Differential Z33E060101T2 Differential Z33E0602T2 Hub Reducer Z33E0502T2 Front Support Carrier Z33E0503T2 Rear Support Carrier Z33E06T23 Front Axle Z33E0601T23 Front Axle Differential Z33E07T23 Front Drive Shaft Z33E0701T23 Front Drive Shaft 233Е0702Т23 Middle Drive Shaft Z33E0703T23 Middle Support Shaft Steering System Z33E08T34 Steering System;Rear Axle Lubrication Piping Z33E08T34 Steering System;Cylinder Lubrication Piping Z33E08T34 Steering System, Shift Valve Lubrication Piping Z33E08T34 Steering System;Rear Frame Oil Piping Z33E0801T34 Steering Pump Assembly CBQ-F550FJL-CG1 Steering Pump Z33E0802T34 Flow Valve Assembly FLD-F48W Flow Valve Z33E0803T34 Steering Unit Assembly BZZ1-E630C+FKA-156020D Steering Unit CG932H80/45 Steering Cylinder Z33E09T35 Braking System (Front and rear axle brake piping system) Z33E09T35 Braking System (Brake intake pipe system one) Z33E0902 Gas Storage Canister Assembly Z33E0902T34 Oil Water Separator Assembly SH380D-3511001A Oil Water Separator HP3512D Oil Water Separator Z33E09T35 Braking System (Brake intake pipe system 2) Z33E0901T11 Pedal Break Valve Assembly Z33E090101T11 Left Pedal Break Valve Z33E090102T11 Right Pedal Break Valve HP3514AB1 Pedal Breaking Valve SLZD (CD)Pedal Brake Valve Z33E09T35 Braking System (Front booster pipeline) Z33E0903T34 Assistor Assembly Z33E09T35 Braking System (Rear booster and hand brake) Z33E0905 Manual Braking Assembly LJ112FA1655 Manual Braking Z33E0904T34 Assistor Assembly SG50(CG)-3510002 Assistor Z33E10T35 Implement Hydraulic System Z33E10T35 Implement Hydraulic System Z33E1001T23 Oil Tank Z33E1009T23 Hose Assembly Z33E1002T24 Oil Tube Assembly Z33E10T35 Implement Hydraulic System Z33E1007(6)T35 Steel tube assembly Z33E10T35 Implement Hydraulic System Z33E1004T35 Pilot Hydraulic System Z33E100402T9 Pilot Valve Z33E100401T35 Selector Valve Z62H100301 Valve Assembly Z33E1003T35 Multi-Way Valve Z33E1001T34 Oil system Assembly Z33E1005T35 Tilting Cylinder Assembly Z33E1004T7 Left Lift Cylinder Assembly Z33E1008T7 Right Lift Cylinder Assembly Z33E-CD-00 Tilting Cylinder CG933E120/70H.00 Lift Cylinder JHP2090/Gj0016-XF Pump D32-00 Multi way valve D32-00(JZ) Multi way valve DXS-00(CKK) Pilot Valve JZDXF-00 Pilot Operated Valve SF8-00 Selector Valve SFM-679A Filter Net YLX-341-00 Filter Net Z33E11T23 Rear Drive Shaft Z33E1101T23 Rear Drive Shaft Z33E12T35 Frame Group Z33E12T35 Frame Group Z33E12T35 Frame Group Z33E1209T35 Frame Group Z33E1209T35 Frame Group Z33E13T35 Cab Z33E13T35 Cab Z33E13T35 Cab Z5E21307T31 Instrument Assembly Z33E1304 Steering Wheel Z33E1305T9 Box Z30B1302T51 Foam Assembly Z33E13T48 Cab Z33E13T48 Cab Z33E13T48 Cab Z5E21307T31 Instrument Assembly Z33E1304 Steering Wheel Z33E1305T9 Box Z33E1302T48 Foam Assembly Z33E14T24 Implement Z33E14T24 Implement Z33E14T24 Implement Z33E14T24 Implement Z33E15T35 Vehicle Circuitry Z33E15T35 Cab Circuitry Z33E15T35 Panel Assembly Z33E15T35 Battery Wiring Z33E15T35 Front Lamp Circuitry Z33E15T35 Rear Lamp Circuitry Z33E16T35 Machine Guard Z33E17T35 Air-conditioner System Z33E17T48 Air-conditioner System Cab (FOPS/ROPS) CGY30 Condenser Assembly DJC-CGA-00100 CGA Evaporator Assembly DJC-CGA5-00100 CGA Evaporator Assembly Cab (FOPS/ROPS) Z33E19T9 Lift-arm support devices

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	C398101		Rear Cover
2	GB/T1235-1976		O-Ring Seal 22X24
3	GB/T119.1-2000		Pin
4	C398102		Pump
5	C398103		Ger
6	C401105		Plate
7	C401106		Seal
8	C401107		Seal
9	C401108		Seal
10	C401110		lantern ring
11	GB/T9877.1-1988		Seal
12	GB/T70-2000		Screw
13	GB/T93-1987		Valve
14	C401111		Flake

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
