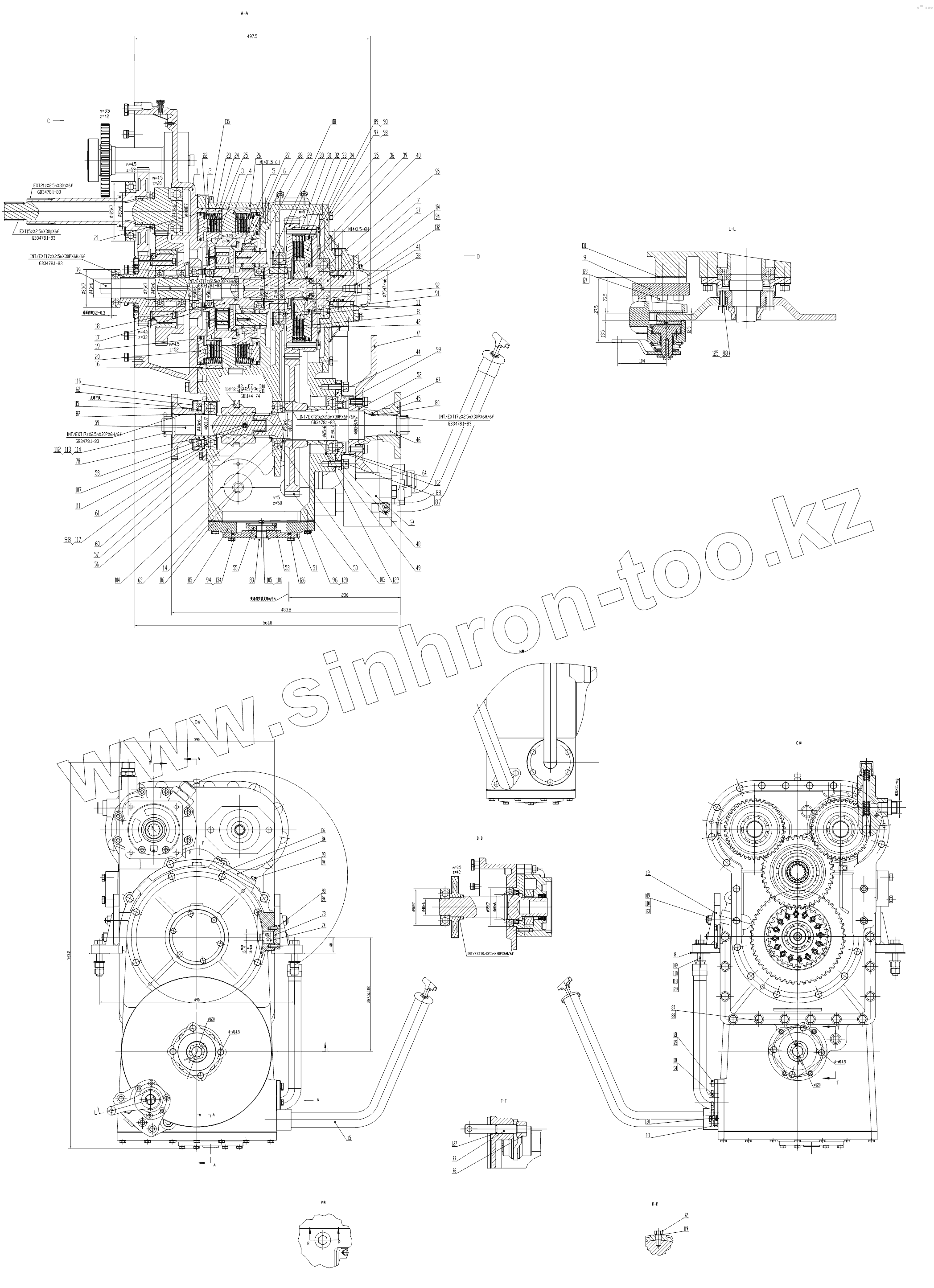

Каталог запасных частей к технике: ChengGong CG-932H. Z33E03T8 Transmission
1
2
3
4
5
6
7
8
9
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50
51
52
53
55
56
57
58
59
60
61
62
63
64
67
72
73
74
76
77
78
79
80
81
82
83
84
85
86
87
87
88
88
88
89
90
91
92
93
93
94
94
94
94
94
95
96
97
98
98
99
102
103
104
105
106
107
109
109
110
110
111
112
113
114
115
116
117
118
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
134
134
135
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z33E0301T7 | Combining Gear Set | |
| 2 | Z3BII0302 | DrivingDisk-1st Reverse | |
| 3 | Z3BII0303 | Reverse-Range Plate | |
| 4 | Z3BII0304 | Friction Disks Assmebly | |
| 5 | Z3BII0305 | 1st-Range Plate | |
| 6 | Z3BII0306 | 1st-Range Gear Assembly 2st-Range | |
| 7 | Z3BII0307 | Cylinder Assembly | |
| 8 | Z3BII0308 | Driving Disk-2nd Forward | |
| 9 | Z33E0303 | Handle-brake Assembly | |
| 11 | Z3BII0311 | Driving Gear-2nd Forward | |
| 12 | Z3BII0312 | Bracket | |
| 13 | Z33E0302T7 | Suction Line Assembly | |
| 14 | Z3BII0314 | Filter | |
| 15 | Z33E0303T7 | Filler Pipe Assembly | |
| 16 | Z3BII030000001 | O-Ring Seal | |
| 17 | Z3BII030000002 | Sun Gear | |
| 18 | Z3BII030000003 | Adjusting Shim | |
| 19 | Z3BII030000004 | Internal Seal Ring | |
| 20 | Z3BII030000005 | Piston-Reverse | |
| 21 | Z3BII030000006 | External Seal Ring Return Spring 1st Reverst | |
| 22 | Z3BII030000007 | Piston | |
| 23 | Z3BII030000008 | Spring Guide Rod | |
| 24 | Z3BII030000009 | Driven Plate-1st Reverse | |
| 25 | Z3BII030000010 | Spacer | |
| 26 | Z33E030000002T7 | Transmission Housing | |
| 27 | Z3BII030000012 | Piston-1st Forward | |
| 28 | Z3BII030000013 | Internal Seal Ring | |
| 29 | Z3BII030000014 | Cylinder-1st Forward | |
| 30 | Z3BII030000001T37 | Gear | |
| 31 | Z3BII030000016 | Ring Gear -1st Forward | |
| 32 | Z3BII030000017 | Piston-1st Forward | |
| 33 | Z3BII030000018 | External Seal Ring | |
| 34 | Z3BII030000019 | Piston-2nd Forward | |
| 35 | Z3BII030000020 | Right Cover | |
| 36 | Z3BII030000021 | Tighten Iron | |
| 37 | Z3BII030000022 | Oil Sleeve | |
| 38 | Z3BII030000023 | Shaft Cover | |
| 39 | Z3BII030000024 | Input Shaft -Rear | |
| 40 | Z3BII030000025 | Internal Seal Ring | |
| 41 | Z3BII030000026 | Thread Plug | |
| 42 | Z3BII030000027 | Driven Plate-2nd Foiwd | |
| 44 | Z3BII030000029 | Right Cover | |
| 45 | Z3BII030000030 | Flange | |
| 46 | Z3BII030000031 | Output Shaft-Front | |
| 47 | Z33E030000002 | Brake Plate | |
| 48 | Z3BII030000033 | Adjusting Shim | |
| 49 | Z3BII030000034 | Spacer | |
| 50 | Z3BII030000002T37 | Driven Gear | |
| 51 | Z33E030000001T7 | Flange | |
| 52 | Z3BII030000037 | Sleeve | |
| 53 | Z3BII030000038a | Plate | |
| 55 | Z3BII030000040a | Magnet | |
| 56 | Z3BII030000041 | Bushing | |
| 57 | Z3BII030000042 | Sliding Sleeve | |
| 58 | Z3BII030000043 | Locating Spring | |
| 59 | Z3BII030000044 | Output Shaft Rear | |
| 60 | Z3BII030000045 | Paper Gasket | |
| 61 | Z3BII030000046 | Left Cover | |
| 62 | Z3BII030000047 | Dust Shroud | |
| 63 | Z3BII030000048 | Spacer | |
| 64 | Z33E030000004 | Dust Shroud | |
| 67 | Z3BII030000052 | Clamping Ring | |
| 72 | Z3BII030000057 | Set Screw | |
| 73 | Z3BII030000058 | Pin End Cover | |
| 74 | Z3BII030000059 | Plunger | |
| 76 | Z3BII030000061 | Shift Fork | |
| 77 | Z3BII030000062 | Shaft-Shift Fork | |
| 78 | Z3BII030000063 | Lining-Oil Sea | |
| 79 | Z3BII030000064 | Input Shaft Front | |
| 80 | Z3BII030000065 | Key | |
| 81 | Z3BII030000066 | Adjusting Shim | |
| 82 | Z3BII030000067 | O-RingSeal | |
| 83 | 4HN-22 | Thread Plug | |
| 84 | Z30030000006 | Cover | |
| 85 | Z3BII030000069 | Plate | |
| 86 | Z3BII030000070 | Seal Gasket | |
| 87 | GB/T5783-2000 | Connector | |
| 88 | GB/T93-87 | Washer 20 | |
| 89 | GB/T32.1-88 | Bolt | |
| 90 | GB/T97.1-2002 | Washer 10 | |
| 91 | GB/T276-94 | Bearing | |
| 92 | GB/T894.1-86 | Snap Ring | |
| 93 | GB/T5783-2000 | Connector | |
| 94 | GB/T93-87 | Washer 20 | |
| 95 | GB/T276-94 | Bearing | |
| 96 | GB/T5783-2000 | Connector | |
| 97 | GB/T5783-2000 | Connector | |
| 98 | GB/T93-87 | Washer 20 | |
| 99 | HG4-692-67 | Oil Seal PD60x80x12 | |
| 102 | GB/T276-94 | Bearing | |
| 103 | GB/T276-94 | Bearing | |
| 104 | Z3BII030000039 | Snap Ring | |
| 105 | GB/T5783-2000 | Connector | |
| 106 | GB/T93-87 | Washer 20 | |
| 107 | GB/T308-2000 | Ball | |
| 108 | GB/T893.1-86 | Snap Ring | |
| 109 | GB/T93-87 | Washer 20 | |
| 110 | GB/T6170-2000 | Nut M14 | |
| 111 | GB/T276-94 | Bearing | |
| 112 | GB/T59-76 | Nut | |
| 113 | GB/T91-86 | Pin 10х60 | |
| 114 | GB/T97.1-2002 | Washer 10 | |
| 115 | HG4-692-67 | Oil Seal PD60x80x12 | |
| 116 | GB/T893.1-86 | Snap Ring | |
| 117 | GB/T5783-2000 | Connector | |
| 118 | GB/T5783-2000 | Connector | |
| 119 | GB/T1235-76 | O-Ring | |
| 120 | GB/T95-2002 | Washer 12 | |
| 121 | GB/T901-88 | Stud | |
| 122 | GB/T893.1-86 | Snap Ring | |
| 123 | GB/T5783-2000 | Connector | |
| 124 | GB/T97.2-2002 | Washer 24 | |
| 125 | GB/T5783-2000 | Connector | |
| 126 | GB/T1235-76 | O-Ring | |
| 127 | GB/T1235-76 | O-Ring | |
| 128 | GB/T6170-2000 | Nut M14 | |
| 129 | GB/T97.1-2002 | Washer 10 | |
| 130 | GB/T1235-76 | O-Ring | |
| 131 | Z33E030000003 | Adjusting Shim | |
| 132 | Q/CG302.11-95 | Washer 33 | |
| 133 | GB/T898-88 | Stud | |
| 134 | GB/T5783-2000 | Connector | |
| 135 | GB/T5783-2000 | Connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
