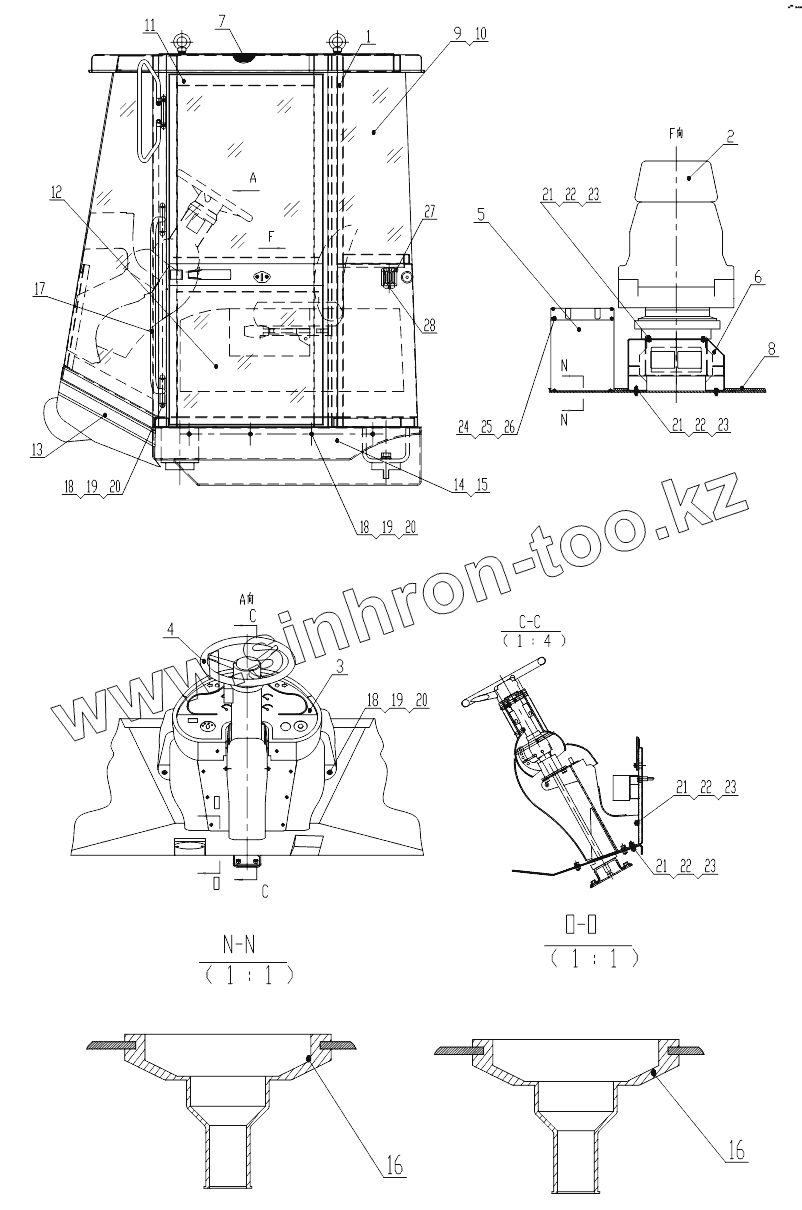

Каталог запасных частей к технике: ChengGong CG-932H. Z30B13T37 Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
18
19
19
19
20
20
20
21
21
21
21
22
22
22
22
23
23
23
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z30B1301T37 | Cab Body | |
| 2 | CGZY-3 | Sheet | |
| 3 | Z5E31307 | Instrument Assemble | |
| 4 | Z5E21304T8 | Steering Wheel | |
| 5 | Z5E21305T8 | Box | |
| 6 | Z5E21306T8 | Glass | |
| 7 | Z30B1307T37 | Adorning | |
| 8 | Z30B130000001T37 | Floor Board Cushion | |
| 9 | Z5E2130000005T8 | Glass | |
| 10 | Z5E2130000006T8 | Glass | |
| 11 | Z5E2130000007T8 | Glass | |
| 12 | Z5E2130000008T8 | Glass | |
| 13 | Z30B130000010T37 | Boarding | |
| 14 | Z5E2130000011T8 | Boarding | |
| 15 | Z5E2130000012T8 | Boarding | |
| 16 | Z5E2130000013T8 | Rubber | |
| 17 | Z30B130106T37 | Handle Assembly | |
| 18 | GB/T5783-2000 | Connector | |
| 19 | GB/T93-1987 | Valve | |
| 20 | GB/T97.1-2002 | Washer 10 | |
| 21 | GB/T5783-2000 | Connector | |
| 22 | GB/T93-1987 | Valve | |
| 23 | GB/T97.1-2002 | Washer 10 | |
| 24 | GB/T818-2000 | Bolt M4x20 | |
| 25 | GB/T93-1987 | Valve | |
| 26 | GB/T97.1-2002 | Washer 10 | |
| 27 | Z50G130000026T15 | Sheet | |
| 28 | GB/T5283-1985 | Bolt ST4.2х16 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
