Каталог запасных частей к технике: Changlin ZL50H. Z50H.9C Brake System (1)
1
2
3
4
5
6
7
7
7
7
7
7
7
7
7
8
8
9
9
9
10
10
11
11
11
12
13
13
14
15
16
17
17
17
17
18
19
20
21
22
22
22
23
24
25
26
27
28
29
30
31
31

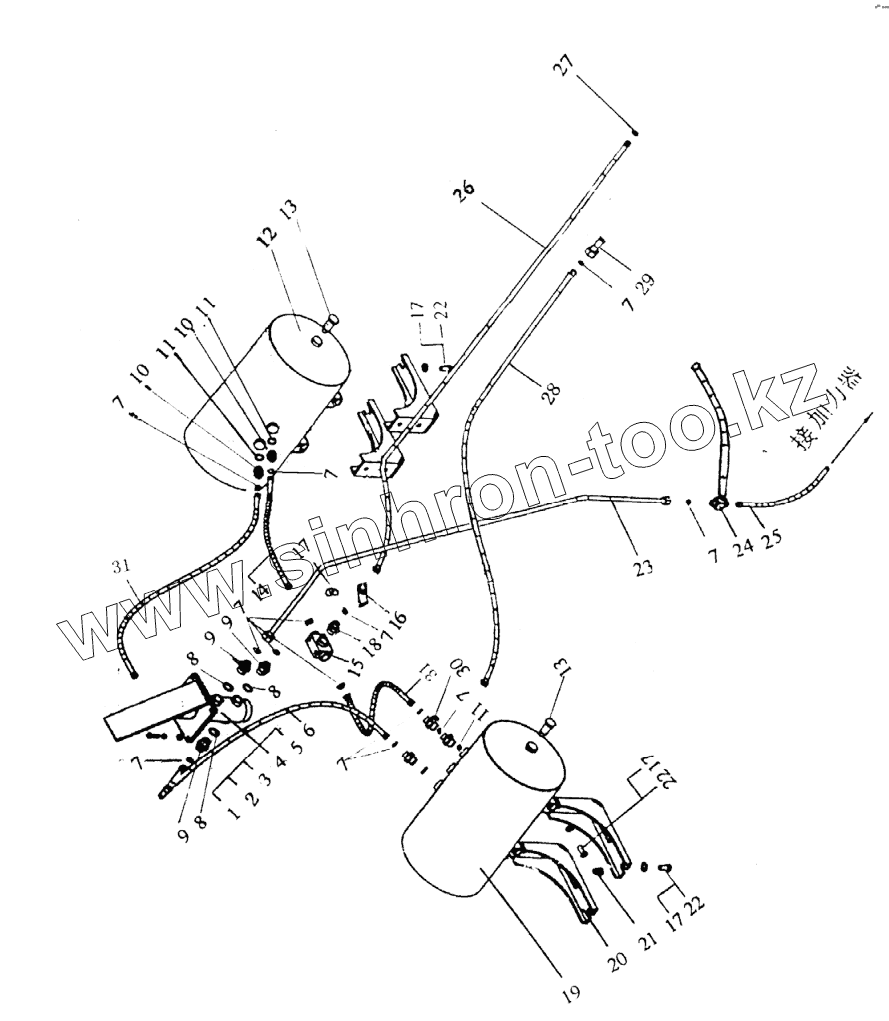

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W-18-00071 | Air brake valve | |
| 2 | B-G057830-00146 | Bolt | |
| 3 | B-G061700-00036 | Nut | |
| 4 | B-G000930-00017 | Washer | |
| 5 | B-G00097B-00023 | Washer | |
| 6 | W-13-00040 | Pipe | |
| 7 | B-Q020710-00018 | O-ring | |
| 8 | B-J010020-00007 | Washer | |
| 9 | Z50H.9B-1 | Joint | |
| 10 | Z30.9.4-1 | Joint | |
| 11 | B-J010020-00005 | Copper washer | |
| 12 | Z50G.9D.7 | Rirht air tank | |
| 13 | W-18-00021 | Safety valve | |
| 14 | W-13-00030 | Pipe | |
| 15 | W-18-00030 | One-way valve ass’y | |
| 16 | B-Q020050-00010 | Nip | |
| 17 | B-G057830-00030 | Bolt | |
| 18 | Z50B.9A.1-5 | Joint | |
| 19 | Z50G.9.7 | Left air tank | |
| 20 | Z40E.9B.9 | Support | |
| 21 | W-18-00076 | Drain valve | |
| 22 | B-Q020490-00003 | Washer | |
| 23 | W-13-00023 | Pipe | |
| 24 | Z50G.9D-2 | Joint | |
| 25 | Z50G.9D.5 | Air pipe | |
| 26 | Z50G.9D.1 | Pipe | |
| 27 | B-J010020-00005 | Copper washer | |
| 28 | W-13-00054 | Pipe | |
| 29 | Z50E.9.1.6J-1 | Joint | |
| 30 | Z50G.9D.6 | Joint | |
| 31 | W-13-00018 | Pipe |
