Каталог запасных частей к технике: Changlin ZL50H. Z50H.4.3 Clutch Assy
1
2
2
3
4
5
6
7
7
8
9
10
11
12
12
13
13
14
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
30
31
32
32
32

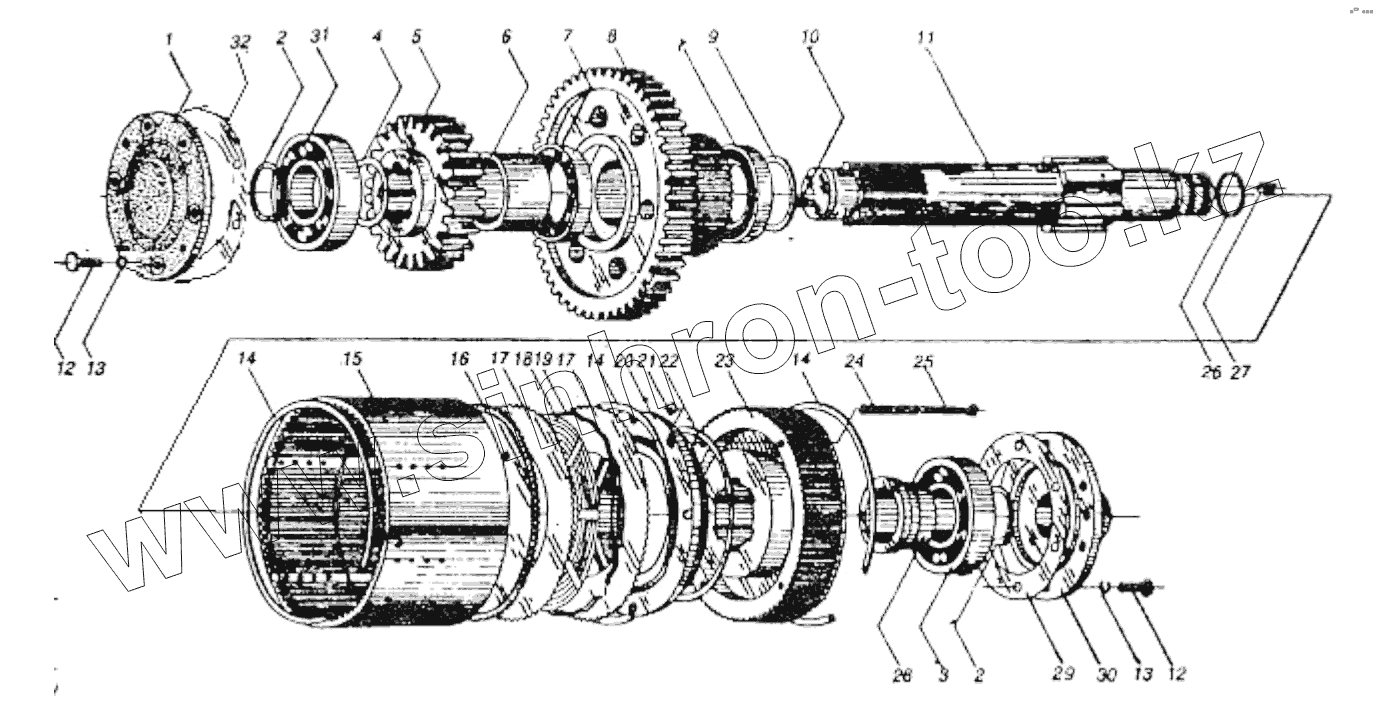

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z50B.4.3A-1 | Bearing cover | |
| 2 | B-G00894A-00019 | Snap ring | |
| 3 | W-03-00067 | Bearing | |
| 4 | Z50B.4.2-2 | Spacer ring | |
| 5 | Z50E.4C.3-1 | Output gear | |
| 6 | Z50B.4.3-2 | Bushing | |
| 7 | B-G002760-00010 | Bearing | |
| 8 | Z50E.4.3-2 | Gear | |
| 9 | Z50B.4.2-14 | Spacer ring | |
| 10 | Z50B.4.2-6 | Plug | |
| 11 | Z50E.4.3-5 | Shaft | |
| 12 | B-G057830-00010 | Bolt | |
| 13 | B-G000930-00001 | Washer | |
| 14 | Z50B.4.2-11 | Snap ring | |
| 15 | Z50B.4.3-5 | Gear ring | |
| 16 | Z50B.4.3-4 | 1st and 2nd cover | |
| 17 | Z50B.4.2-7 | Drive disc | |
| 18 | Z50B.4.2-8 | Driven disc | |
| 19 | Z50B.4.2-15 | Wave spring | |
| 20 | Z50B.4.2-12 | Piston | |
| 21 | Z50B.4.2-23 | Snap ring | |
| 22 | Z50B.4.2-24 | Seal ring | |
| 23 | Z50E.4.3-3 | Cylinder body | |
| 24 | Z50B.4.2-10 | Retraction spring | |
| 25 | Z50B.4.2-9 | Retraction drag rod | |
| 26 | Z30.4.1-19 | Oil seal ring | |
| 27 | B-G000780-00006 | Screw | |
| 28 | Z50E.4.3-4 | Collar | |
| 29 | Z50B.4.2-19A | Paper pad | |
| 29 | Z50B.4.2-19B | Paper pad | |
| 29 | Z50B.4.2-19C | Paper pad | |
| 30 | Z50B.4.3-7 | Bearing cover | |
| 31 | W-03-00050 | Bearing cover | |
| 32 | Z50B.4.3A-4A | Paper pad | |
| 32 | Z50B.4.3A-4B | Paper pad | |
| 32 | Z50B.4.3A-4C | Paper pad |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
