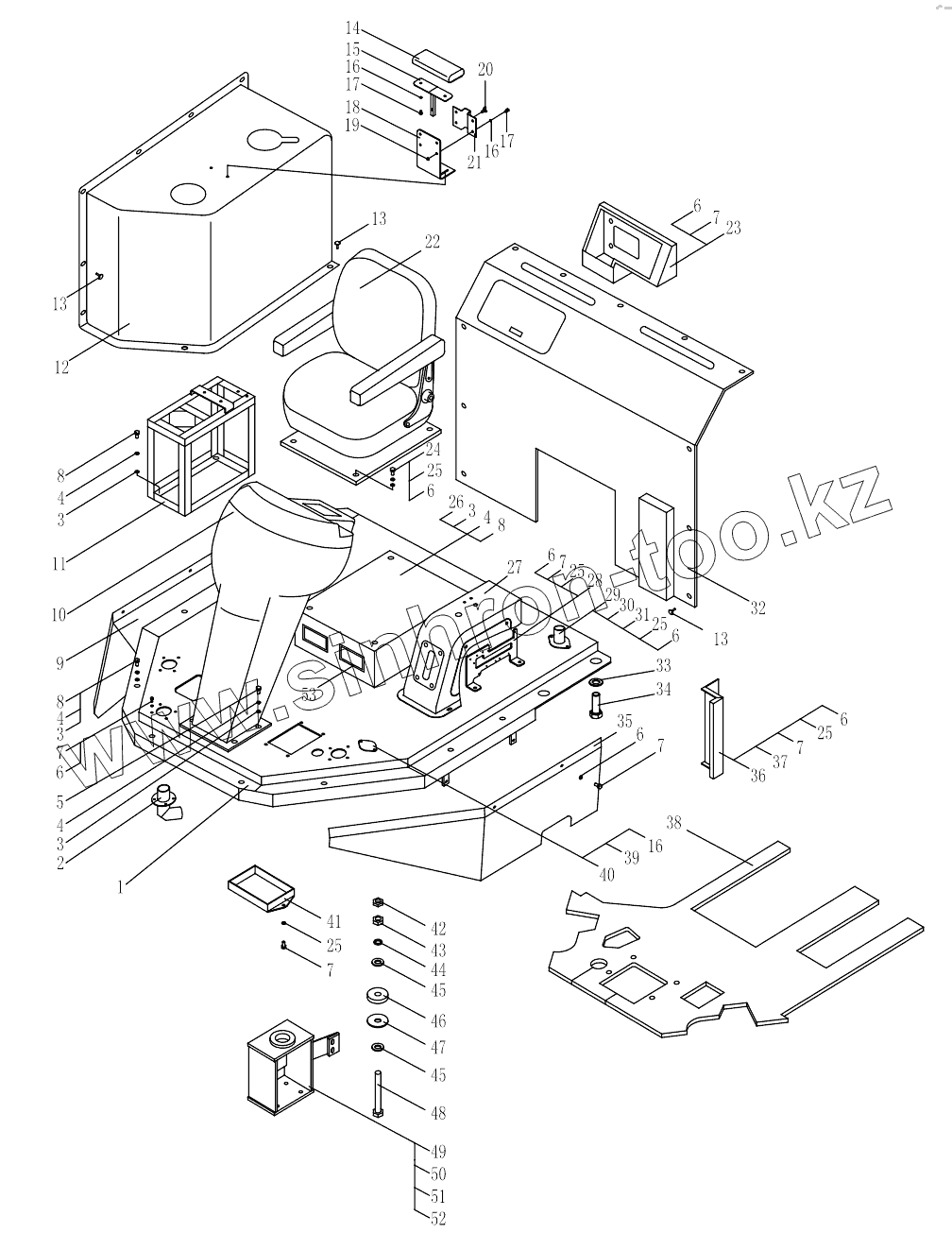

Каталог запасных частей к технике: Changlin ZL50H. Z50H.16B Cab (2)
1
2
3
3
3
3
4
4
4
4
5
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
9
10
11
12
13
13
13
14
15
16
16
16
17
17
18
19
20
21
22
23
24
25
25
25
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z50H.16B.1 | Lower plate rack | |
| 2 | Z50E.16F.10 | Air joint | |
| 3 | B-G00097B-00004 | Washer | |
| 4 | B-G000930-00003 | Washer | |
| 5 | B-G057830-00034 | Bolt | |
| 6 | B-G00097B-00023 | Washer | |
| 7 | B-G057830-00139 | Bolt | |
| 8 | B-G057830-00037 | Bolt | |
| 9 | Z50G.16.5 | Right cover | |
| 10 | Z50E.16F.5S | Instrument post | |
| 11 | Z50G.16N.1 | Precursor support | |
| 12 | Z50G.16.8 | Precursor cover | |
| 13 | Z40E.16F.6 | Plastic button | |
| 14 | Z50G.16B.5.1 | Cushion | |
| 15 | Z50G.16B.5.2 | Bracket | |
| 16 | B-G00097B-00021 | Washer | |
| 17 | B-G057830-00131 | Bolt | |
| 18 | Z50G.16B.5-1 | Plate | |
| 19 | B-G061700-00034 | Nut | |
| 20 | Z50G.16B.5.3 | Bolt | |
| 21 | Z50G.16B.5-2 | Plate | |
| 22 | W-09-00050 | Seat | |
| 23 | Z50E.16F.14 | Toolbox | |
| 24 | B-G057830-00146 | Bolt | |
| 25 | B-G000930-00017 | Washer | |
| 26 | Z50G.16B.9 | Air box | |
| 27 | Z40E.16F.23 | Brake box | |
| 28 | 937.16-1 | Bracket | |
| 29 | Z50E.16F-7 | Rubber plate | |
| 30 | Z50E.16F.17 | Joint pipe | |
| 31 | B-G057830-00143 | Bolt | |
| 32 | Z50G.16B.10 | Baseboard | |
| 33 | B-Q020490-00015 | Washer | |
| 34 | B-G057830-00116 | Bolt | |
| 35 | Z50G.16.6 | Left cover | |
| 36 | Z50G.16-1 | Left cover | |
| 37 | Z50G.16-2 | Right cover | |
| 38 | Z50G.16B.2 | Carpet | |
| 39 | B-G008180-00028 | Screw | |
| 40 | Z50G.16-3 | Plate | |
| 41 | Z40E.16F.26 | Plate | |
| 42 | B-G061730-00020 | Nut | |
| 43 | B-G061710-00017 | Nut | |
| 44 | B-G000930-00009 | Washer | |
| 45 | B-G00097B-00012 | Washer | |
| 46 | Z30.1.2 | Rubber mat | |
| 47 | Z30.1-10 | Washer | |
| 48 | B-G057850-00036 | Bolt | |
| 49 | Z50G.16.14 | Left support | |
| 50 | Z50G.16.15 | Right support | |
| 51 | B-G057830-00073 | Bolt | |
| 52 | B-Q020490-00007 | Washer | |
| 53 | Z40E.16F-8 | Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
