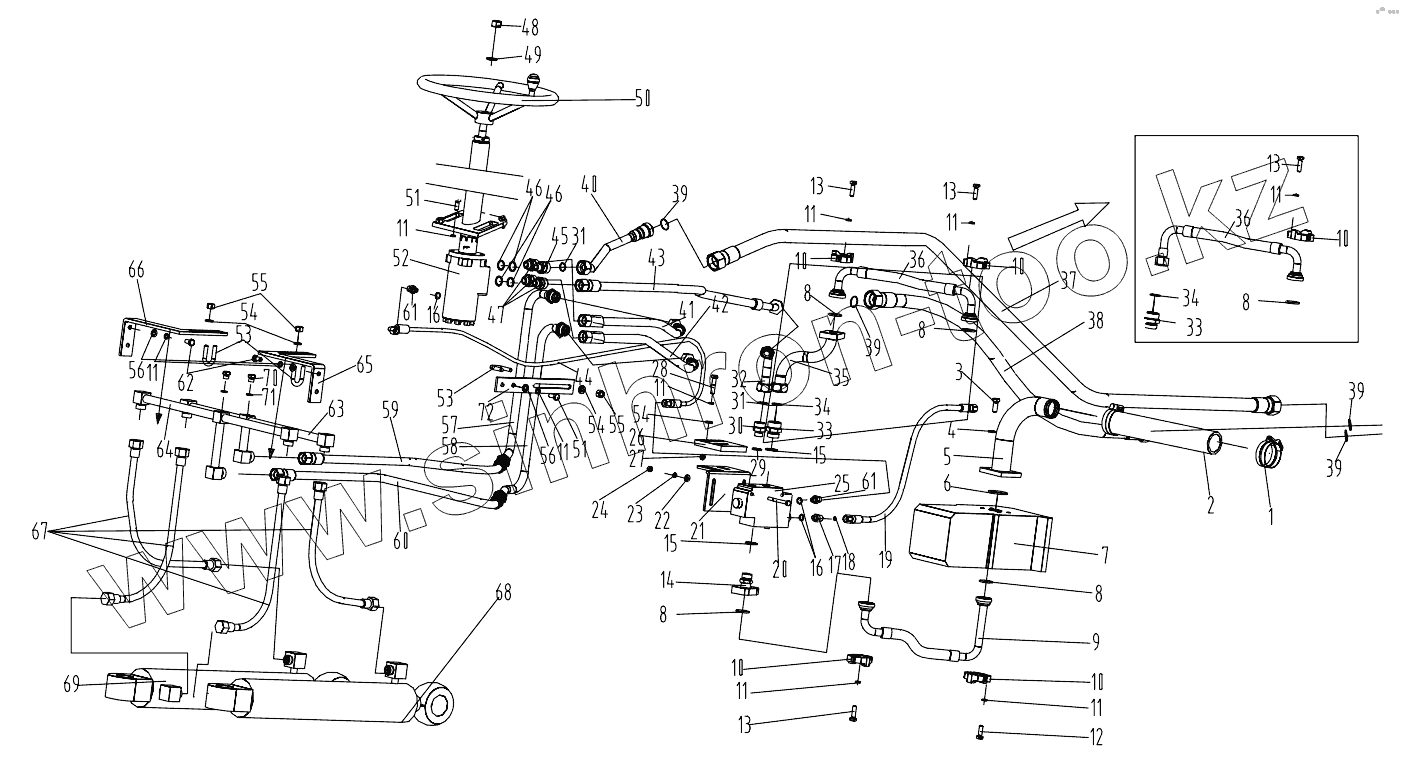

Каталог запасных частей к технике: Changlin ZL50H. Z50G.10E Steering System
1
2
3
4
5
6
7
8
8
8
8
8
9
10
10
10
10
10
11
11
11
11
11
11
11
11
11
12
13
13
13
13
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
33
33
33
34
34
34
34
35
36
36
36
36
37
38
39
39
39
39
40
41
42
43
44
45
46
46
47
48
49
50
51
51
52
53
53
54
54
54
55
55
56
56
57
58
59
60
61
61
62
63
64
65
66
67
68
69
70
71
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | B-J088700-00018 | Clamp | |
| 2 | Z30.14-8 | Hose | |
| 3 | B-G057830-00034 | Bolt | |
| 4 | B-G000930-00003 | Washer | |
| 5 | Z50G.10D.10 | Oil pipe | |
| 6 | B-Q020710-00077 | 0-ring | |
| 7 | W-01-00033 | Pump | |
| 8 | B-Q020710-00060 | 0-ring | |
| 9 | Z50G.10E.4A | Oil pipe | |
| 10 | B-Q020140-00005 | Flange | |
| 11 | B-G000930-00001 | Washer | |
| 12 | B-G057830-00010 | Bolt | |
| 13 | B-G057830-00011 | Bolt | |
| 14 | Z50G.10E.3 | Joint | |
| 15 | B-J010020-00009 | Washer | |
| 16 | B-J010020-00002 | Washer | |
| 17 | Z50G.10E-3 | Joint | |
| 18 | B-Q020710-00006 | O-ring | |
| 19 | B-Q020750-00107 | Oil pipe | |
| 20 | B-G057820-00169 | Bolt | |
| 21 | Z50G.10E-6 | Plate | |
| 22 | B-Q020490-00023 | Washer | |
| 23 | B-G000930-00017 | Washer | |
| 24 | B-G061700-00036 | Nut | |
| 25 | W-07-00131 | Valve | |
| 26 | Z50G.10D-3 | Plate | |
| 27 | B-G061840-00002 | Nut | |
| 28 | B-G057820-00012 | Bolt | |
| 29 | B-J010020-00007 | Washer | |
| 30 | Z50G.10E-7 | Joint | |
| 31 | B-Q020710-00039 | 0-ring | |
| 32 | Z50G.10E.1 | Oil pipe | |
| 33 | Z50G.10E-5 | Joint | |
| 33 | Z30.2M.4-1 | Joint | |
| 34 | B-Q020710-00046 | 0-ring | |
| 34 | B-Q020710-00039 | 0-ring | |
| 35 | Z50G.10.12 | Oil pipe | |
| 36 | Z50G.10E.5 | Hose | |
| 36 | Z50G.10E.5A | Hose | |
| 37 | B-Q020750-00073 | Hose | |
| 38 | B-Q020750-00138 | Hose | |
| 39 | B-Q020710-00050 | O-ring | |
| 40 | Z50G.10Е.2 | Oil pipe | |
| 41 | W-16-00129 | Hose | |
| 42 | W-16-00130 | Hose | |
| 43 | W-16-00134 | Hose | |
| 44 | W-16-00261 | Hose | |
| 45 | Z50E.10B-1 | Joint | |
| 46 | B-J010020-00006 | Washer | |
| 47 | Z50G.10E-1 | Joint | |
| 48 | B-G061710-00010 | Nut | |
| 49 | B-G00097B-00008 | Washer | |
| 50 | W-19-00001 | Steering wheel | |
| 51 | B-G057830-00006 | Blot | |
| 52 | W-19-00031 | Valve | |
| 53 | B-Q020120-00002 | U-pipe clamp | |
| 54 | B-Q020490-00001 | Washer | |
| 55 | B-G061760-00001 | Nut | |
| 56 | B-G00097B-00002 | Washer | |
| 57 | Z50G.10D.4 | Oil pipe | |
| 58 | Z50G.10D.5 | Oil pipe | |
| 59 | W-16-00133 | Hose | |
| 60 | W-16-00132 | Hose | |
| 61 | Z50G.10E-2 | Joint | |
| 62 | B-G057830-00003 | Bolt | |
| 63 | Z50G.10D.3 | Oil pipe | |
| 64 | Z50G.10D.2 | Oil pipe | |
| 65 | Z50G.10-1 | Plate | |
| 66 | Z50G.10-2 | Plate | |
| 67 | W-16-00128 | Hose | |
| 68 | Z50G.10D.7 | Left steering cylinder | |
| 69 | Z50G.10D.1 | Right steering cylinder | |
| 70 | B-J010000-00002 | Plug screw | |
| 71 | B-J010020-00003 | Washer | |
| 72 | Z50G.10-4 | Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
