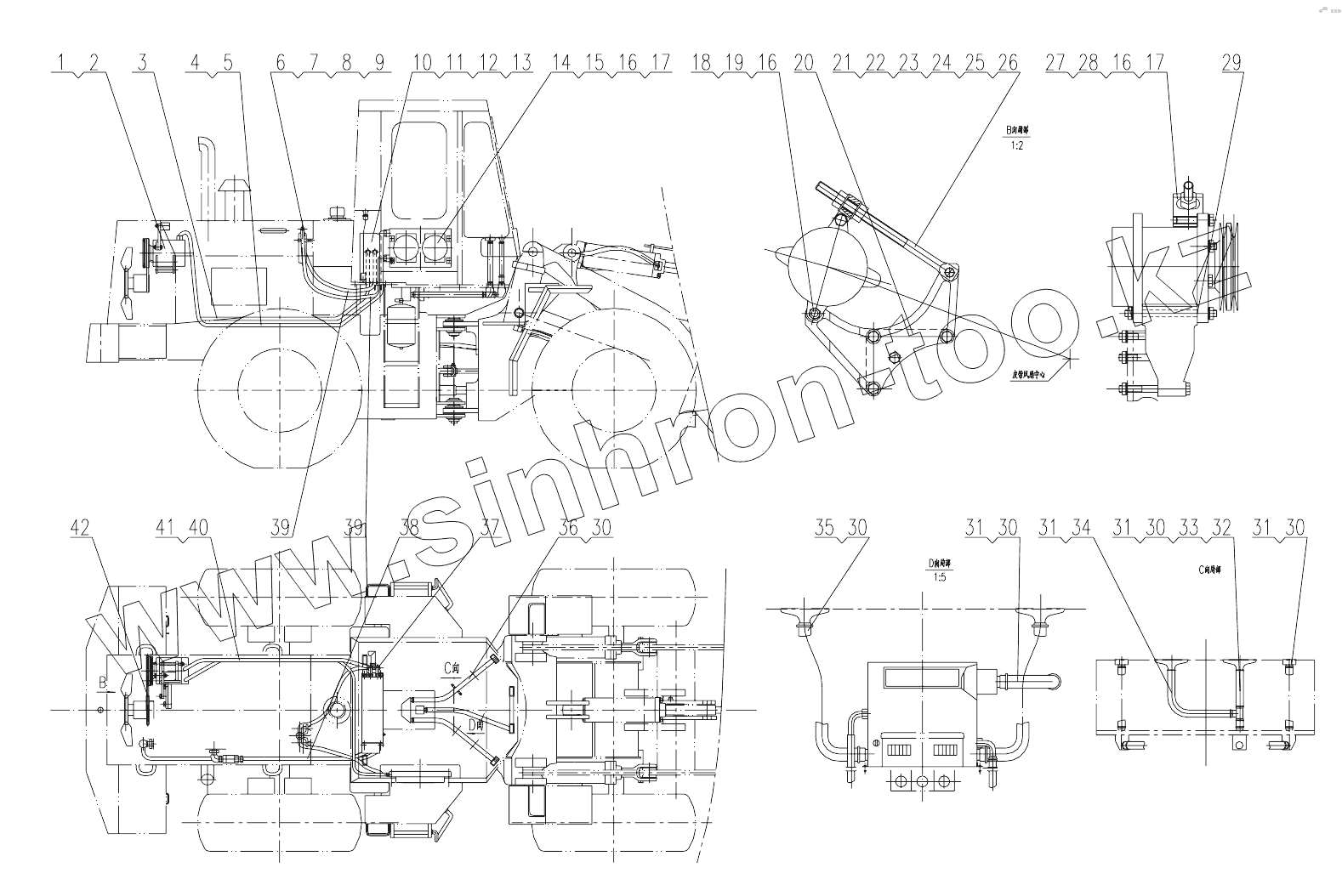

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | SE-5H1424 | Compressor | |
| 2 | W-08-00040 | Air-condition | |
| 3 | T0310206 | Tube | |
| 4 | T0310015 | Tube | |
| 5 | B-Q020020-00004 | Hoop | |
| 6 | T0520048 | Oil storage | |
| 7 | B-G057830-00128 | Bolt | |
| 8 | B-G000930-00015 | Washer | |
| 9 | B-G00097B-00021 | Washer | |
| 10 | T0100042 | Evaporator | |
| 11 | B-G057830-00030 | Bolt | |
| 12 | B-G000930-00003 | Washer | |
| 13 | B-G00097B-00004 | Washer | |
| 14 | T0200001 | T0200001 | |
| 15 | B-G057830-00010 | Bolt | |
| 16 | B-G000930-00001 | Washer | |
| 17 | B-G00097B-00002 | Washer | |
| 18 | Z50E.21G-3 | Bolt | |
| 19 | B-G061700-00003 | Bolt | |
| 20 | Z50E.21D-1 | Bracket | |
| 21 | Z50E.2ID-2 | Screw | |
| 22 | B-G057830-00076 | Bolt | |
| 23 | B-G00097B-00008 | Washer | |
| 24 | B-G000930-00006 | Bolt | |
| 25 | B-Q020490-00005 | Washer | |
| 26 | B-G061700-00010 | Nut | |
| 27 | Z50E.21D-3 | Board | |
| 28 | B-G057830-00018 | Washer | |
| 29 | Z50E.21D-4 | Washer | |
| 30 | T0160005 | Pipeline | |
| 31 | B-J088700-00017 | Clamp | |
| 32 | Z40E.21F-1 | Tube | |
| 33 | T0160006 | Pipeline | |
| 34 | T0160007 | Pipeline | |
| 35 | T0160002 | Pipeline | |
| 36 | T0160009 | Pipeline | |
| 37 | Z30.16.4-16 | Outlet loop | |
| 38 | Z50E.21D-5 | Hose | |
| 39 | T0310206 | Tube | |
| 40 | Z50E.21D-6 | Hose | |
| 41 | B-J088700-00012 | Clamp | |
| 42 | A-1345 | Strap |
