Каталог запасных частей к технике: CASE IH WX-188 (часть 2). 55.785.01(01) - DISPLAY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 595LSP, 595SLE (2010) 695ST (часть 1) (2015) 695ST (часть 2) (2015) 695ST (часть 3) (2015) 695ST Tier 4A (часть 1) (2012) 695ST Tier 4A (часть 2) (2012) 695ST Tier 4A (часть 3) (2012) 821F (2011) 845 (2002) 921F (2011) Case-430 (2005) Case-570T (2010) Case-580T (часть 1) (2012) Case-580T (часть 1) (2016) Case-580T (часть 2) (2012) Case-580T (часть 2) (2016) SR250 (2012) SV300 (2012) TR270 (2014) TR320 (2012) TV380 (2012) WX-188 (часть 1) (2014) WX-188 (часть 2) (2014)

Схема > Не выбрано 37.140.01(01) - COUNTERWEIGHT 39.100.01(01) - VAR - 461150, 461252 - REAR BLADE - LOWER FRAME 39.100.0101(01) - VAR - 461151, 461253 - 2 STABILIZERS WELDED - LOWER FRAME 39.100.0102(01) - VAR - 461153, 461254 - FRONT BLADE/REAR STABILIZERS WELDED -LOWER FRAME 39.100.0103(01) - VAR - 461155, 461256 - FRONT/REAR STABILIZERS (2 BOLTED- 2WELDED) - LOWER FRAME 39.101.01(01) - FRAME - UPPER 39.101.01(02) - FRAME - UPPER 39.101.01(03) - UPPER FRAME - INSULATIONS AND SEALS - BSN NELB04653 39.101.01(03A) - UPPER FRAME - INSULATIONS AND SEALS - ASN NELB04652 39.103.01(01) - SLEWING RING 39.123.01(01) - VAR - 461150 - BLADE REAR (L=2,50MT) 39.123.01(02) - VAR - 461150, 461252 - BLADE REAR 39.123.0101(01) - VAR - 461153 - BLADE FRONT (L=2,50MT) 39.123.0102(01) - VAR - 461252 - BLADE REAR (L=2,75MT) 39.123.0103(01) - VAR - 461254 - BLADE FRONT (L=2,75MT) 39.123.02(01) - VAR - 781999 - DOZER BLADE - COVER 39.129.01(01) - VAR - 461151, 461153, 461155, 461253, 461254, 461256 - STABILIZERS 39.129.01(02) - VAR - 461151, 461153, 461155, 461253, 461254, 461256 - REFLECTOR 41.106.01(01) - VAR - 461150, 461151, 461153, 461155 - UNDERCARRIAGE (L=2,50MT) FRONT AXLE -STEERING LINKAGE 41.106.0101(01) - VAR - 461252, 461253, 461254, 461256 - UNDERCARRIAGE (L=2,75MT) FRONT AXLE -STEERING LINKAGE 41.200.01(01) - STEERING PIPING 41.200.01(02) - STEERING PIPING 41.200.01(03) - STEERING PIPING 41.204.01(02) - STEERING COLUMN - BREAKDOWN 41.204.01(03) - STEERING COLUMN - BREAKDOWN 41.204.01(04) - STEERING COLUMN - BREAKDOWN 41.216.01(01) - VAR - 461150, 461151, 461153, 461155 - UNDERCARRIAGE (L=2,50MT) FRONT AXLE -CYLINDER STEERING 41.216.0101(01) - VAR - 461252, 461253, 461254, 461256 - UNDERCARRIAGE (L=2,75MT) FRONT AXLE -CYLINDER STEERING 44.101.01(01) - AXLE CYLINDER 44.511.01(01) - VAR - 940003, 956005 - COUPLES WHEELS 44.511.01(02) - VAR - 940003 - COUPLES WHEELS 10.00-20 W.BR.MITAS 44.511.01(03) - VAR - 956005 - COUPLES WHEELS 11.00-20 W.BR.MITAS 44.511.01(04) - VAR - 956005 - COUPLES WHEELS 11.00-20 W.BR.MITAS 44.511.0101(01) - VAR - 940047 - SINGLE WHEEL 600/40 - 22.5 MITAS 44.511.0101(02) - VAR - 940047 - SINGLE WHEEL 600/40 - 22.5 MITAS 44.511.0102(01) - VAR - 940045 - SINGLE WHEEL 18R - 22.5 MICHELIN 44.511.0102(02) - VAR - 940045 - SINGLE WHEEL 18R - 22.5 MICHELIN 44.511.0103(01) - VAR - 940005 - SINGLE WHEEL 620 - 40 - 22.5 ALLIANCE 44.511.0103(02) - VAR - 940005 - SINGLE WHEEL 620 - 40 - 22.5 ALLIANCE 44.511.02(01) - VAR - 956005, 940045 - AXLE SUPPORT 44.511.0201(01) - VAR - 940047 - AXLE SUPPORT 50.200.01(01) - LIQUEFIER 50.200.01(02) - A/C HOSE 50.200.01(03) - A/C COMPRESSOR 50.200.01(04) - RECEIVER-DRYER 50.206.01(01) - AIR CONDITIONER 50.206.01(02) - BOX CLIMATE UNIT ATC - BSN NCLB04410 50.206.01(02A) - BOX CLIMATE UNIT ATC - ASN NCLB04411 50.206.02(01) - A/C CONTROL PANEL 55.100.01(01) - ACCELERATOR PEDAL 55.100.02(01) - ELECTRONIC SYSTEM BATTERY 55.100.03(01) - SLIPRING UNIT 55.100.05(01) - HARNESS - UPPER 55.100.05(02) - HARNESS - UPPER 55.100.05(03) - HARNESS - UPPER 55.100.05(04) - HARNESS - UPPER 55.100.06(01) - HARNESS - LOW UNDERCARRIAGE 55.100.07(01) - ATTACHMENT, BOOM - PLUG 55.100.0701(01) - VAR - 461163, 461512 - SPEED LIMITER, PLUG 55.100.08(01) - VAR - 461533 55.100.09(01) - VAR - 461153, 461254 - FRONT BLADE/REAR STABILIZERS WELDED -UNDERCARRIAGE SOLENOID VALVE, HARNESS 55.100.10(01) - VAR - 461155, 461256 - FRONT/REAR STABILIZERS (2 BOLTED-2 WELDED) -UNDERCARRIAGE SOLENOID VALVE, HARNESS 55.201.01 - STARTER MOTOR 55.201.02(01) - VAR - 781268 - FUEL TRANSFER PUMP - END YR 14-JAN-2015 55.201.02(01A) - FUEL TRANSFER PUMP - END YR 15-JAN-2015 55.201.03(01) - KEY 55.301.01(01) - BATTERY 55.301.02 - ALTERNATOR - MOUNTING 55.404.01(01) - LIGHT - BOOM 55.404.02(01) - LIGHT UPPER, INSTAL 55.404.02(02) - VAR - 781359 - SCOPE OF SUPPLY ITALY 55.404.03(01) - BOOM - HARNESS 55.404.04(01) - VAR - 781424 - ROAD LIGHT, GERMANY 55.404.05(01) - REFLECTOR 55.408.01(01) - SWITCH PARKING BRAKE 55.408.02(01) - STEERING COLUMN 55.408.03(01) - HORN 55.408.05(01) - VAR - 781213, 781359 - ROTARY BEACON - BSN NELB04647 55.408.05(01A) - VAR - 781213, 781359 - ROTARY BEACON - ASN NELB04646 55.410.01(01) - FUEL TANK - SENSOR 55.410.02(01) - GAUGE 55.410.03(01) - VAR - 781268 - FUEL TRANSFER PUMP - SENSOR 55.414.01 - ENGINE SENSORS 55.414.02(01) - TEMPERATURE SENDER 55.414.03(01) - TEMPERATURE SENDER 55.414.04(01) - PIPE-BREAK PROTEC. BOOM CYLINDERS 55.414.05(01) - VAR - 461533, 461534, 461535 - NIBBLER & BREAKER - SOLENOID VALVE 55.414.06(01) - TEMPERATURE SENDER 55.414.07(01) - TEMPERATURE SENDER 55.418.01(01) - ENGINE - SENSOR 55.418.03(01) - UNDERCARRIAGE SOLENOID VALVE - SENSOR 55.418.04(01) - STEERING VALVE 55.420.01(01) - BRACKET INSTELL.MATERIAL 55.424.01(01) - ELECTRIC SENSORS (PUMP) 55.424.01(02) - SWING MOTOR - ELECTRIC SENSORS 55.424.02(01) - ELECTRIC PUMP 55.440.01(01) - CAB - SWITCHES 55.440.02(01) - VAR - 461151, 461253 - 2 STABS WELDED - SWITCH 55.440.0201(01) - VAR - 461153, 461254 - STAB + BLADE - SWITCH 55.440.0202(01) - VAR - 461155, 461256 - FRONT/REAR STABILIZERS (2 BOLTED-2 WELDED) -SWITCH 55.440.03(01) - VAR - 781154 - WORK LAMP SWITCH 55.440.04(01) - VAR - 781128 - QUICK COUPLER SWITCH 55.440.05(01) - VAR - 461213 - OVERLOAD SWITCH 55.440.06(01) - VAR - 461533, 461534, 461535 - NIBBLER & BREAKER - SWITCH 55.440.07(01) - ELECTRONIC CONTROL UNIT 55.440.08(01) - AIR CONDITIONING CONTROL UNIT 55.510.01(01) - CAB - ELECTRIC SYSTEM - END YR 14-NOV-2012 55.510.01(01A) - CAB, ELECTRIC SYSTEM - BEGIN YR 15-NOV-2012 55.510.02(01) - CAB - ELECTRIC SYSTEM 55.510.03(01) - CAB - ELECTRIC SYSTEM 55.510.03(02) - CAB - ELECTRIC SYSTEM - HARNESS ASSY 55.510.04(01) - VAR - 781154 - REAR CAB WORKING LIGHT 55.512.01(01) - VAR - 781833 - RADIO 55.512.02(01) - VAR - 461900 - RADIO, BLUETOOTH 55.518.01(01) - WINDSHIELD WIPER TANK 55.530.01(01) - VAR - 461212 - REAR VIEW CAMERA 55.530.0101(01) - VAR - 461902 - ADDITIONAL PARTS WITHOUT REAR CAMERA 55.785.01(01) - DISPLAY 55.785.01(02) - DISPLAY - BREAKDOWN 55.991.01(01) - TELEMATIC SYSTEM 84.100.000 - SECTION INDEX - BOOMS, DIPPERS & BUCKET 84.100.01(01) - MONOBLOC BOOM (5,2M) - VERSION 01 84.100.01(02) - LIFT BOOM - VERSION 02 84.100.01(03) - LIFT BOOM INSTAL - VERSION 02 84.100.01(04) - POSITIONER ARM - VERSION 02 84.100.01(05) - LIFT BOOM INSTAL - VERSION 02 84.100.03(01) - VAR - 781490 - DIPPER STICK (L=2,2MT) 84.100.03(02) - VAR - 781491, 781145, 781147 - DIPPER STICK 84.100.03(03) - VAR - 781490, 781176, 781179 - DIPPER STICK 84.100.03(04) - VAR - 781490, 781176, 781179 - DIPPER STICK - CYLINDER BUCKETINSTAL 84.100.0301(01) - VAR - 781176 - DIPPER STICK (L=2,6MT) 84.100.0302(01) - VAR - 781179 - DIPPER STICK (L=3,1MT) 84.100.04(01) - VAR - 461212 - LINK 84.100.0401(01) - VAR - 461213 - LINK WITH HOOK OBJECT HANDLING 84.100.0402(01) - VAR - 461901 - MANOUVRE LINK STOP 84.100.05(01) - VAR - 781781 - BUCKET 84.100.05(02) - BUCKET INSTALLATION 84.100.052 - BUCKET (L=470MM) 84.100.053 - BUCKET (L=600MM) 84.100.054 - BUCKET (L=750MM) 84.100.055 - BUCKET (L=900MM) 84.100.056 - BUCKET (L=1000MM) 84.100.057 - BUCKET (L=1100MM) 84.100.058 - BUCKET (L=1200MM) 84.100.059 - BUCKET (L=1350MM) 84.100.060 - BUCKET (L=470MM) 84.100.061 - BUCKET (L=600MM) 84.100.062 - BUCKET (L=750MM) 84.100.063 - BUCKET (L=900MM) 84.100.064 - BUCKET (L=1000MM) 84.100.065 - BUCKET (L=1100MM) 84.100.066 - BUCKET (L=1200MM) 84.100.067 - HEAVY DUTY, BUCKET (L=470MM) 84.100.068 - HEAVY DUTY, BUCKET (L=600MM) 84.100.069 - HEAVY DUTY, BUCKET (L=750MM) 84.100.070 - HEAVY DUTY, BUCKET (L=900MM) 84.100.071 - HEAVY DUTY, BUCKET (L=1000MM) 84.100.072 - HEAVY DUTY, BUCKET (L=1100MM) 84.100.073 - HEAVY DUTY, BUCKET (L=1200MM) 84.100.074 - HEAVY DUTY, BUCKET (L=1350MM) 84.100.075 - HEAVY DUTY, BUCKET (L=470MM) 84.100.076 - HEAVY DUTY, BUCKET (L=600MM) 84.100.077 - HEAVY DUTY, BUCKET (L=750MM) 84.100.078 - HEAVY DUTY, BUCKET (L=900MM) 84.100.079 - HEAVY DUTY, BUCKET (L=1000MM) 84.100.080 - HEAVY DUTY, BUCKET (L=1100MM) 84.100.081 - HEAVY DUTY, BUCKET (L=1200MM) 84.100.082 - 90° TILT DITCH CLEANING (L=1500MM) 84.100.083 - 90° TILT DITCH CLEANING (L=1800MM) 84.100.084 - 90° TILT DITCH CLEANING (L=2000MM) 84.100.085 - 90° TILT DITCH CLEANING (L=2200MM) 84.100.086 - 90° TILT DITCH CLEANING (L=2400MM) 84.100.087 - BUCKET (L=1350MM) 84.100.088 - HEAVY DUTY, BUCKET (L=1350MM) 84.100.261 - DITCH CLEANING (L=1200MM), EU MODELS 84.100.262 - DITCH CLEANING (L=1830MM) 84.100.263 - DITCH CLEANING (L=1830MM) 84.100.264 - DITCH CLEANING (L=1830MM) 84.100.312 - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT 84.100.313 - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT 88.035.01(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN, HYD. LINE - VERSION 01 88.035.02(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN - HYD. LINES 88.035.03(01) - DIA KIT - GRAB ROTATION 80L/MIN., JOYSTICK - END YR 22-JAN-2015 88.035.03(01A) - DIA KIT - GRAB ROTATION 80L/MIN., JOYSTICK - BEGIN YR 23-JAN-2015 88.035.04(01) - DIA KIT - GRAB ROTATION 80L/MIN, HYD. LINES 88.035.05(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN. (L=3.1MT) - HYD. LINES 88.035.06(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN. (L=2.2MT) - HYD. LINES 88.035.07(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN. (L=2.6MT) - HYD. LINES 88.035.08(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN. - HYD. LINES 88.035.09(01) - DIA KIT - GRAB ROTATION 22L/MIN., JOYSTICK - END YR 22-JAN-2015 88.035.09(01A) - DIA KIT - GRAB ROTATION 22L/MIN., JOYSTICK - BEGIN YR 23-JAN-2015 88.035.10(01) - DIA KIT - GRAB ROTATION 22L/MIN. - HYD. LINE - VERSION 02 88.035.11(01) - DIA KIT - GRAB ROTATION 22L/MIN. - 80L/MIN. - HYD. LINES - VERSION 02 88.035.12(01) - DIA KIT - NIBBLER AND BREAKER - HYD. LINES - VERSION 01 88.035.13(01) - DIA KIT - NIBBLER AND BREAKER - HYD. LINES - VERSION 01 88.035.14(01) - DIA KIT - NIBBLER AND BREAKER - HYD. LINES - VERSION 02 88.035.15(01) - DIA KIT - NIBBLER AND BREAKER - HYD. LINES - VERSION 02 88.035.16(01) - DIA KIT - CHECK VALVE 88.035.17(01) - DIA KIT - NIBBLER AND BREAKER (L=2.2MT), HYD. LINES 88.035.18(01) - DIA KIT - NIBBLER AND BREAKER (L=2.6MT), HYD. LINES 88.035.19(01) - DIA KIT - NIBBLER AND BREAKER (L=3.1MT), HYD. LINES 88.035.20(01) - DIA KIT - NIBBLER AND BREAKER, HYD. LINES - VERSION 02 88.055.01(01) - DIA KIT - NIBBLER AND BREAKER - DOUBLE PEDAL 88.055.02(01) - DIA KIT, CAB, SWITCH 89.700.000 - SECTION INDEX - TOOLS 89.700.009 - HAMMER HOSE SET 89.700.010 - HAMMER ADAPTER PLATE 89.700.011 - HAMMER CB240S 89.700.012 - HAMMER ADAPTER PLATE 89.700.024 - HAMMER HOSE SET 90.100.01(01) - ENGINE HOOD 90.100.01(02) - ENGINE HOOD - BREAKDOWN 90.105.01(01) - HOODS - GUARDS 90.105.01(01A) - HOODS - GUARDS - ASN NELB04639 90.105.01(02) - HOODS - GUARDS 90.105.01(03) - HOODS - GUARDS 90.105.01(04) - HOODS - GUARDS 90.105.01(05) - HOOD, GUARD 90.105.02(01) - HOODS 90.105.02(02) - HOODS 90.105.02(03) - TOOL BOX 90.105.02(04) - HOODS 90.105.02(05) - HOODS 90.108.01(01) - DECALS - VERSION 01 90.108.01(02) - DECALS - VERSION 02 90.108.02(01) - DECALS - ENGINE 90.108.03(01) - DECALS - VERSION 01 90.108.03(02) - DECALS - VERSION 02 90.108.03(03) - DECALS 90.108.04(01) - LOAD HOOK, DECALS, VERSION 01 90.108.04(01) - LOAD HOOK, DECALS, VERSION 02 90.108.05(01) - WARNING DECAL 90.114.01(01) - HANDRAIL - END YR 14-MAR-2015 90.114.01(01A) - HANDRAIL - END YR 15-MAR-2015 90.114.01(02) - HANDRAIL 90.114.0101(01) - VAR - 461569 - HANDRAIL - ASN NELB04639 90.114.02(01) - VAR - 461150, 461151, 461153, 461155, 461252, 461253,461254, 461256 - STEP - LH 90.114.02(02) - VAR - 461150, 461151, 461153, 461155, 461252, 461253,461254, 461256 - STEP - LH BREAKDOWN 90.114.0201(01) - VAR - 781101 - STEP - RH WITH TOOLBOX 90.114.0201(02) - VAR - 781101 - STEP - RH WITH TOOLBOXCOMPONENTS 90.114.03(01) - VAR - 781349 - TRANSPORT BRACKET 90.114.0301(01) - VAR - 461115 - TRANSPORT BRACKET WITH BLADE 90.116.01(01) - HOODS - LOWER GUARDS 90.118.01(01) - MIRRORS - VERSION 01 90.118.01(02) - MIRRORS - VERSION 02 90.118.02(01) - MIRRORS 90.119.AB - HOOD, FLOOR MAT 90.124.01(01) - SEAT 90.124.01(02) - SEAT 90.124.01(03) - SEAT SUSPENSION - BREAKDOWN 90.150.01(01) - CAB 90.150.01(02) - CAB - MISCELLANEUS PARTS 90.150.02(01) - CAB - SUPPORT SHOCK ABSORBER 90.150.03(01) - CAB FLOOR - BSN NDLB04544 90.150.03(01A) - CAB FLOOR - ASN NDLB04543 90.150.03(02) - CAB - FLOOR 90.150.03(04) - LOCK PIN 90.150.04(01) - VAR - 781282, 781283 - FOPS GUARDS 90.150.04(02) - VAR - 781282 - FOPS GUARDS 90.151.01(01) - CAB - SUNVISOR PROTECTION 90.154.01(01) - CAB - DOOR 90.154.01(02) - CAB - DOOR UNLOCK SYSTEM 90.154.01(03) - CAB DOOR, COMPONENTS 90.156.01(01) - CAB - GLASSES 90.156.01(02) - CAB - WIPER SYSTEM 90.156.01(03) - CAB - FRONT WINDOW 90.156.01(04) - CAB - FRONT WINDOW 90.160.01(01) - FLOOR MAT 90.160.01(02) - PEDAL INSTAL 90.160.0101(01) - VAR - 461533, 461534, 461535 - FLOOR MAT 90.160.02(01) - CAB - REAR AIR FILTER 90.160.03(01) - CAB - INSTRUMENT PANELS 90.160.03(02) - CAB - INSTRUMENT PANELS 90.160.03(03) - CAB - INSTRUMENT PANELS 90.160.04(01) - BRACKET INSTELL.MATERIAL - END SR NDLB04471 90.160.04(01A) - BRACKET INSTELL.MATERIAL - BEGIN SR NDLB04472 90.160.04(02) - BRACKET INSTELL.MATERIAL 90.160.04(03) - BRACKET INSTELL.MATERIAL

1

2

3

3

4

4

5

5

6

6

7

8

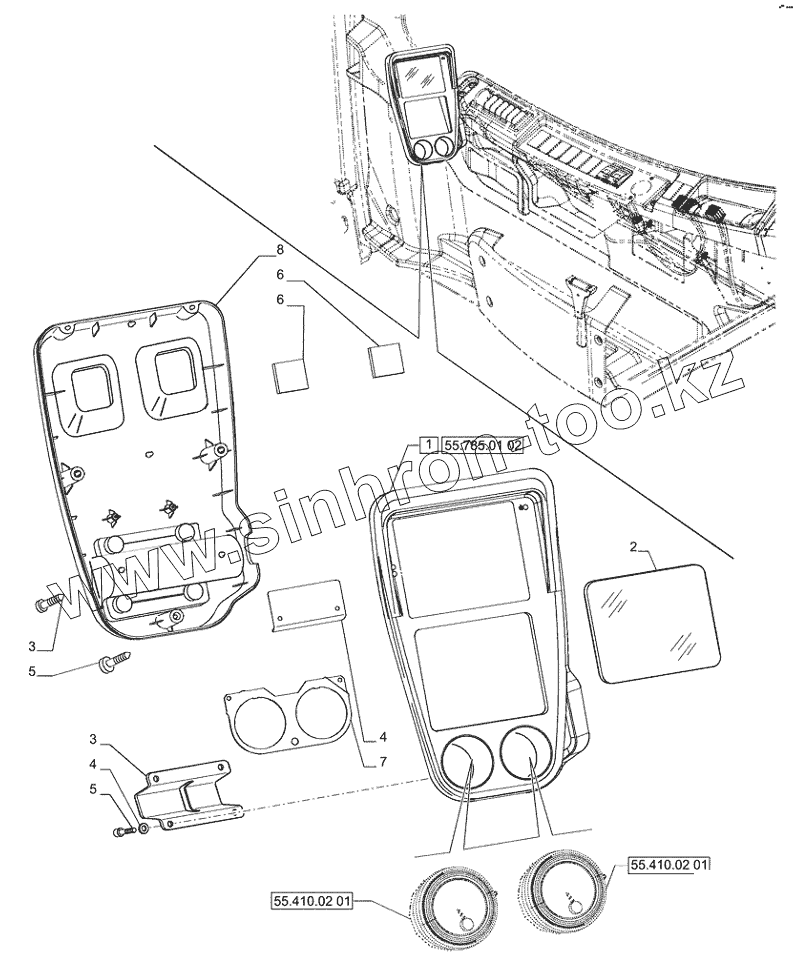

Позиция на иллюстрации	Заводской номер детали		Название детали
1	84297070		COVER
2	47794051		DISPLAY
3	84316597		BRACKET
4	86588450		WASHER
5	63582		HEX SOC SCREW
6	84307097		INSULATOR
7	84325307		BRACKET
8	84297080		COVER
9	15957377		SCREW
10	15957177		SELF-TAP SCREW
11	84307094		BRACKET

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
