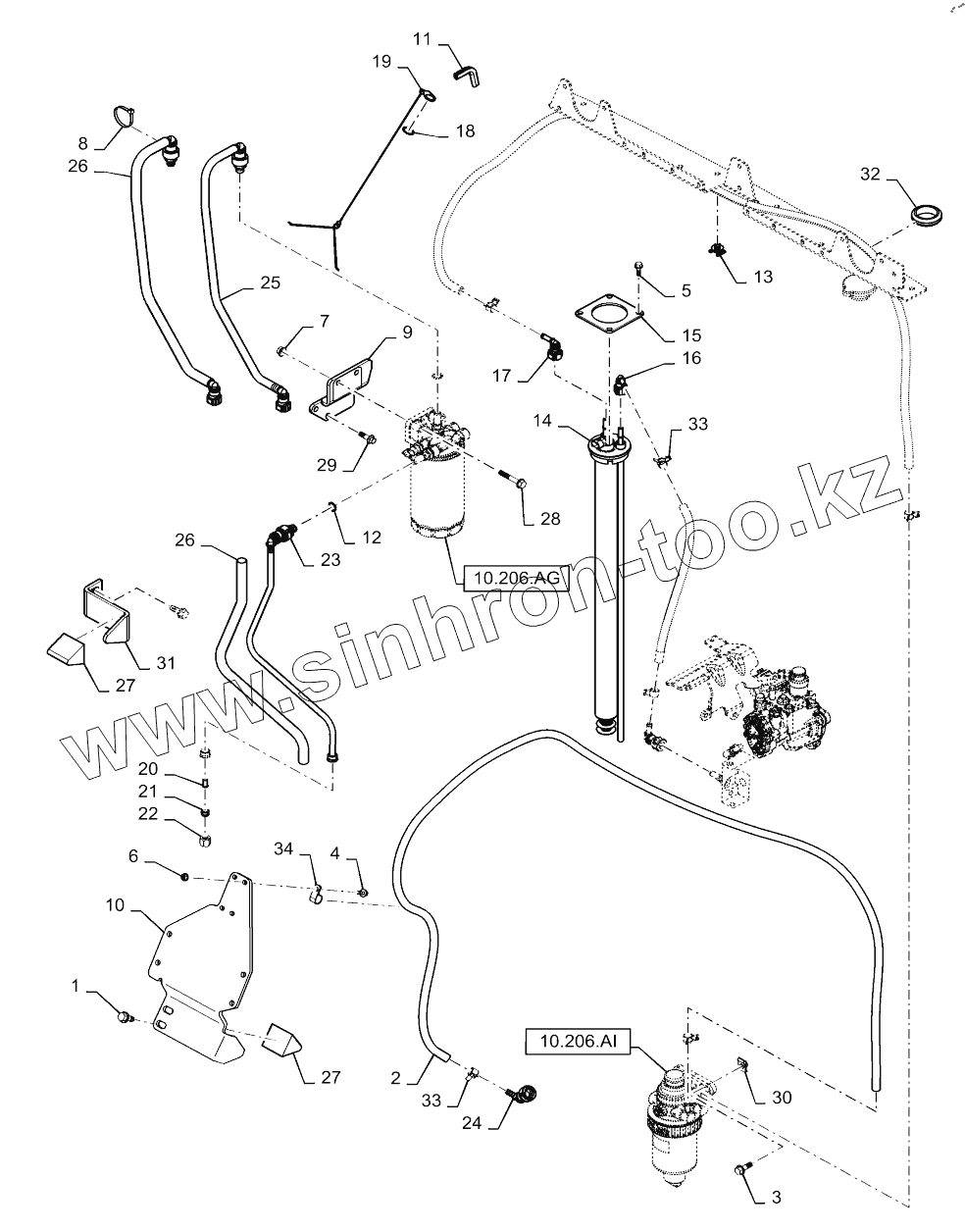

Каталог запасных частей к технике: CASE IH TR270. FUEL LINE & TANK

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
31
32
33
33
34
Позиция на иллюстрации Заводской номер детали Название детали
1 280476 SCREW
2 290323 HOSE 0.31" ID, SAE 30R7 13.9'
3 9804260 BOLT, Hex Flg, M8 x 30, 8.8, Full Thd
4 9804255 BOLT, Hex Flg, M6 x 16, 8.8
5 9804256 SCREW
6 9804276 NUT, M6 x 1, Flg, Cl 8
7 9804277 NUT
8 L11541 CABLE TIE
9 47369884 BRACKET Chassis Mounted, Fuel Filter
10 47369931 BRACKET ECU Mounting
11 87702286 TRIM 80mm, Edge Channel
12 47566816 FITTING Fuel, 11.8mm x 5/16"
13 84259663 SECURING STRAP 228.60mm L, W/ HD Fir Tree Mount
14 84268571 SENDER UNIT Fuel
15 84338049 MOUNTING PLATE Sender
16 84350217 HYD CONNECTOR Fuel, 90є Elbow, 5/16", Plastic
17 84350218 HYD CONNECTOR Fuel, 90є Elbow, 3/8", Plastic
18 84367737 LOCK WASHER Fuel Cap
19 84370069 CHAIN (CE) Fuel Cap
20 84546407 SLEEVE Compression, 10mm - 7.50mm x 15mm L
21 84546409 RING 10mm
22 84546410 NUT M16 x 1.5 - 10mm, 15.50mm High
23 84546411 FUEL TUBE Radial
24 84553918 FITTING 90є, Fuel, 3/8"
25 84557161 FUEL TUBE 12.50mm OD x 405.10mm, W/ Elbow Fittings
26 87580074 CONDUIT Bulk, 12.95mm ID x 17.32mm OD x 15240mm L 45'
27 84602030 PAD Foam
28 86511481 BOLT, Hex Flg, M8 x 50, 8.8
29 87016557 SELF-TAP SCREW, Hex Flg Hd, M8 x 25
30 87037711 SPRING NUT U, Multi-Thd Sht, M8, PLN
31 87054825 SUPPORT Tank
32 87423314 GROMMET
33 87436932 CLAMP Hose, CTB,15mm ID
34 87532034 RETAINER COLLAR 15.9mm
