TR270
FOOT CONTROLS MOUNTING ASSEMBLY

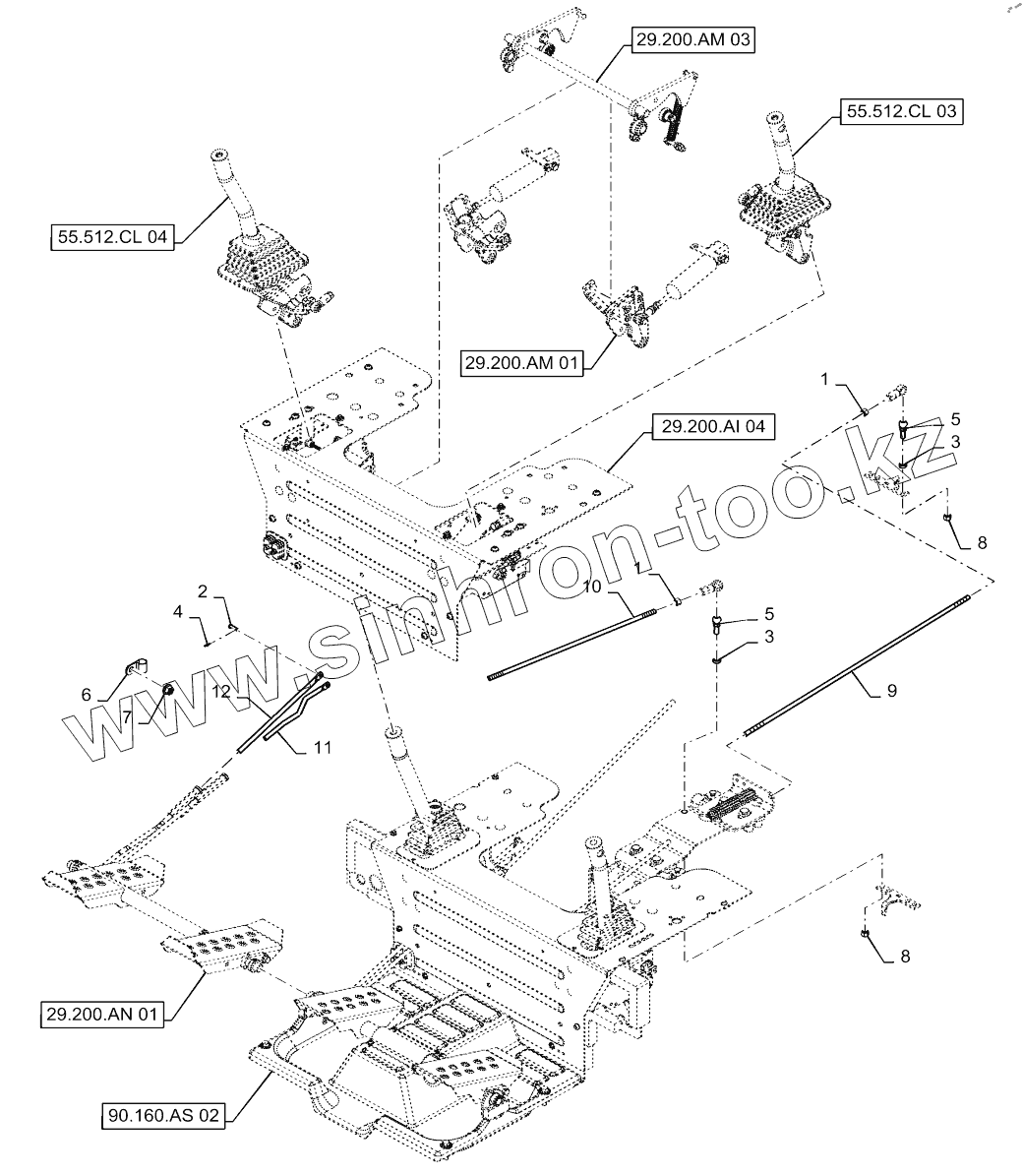

Каталог запасных частей к технике: CASE IH TR270. FOOT CONTROLS MOUNTING ASSEMBLY
