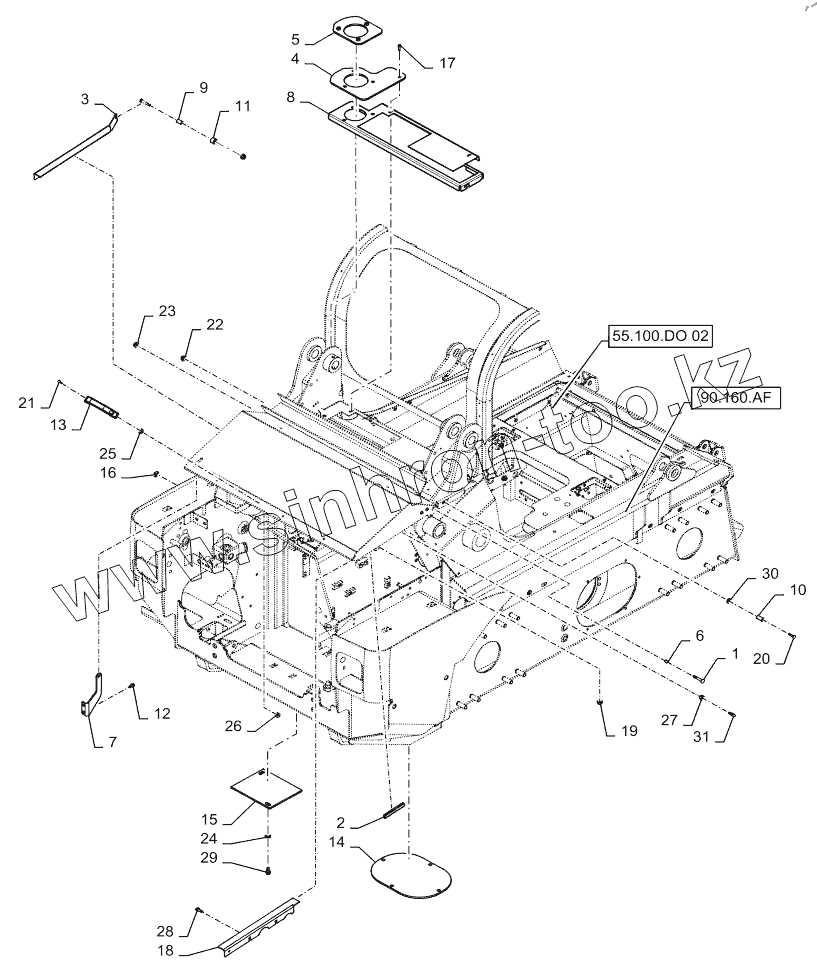

Каталог запасных частей к технике: CASE IH TR270. ENGINE HOOD, REAR PANEL SUPPORT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Позиция на иллюстрации Заводской номер детали Название детали
1 120039 CARRIAGE BOLT, Short NK, M8 x 50, Cl8.8, Full Thd
2 291186 PROTECTION
3 47363956 ANGLE Hood Stop, LH
4 47434237 BRACKET Stiffner Rear Deck
5 47434973 BRACKET Stiffner
6 47435764 SPACER 6.30mm ID x 9.50mm OD x 13mm L, Plastic
7 47467486 ANGLE Rear Lock Tab
8 47495676 ANGLE Rear Deck
9 47513565 SPACER Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L
10 47513620 SPACER Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L
11 47513658 SPACER X-Pipe,13.87mm ID x 21.34mm OD x 15.88mm L
12 84285339 SELF-TAP SCREW
13 406256A1 HANDLE
14 84299800 COVER PLATE, Gray
15 84299809 COVER PLATE, Plumbing Access
16 229197A1 NUT
17 84305556 SCREW
18 84605091 ANGLE Hood Stop
19 86511444 NUT
20 86511827 SCREW
21 86512441 CARRIAGE BOLT, Short NK, M6 x 30, Cl8.8, Full Thd
22 86619800 NUT
23 86619801 FLANGE NUT
24 86625264 LOCK WASHER, Ext Tooth, M5, Used to mount Ref. 12 (Not Shown)
25 86625264 LOCK WASHER, Ext Tooth, M5, Used to mount Ref. 12 (Not Shown)
26 86629542 NUT
27 86639241 NUT
28 87016557 SELF-TAP SCREW, Hex Flg Hd, M8 x 25
29 87030529 SCREW
30 87655041 SPECIAL WASHER
31 189609A1 STUD
