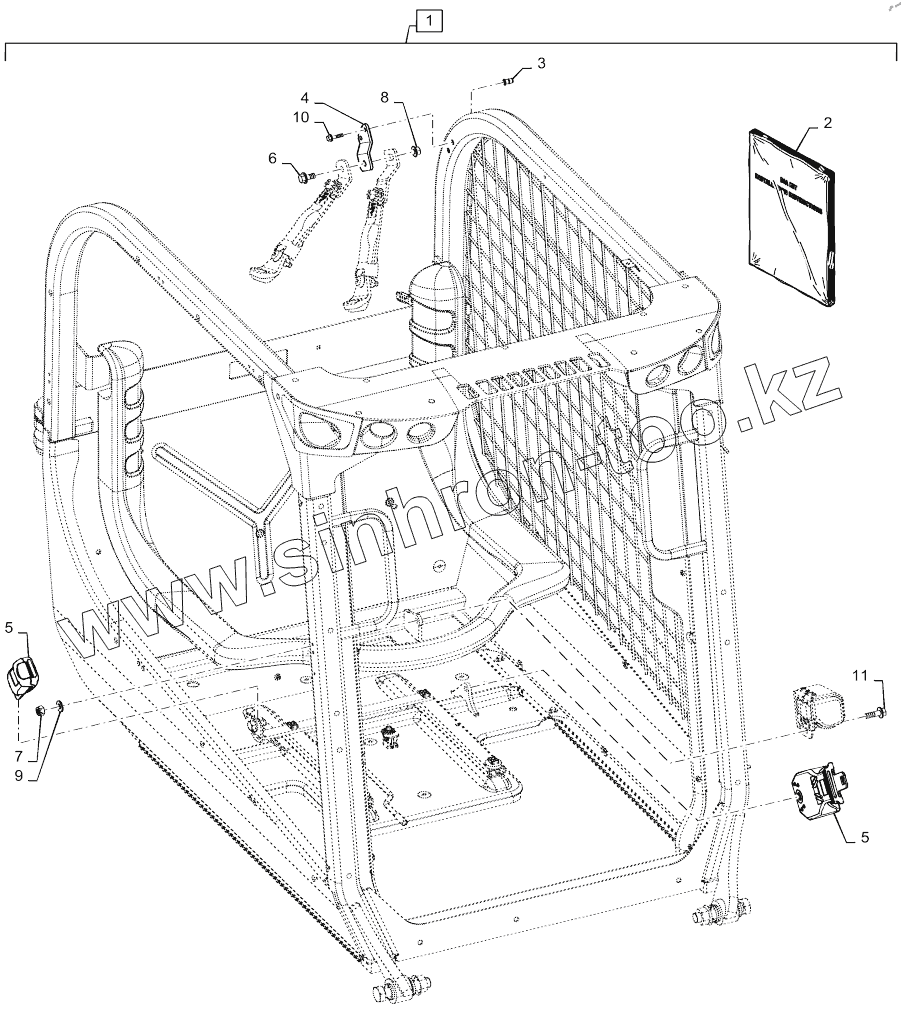

Каталог запасных частей к технике: CASE IH TR270. DIA KIT, 3 POINT SEAT BELT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 595LSP, 595SLE (2010) 695ST (часть 1) (2015) 695ST (часть 2) (2015) 695ST (часть 3) (2015) 695ST Tier 4A (часть 1) (2012) 695ST Tier 4A (часть 2) (2012) 695ST Tier 4A (часть 3) (2012) 821F (2011) 845 (2002) 921F (2011) Case-430 (2005) Case-570T (2010) Case-580T (часть 1) (2012) Case-580T (часть 1) (2016) Case-580T (часть 2) (2012) Case-580T (часть 2) (2016) SR250 (2012) SV300 (2012) TR270 (2014) TR320 (2012) TV380 (2012) WX-188 (часть 1) (2014) WX-188 (часть 2) (2014)

Схема > Не выбрано INITIAL STOCKING LIST, LIST A - PARTS REQUIRED FOR PLANNED MAINTENANCE INITIAL STOCKING LIST, LIST B - PARTS RECOMMENDED FOR PLANNED MAINTENANCE AND BASIC REPAIR FILTERS & CAPACITIES FILTERS ENGINE ENGINE MOUNT AIR FILTER, ASSY AIR FILTER, LINES, ELECTRONIC CONTROLS AIR CLEANER - AIR INTAKE PARTS FUEL FILTER, LINES FUEL FILTER/WATER SEPARATOR FUEL LINE & TANK FUEL TANK & ASSOCIATED PARTS FOOT THROTTLE HAND THROTTLE, FOOT CONTROLS REMOTE ENGINE FILTER LINES OIL, FILLER CAP REMOTE OIL LINE DIPSTICK RADIATOR & COOLER FAN SHROUD ENGINE FAN STANDARD FAN BELT HIGH FLOW FAN BELT FAN BELT EU SLOW SPEED CRANKSHAFT PULLEY PM CATALYST HAND CONTROLS MOUNTING ASSEMBLY HANDLE, MOUNTING, HAND CONTROLS FOOT CONTROLS MOUNTING ASSEMBLY HANDLE MOUNTING, FOOT CONTROLS HANDLE MOUNTING, E-H CONTROLS CONTROL ROD SHIELD HAND CONTROL INTERLINK CONTROL DAMPENING FOOT CONTROL INTERLINK, SERVO PUMP CENTERING PEDAL MOUNTING, FOOT CONTROLS , FOOT, CONTROLS HYDROSTATIC PUMP, DRIVE LINES, MECHANICAL CONTROLS HYDROSTATIC PUMP, SUPPLY LINES, MECHANICAL CONTROLS HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS HYDROSTATIC PUMP, SUPPLY LINES, E-H CONTROLS TANDEM HYDROSTATIC PUMP, 46CC, MECHANICAL CONTROL, FRONT TANDEM HYDROSTATIC PUMP, 46CC, MECHANICAL CONTROL, REAR TANDEM HYDROSTATIC PUMP, 45CC, E-H CONTROL STANDARD GEAR PUMP HIGH FLOW GEAR PUMP HYDRAULIC SUPPLY PLUMBING HYDRAULIC RETURN PLUMBING HYDRAULIC FLUID RESERVOIR HYDRAULIC OIL FILTER BRAKE VALVE, MECHANICAL CONTROLS BRAKE VALVE, E-H CONTROLS 2 SPEED DRIVE MOTOR TRAVEL SPEED, 2 SPEED TRAVEL SPEED, E-H LOADER CONTROL VALVE, HAND CONTROLS LOADER CONTROL VALVE, FOOT CONTROL LOADER CONTROL VALVE, E-H CONTROLS LOADER, CONTROL VALVE E-H CONTROLS AUXILIARY CHASSIS PLUMBING, STANDARD FLOW AUXILIARY BOOM ARM PLUMBING, STANDARD FLOW AUXILIARY CHASSIS PLUMBING, HIGH FLOW AUXILIARY BOOM ARM PLUMBING, HIGH FLOW HIGH FLOW COMBINER VALVE LOADER VALVE PLUMBING BOOM HYDR LINES NO RIDE CONTROL RIDE CONTROL LINES NO SELF LEVELING SELF LEVEL VALVE BOOM LIFT CYLINDER BUCKET CYLINDER HYDRAULIC COUPLER CHASSIS PLUMBING HYDRAULIC COUPLER BOOM ARM PLUMBING CHASSIS LIFT HOOKS, 4 POINT, EURO ONLY COUNTERWEIGHT BOOM LOCK RUBBER TRACK TRACK ASSY TRACK, COVERS HEATER PLUMBING HEATER MEDIUM FRAME OPEN CAB, NO HEAT OR HVAC HVAC HEATER ASSY HVAC MEDIUM FRAME A/C COMPRESSOR MOUNTING CONDENSER, ASSY RECEIVER-DRYER AIR CONDITIONER, PLUMBING ELECTRONIC CONTROL UNIT HYDROSTATIC PUMP TEMPERATURE SENDER STANDARD 60 AMP FUSE FUSE COVER ASSY AND CUP HOLDER MAIN ELECTRICAL, MECHANICAL CONTROLS, OPEN CAB MAIN ELECTRICAL, MECHANICAL CONTROLS, ENCLOSED CAB CHASSIS OPTION HARNESS, MECHANICAL CONTROLS ONLY MAIN ELECTRICAL, E-H CONTROLS, OPEN CAB MAIN ELECTRICAL, E-H CONTROLS, ENCLOSED CAB STARTER MOTOR BLOCK HEATER BLOCK HEATER, 220V, EURO ALTERNATOR BATTERY NO BATTERY DISCONNECT BATTERY DISCONNECT ENGINE ELECTRICAL FRONT LIGHT, ASSY FRONT LIGHT, ASSY LIGHT ASSY, 90 DEGREE, LH LIGHT ASSY, 90 DEGREE, RH ROAD LIGHTS, EU ONLY REAR LIGHT NO TURN SIGNAL LIGHT LIGHT CONSOLE SWITCH ROAD LIGHTS BRAKE SWITCH HORN BACKUP ALARM ACCESSORIES SOCKET ACCESSORIES SOCKET EU ONLY A-POST CONSOLE, LH SWITCHES A-POST CONSOLE, LH BLANKS A-POST CONSOLE, RH, SWITCHES A-POST CONSOLE, RH BLANKS ELECTRONIC CONTROL UNIT, GLOW PLUG INSTRUMENT CLUSTER AND KEYED IGNITION, OPEN CAB INSTRUMENT CLUSTER AND KEYLESS IGNITION, ENCLOSED CAB NO MULTIFUNCTION ELECTRICAL MULTIFUNCTION ELECTRICAL LH SUB HANDLE, HAND CONTROLS RH SUB HANDLE, HAND CONTROLS LH SUB HANDLE, FOOT CONTROLS RH SUB HANDLE, FOOT CONTROLS HANDLE GRIP, MECHANICAL CONTROLS, RIDE CONTROL, 2 SPEED, LEVEL 200 HANDLE GRIP, MECHANICAL CONTROLS, MULTIFUNCTION ELECTRICAL, LEVEL 300 HANDLE GRIP, E-H CONTROLS, RIDE CONTROL, 2 SPEED, LEVEL 250 HANDLE GRIP, E-H CONTROLS, MULTIFUNCTION ELECTRICAL, LEVEL 350 WINDSHIELD WASHER RESERVOIR ASSY WINDSHIELD WASHER RESERVOIR REAR WINDSHIELD WASHER RESERVOIR ELECTRONIC CONTROL UNIT, TELEMATICS TELEMATICS, RADIAL LOADER ARM SERVICE HUBS LOADER ARM COUPLER SERVICE KIT, COUPLER FRAME MANUAL COUPLER BUCKET, 66", LOW PROFILE, GRAY BUCKET, 66", EXTENDED LOW PROFILE, GRAY BUCKET, 66", HEAVY DUTY DIRT, GRAY BUCKET, 66", DIRT AND FOUNDRY, GRAY BUCKET SPILL GUARD, 66" BUCKET BUCKET, 72", LOW PROFILE, GRAY BUCKET, 72", EXTENDED LOW PROFILE, GRAY BUCKET, 72", LIGHT MATERIAL, GRAY BUCKET, 72", HEAVY DUTY DIRT, GRAY BUCKET, 72", DIRT AND FOUNDRY, GRAY BUCKET, 72", SLURRY, GRAY BOLT ON CUTTING EDGE, 72" BUCKET BUCKET SPILL GUARD, 72" BUCKET BUCKET, 78", EXTENDED LOW PROFILE, GRAY BUCKET, 78", HEAVY DUTY DIRT, GRAY BUCKET, 78", DIRT AND FOUNDRY, GRAY BOLT ON CUTTING EDGE, 78" BUCKET BUCKET SPILL GUARD, 78" BUCKET BUCKET, 84", EXTENDED LOW PROFILE, GRAY BUCKET, 84", LIGHT MATERIAL, GRAY BUCKET, 84", SLURRY, GRAY BOLT ON CUTTING EDGE, 84" BUCKET BOLT ON CUTTING EDGE, 78" BUCKET KIT, BUCKET BOLT- ON TOOTH DIA KIT, FIRE EXTINGUISHER DIA KIT, ASPIRATOR RADIAL DIA KIT, BLOCK HEATER 120V NA DIA KIT, BLOCK HEATER 220V - ROW DIA KIT, RIDE CONTROL, CASE MED-LRG DIA KIT, FOOT CONTROLS, T4 DIA KIT, HANDLE - 350 CASE RH - EH DIA KIT, CYLINDER GUARD DIA KIT, ATTACHMENT HOSE GUIDE, MANUAL COUPLER DIA KIT, ATTACHMENT HOSE GUIDE, HYDRAULIC COUPLER DIA KIT, SELF LEVEL, RADIAL DIA KIT, 2ND FRONT HYDRAULIC AUXILIARY, RADIAL BOOM DIA KIT, HIGH FLOW AUXILIRAY, RADILA BOOM DIA KIT, HYDRAULIC COUPLER, RADIAL BOOM DIA KIT, COUNTERWEIGHT MF CASE DIA KIT, 4 POINT LIFT HOOK DIA KIT, TRACK COVERS, MEDIUM FRAME (TR270) DIA KIT, COMPLETE HVAC DIA KIT, COMPLETE HEAT DIA, KIT COOLER, AIR CHARGE, STD FIN DENSITY DIA, KIT COOLER, AIR CHARGE, LOW FIN DENSITY DIA KIT - F5C AC PLUMBING DIA KIT, HEATER, AIR CONDITIONER, COMPONENTS DIA KIT, F5C HEAT HOSES DIA KIT, MECHANICAL JUMPER HARNESS DIA KIT, E-H JUMPER HARNESS DIA KIT - 90 DEGREE HD LIGHT DIA KIT, BEACON DIA KIT, STROBE LIGHT DIA KIT, RADIO DIA KIT, EU ROAD LIGHTS CASE MED RADIAL DIA KIT, MULTIFUNCTION ELECTRICAL, RADIAL BOOM DIA KIT, MULTIFUNCTION ELECTRICAL EH DIA KIT, HANDLE - 300 CASE LH - NO 2ND AUX - MECH DIA KIT, HANDLE - 300 CASE RH - MECH DIA KIT, HANDLE - 350 CASE LH - NO 2ND AUX - EH DIA KIT, HANDLE LEVEL 400, LH WITH 2ND AUXILIARY, MECHANICAL CONTROLS DIA KIT, HANDLE - 450 CASE LH - 2ND AUX - EH DIA KIT, MED FRAME HAND CONTROLS DIA KIT, MECH CHASSIS OPT HARNESS MD DIA KIT, SIDE LAMP DIA KIT, TELEMATICS DIA KIT, ITALY SPECIFIC PARTS DIA KIT, BOOM SECTION DIA KIT, COUPLER CROSS TUBE REINFORCEMENT DIA KIT, SINGLE PT MED RAD DIA KIT, PALLET FORK 48" TINES DIA KIT, ROPS SERVICE WELDMENT DIA KIT, FOPS LEVEL 2 MODS DIA KIT, MIRROR DIA, KIT, DRAWBAR DIA KIT, 3 POINT SEAT BELT DIA KIT, CAB SIDE WINDOWS DIA KIT, GLASS FRONT DOOR DIA KIT, DEMO DOOR DIA KIT, REAR EXT ACCESS WINDOW DIA KIT, 3IN LAP BELT (ALL CASE) DIA KIT, REMOVABLE TOP WINDOW DIA KIT, RH, SIDE SCREEN DIA KIT, INTERIOR TRIM, CASE, EURO DIA KIT, INTERIOR TRIM, CASE DIA KIT, LH, SIDE SCREEN DIA KIT, DEBRIS SOFT PARTS DIA KIT, CAB LOCK AIR CONDITIONER BRACKET ENGINE HOOD, REAR PANEL SUPPORT REAR DOOR REAR HOOD ASSY HOOD, NO HVAC INSULATION, SOUNDPROOFING, CAB EURO INSULATION, SOUNDPROOFING, OPEN CAB, EURO DECALS CONTROL DECALS DECAL, CANADA SPECIFIC DECALS, FOOT, CONTROLS LOADER ARM STOP, 23MM STOP, 14" TIRE CHASSIS VENT PANEL SEAT, NON-SUSPENSION, MOUNTING SEAT, MECHANICAL SUSPENSION, MOUNTING OPERATOR MANUAL LOCK, EURO ONLY SEAT, AIR SUSPENSION, MOUNTING CAB CAB SEALING STRIP, REAR CAB FASTENERS CAB TILT LOCK GAS STRUT, OPEN CAB, NO HEAT OR HVAC GAS STRUT, WITH HVAC OR HEAT ONLY SEAT BELT, 2" LAP BELT SEAT BELT, 3 PT, LAP AND SHOULDER BELT LAP BAR LAP BAR STOP REAR VIEW MIRROR, EURO ONLY GLASS DOOR MOUNTING GLASS DOOR ASSY GLASS DOOR ASSY - AFTER FEB 1, 2013 GLASS DOOR JAM ASSY DEMO DOOR MOUNTING DEMO DOOR ASSY DEMO DOOR ASSY DEMO DOOR JAM ASSY REAR WINDOW, WITHOUT REAR WIPER REAR WINDOW, WITH REAR WIPER UPPER WINDOW SIDE WINDOW ASSY CAB HARNESS SEAL FLOOR MAT, MECHANICAL HAND CONTROL FLOOR MAT, MECHANICAL FOOT CONTROLS FLOOR MAT, E-H CONTROLS FLOOR PLATE, HAND AND E-H CONTROLS FLOOR PLATE, FOOT CONTROLS CAB HEADLINER, NO RADIO CAB HEADLINER, WITH RADIO TRIM, OPEN CAB TRIM INTERIOR ENCLOSED CAB TRIM

1

2

3

4

5

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	47462564		KIT 3 Point Seat Belt, Incl 2 - 11
2	47462568		INSTRUCTION Sheet, 3 Point Seat Belt
3	84272827		RIVET, M6x1.0 (Not Shown)
4	84291791		BRACKET, Plate, C-Belt 3 Pt Retractable
5	47444752		SEAT BELT 3 Point
6	86050286		FLANGE BOLT, Hex, M10 x 20, 8.8, Full Thd
7	86512554		NUT
8	86619802		LOCK NUT, Flange
9	87655046		SPECIAL WASHER
10	9804257		FLANGE BOLT, Hex Flg, M6 x 25, 8.8
11	9804262		BOLT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
