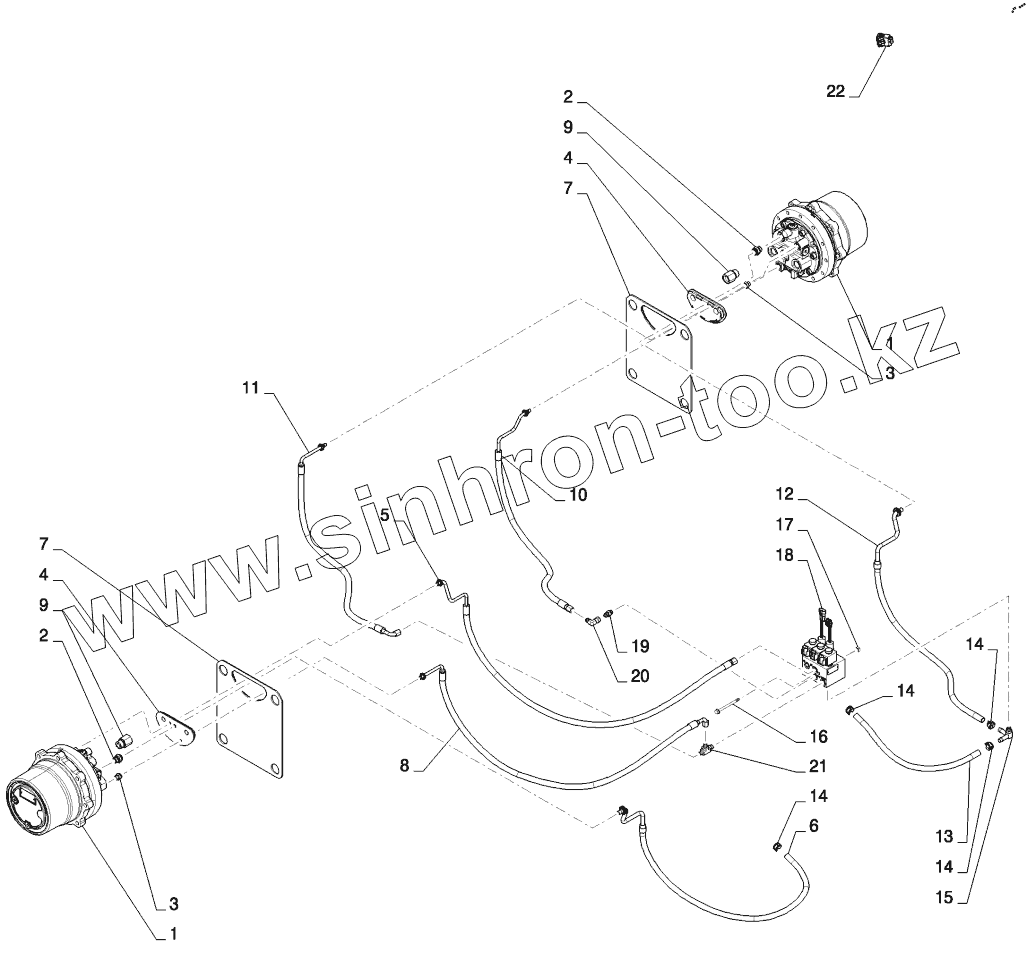

Каталог запасных частей к технике: CASE IH SR250. TRAVEL SPEED, 2 SPEED (TR320,TV380)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
4
5
6
7
7
8
9
9
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
22
Позиция на иллюстрации Заводской номер детали Название детали
1 87588897 MOTOR-PUMP, 2-Spd Motor, Track Drive
2 84277065 ADAPTER, 8FQLL-8MB
3 84277064 ADAPTER, 6FQLL-6MB
4 84331670 GROMMET, Chassis
5 84280449 RIGID TUBE, Assy, Brake RH
6 84280444 RIGID TUBE, Assy, Case Drain RH, Must Order Ref.9 Adapter
7 84331873 GROMMET, Grommet, Gray
8 84280452 FLEXIBLE HOSE, Assy, Two Speed RH, Must Order Ref. 3 Adapter
9 84277066 ADAPTER, 12FQLH-12MB
10 84280448 RIGID TUBE, Assy, Brake LH
11 84280451 FLEXIBLE HOSE, Assy, Two Speed LH, Must Order Ref. 2 Adapter
12 84280443 RIGID TUBE, Assy, Case Drain LH, Must Order Ref. 9 Adapter
13 84257173 HOSE, Brake Drain
14 87019540 CLAMP, 19mm
15 84187294 ADAPTER, Fitting
16 86511844 BOLT, Flange, 8.8, M8 x 100
17 229197A1 NUT
18 84522943 VALVE, Mechanical Track Brake Valve, See Ref 23 -26
19 76350 CONNECTOR
20 86629586 ELBOW, 90є, 9/16"-18, 37є x 9/16"-18, 37є Fem Sw
21 86513020 CONNECTOR
22 84388282 INDICATOR, High Speed Indicator
23 84390142 COIL, 2 Speed (Not Shown)
24 84311809 SEAL KIT, Brake, Interlock, 2 Speed Seal (Not Shown)
25 84311808 HYDRAULIC VALVE, Brake, Interlock, 2 Speed 3W2P Spool (Not Shown)
26 84390141 COIL, Brake (Not Shown)
