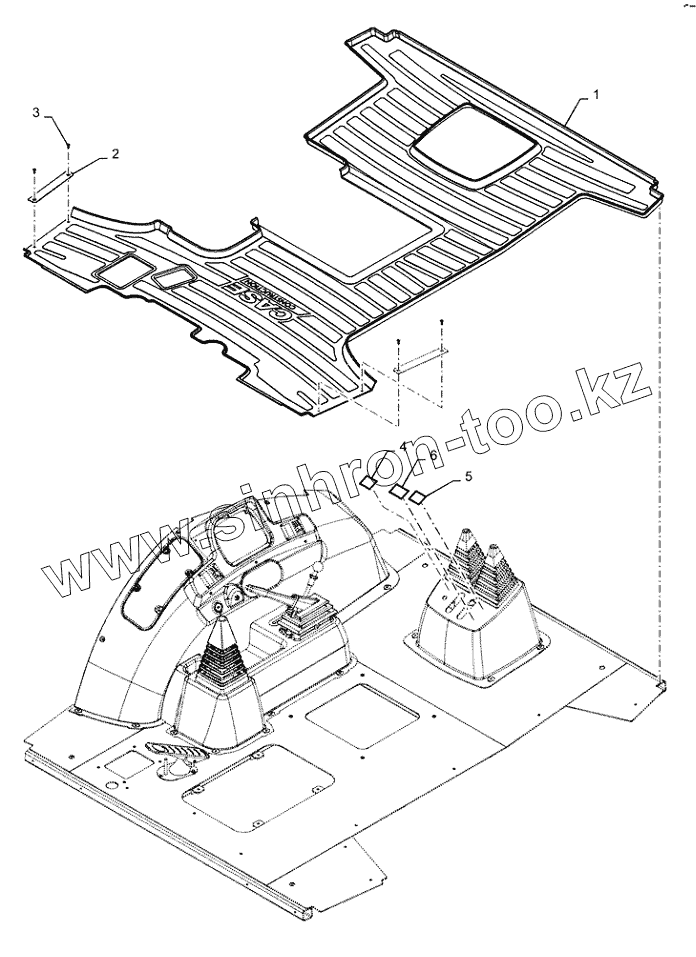

Каталог запасных частей к технике: CASE IH Case-570T. 90.150.AW(01) - CAB FLOOR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 595LSP, 595SLE (2010) 695ST (часть 1) (2015) 695ST (часть 2) (2015) 695ST (часть 3) (2015) 695ST Tier 4A (часть 1) (2012) 695ST Tier 4A (часть 2) (2012) 695ST Tier 4A (часть 3) (2012) 821F (2011) 845 (2002) 921F (2011) Case-430 (2005) Case-570T (2010) Case-580T (часть 1) (2012) Case-580T (часть 1) (2016) Case-580T (часть 2) (2012) Case-580T (часть 2) (2016) SR250 (2012) SV300 (2012) TR270 (2014) TR320 (2012) TV380 (2012) WX-188 (часть 1) (2014) WX-188 (часть 2) (2014)

Схема > Не выбрано 05.100.01 - INITIAL STOCKING LIST (LIST A) 05.100.02(01) - INITIAL STOCKING LIST (LIST B) 05.100.02(02) - INITIAL STOCKING LIST (LIST B) 05.100.03(01) - FILTERS 10.001.AD(01) - ENGINE 10.001.AK(01) - ENGINE 10.001.AM(01) - ENGINE, SUPPORT AND PLATE 10.101.AA(01) - ENGINE, CYLINDER HEAD 10.102.AK(01) - ENGINE, CYLINDER BLOCK 10.102.AP(01) - ENGINE, OIL PAN 10.102.BB(01) - ENGINE, TIMING COVER 10.103.AA(01) - ENGINE CRANK SHAFT ASSY 10.103.AK(01) - ENGINE FLYWHEEL, HOUSING 10.105.AB(01) - ENGINE, CONNECTING ROD AND PISTON ASSY 10.106.AA(01) - ENGINE CAM SHAFT AND VALVES 10.106.AM(01) - ENGINE IDLER GEAR 10.114.AB(01) - ENGINE, FUEL INJECTION PUMP AND TIMING GEARS 10.202.AB(01) - AIR CLEANER ASSY AND MOUNTING 10.202.AB(02) - AIR CLEANER ASSY 10.206.AG(01) - FUEL FILTER AND CIRCUIT 10.206.AG(02) - ENGINE, FUEL FILTER ASSY 10.206.AG(03) - FUEL FILTER ASSY 10.206.AG(04) - FUEL FILTER 10.210.AF(01) - ENGINE, FUEL LINE SYSTEMS 10.210.AO(01) - ENGINE, FUEL FEED PUMP 10.216.AI(01) - FUEL TANK AND MOUNTING 10.216.AI(02) - FUEL TANK 10.218.AF(01) - ENGINE, FUEL INJECTORS 10.250.AC(01) - ENGINE, TURBOCHARGER ASSY 10.254.AC(01) - ENGINE, TURBO EXHAUST MANIFOLD 10.254.AD(01) - EXHAUST STACK ASSY 10.254.AD(02) - EXHAUST MUFFLER ASSY 10.254.AI(01) - MUFFLER 10.254.AM(01) - ENGINE, INTERNAL MANIFOLD 10.304.AC(01) - ENGINE, OIL PUMP ASSY 10.304.AE(01) - ENGINE, OIL FILTER AND COOLER ASSY 10.400.AY(01) - RADIATOR HOSE AND MOUNTING 10.400.AY(02) - HYDRAULIC OIL COOLER CIRCUIT 10.400.AY(03) - CHARGE AIR COOLER - TUBES 10.400.BB(01) - ENGINE, WATER PUMP ASSY 10.400.BE(01) - COOLING SYSTEM ASSEMBLY 10.400.BE(02) - RECOVERY TANK & MOUNTING 10.400.BF(01) - RADIATOR GASKET MOUNTINGS 10.414.AC(01) - FAN ASSY 10.414.AC(02) - FAN ASSY 10.414.AD(01) - ENGINE FAN PULLEY AND THERMOSTAT CONNECTIONS 21.104.AL(01) - CHARGE PUMP 2WD AND 4WD 21.104.AP(02) - OIL FILTER, 4WD 21.104.AP(01) - OIL FILTER, 2WD 21.112.AC(01) - TRANSMISSION AND MOUNTINGS 2WD 21.112.AC(02) - HOUSING, 2WD 21.112.AC(03) - TRANSMISSION AND MOUNTINGS - 4WD 21.112.AC(04) - HOUSING, 4WD 21.112.AF(01) - DIPSTICK 2WD AND 4WD 21.134.AI(01) - GEAR SHIFT LEVER 2WD & 4WD 21.134.AM(01) - SOLENOID, 4WD 21.154.AJ(01) - INPUT AND PTO TRANSMISSION SHAFT, 2WD AND 4WD 21.154.AJ(02) - SECONDARY SHAFT, 2WD 21.154.AJ(03) - SHAFT, 4WD 21.154.AJ(04) - SECONDARY SHAFT - 4WD 21.154.AL(01) - GEAR SHAFT, 2WD AND 4WD 21.154.AL(03) - TORQUE CONVERTER , 2WD AND 4WD 21.154.AL(02) - CONTROL VALVE, 2WD AND 4WD 21.154.AO(01) - REVERSE AND PRIMARY SHAFT, 2WD AND 4WD 25.100.AA(01) - FRONT AXLE MOUNTING, 4WD 25.100.AD(01) - AXLE HOUSING, 4WD 25.100.AV(01) - DRIVE SHAFT, 4WD 25.100.AV(02) - SWIVEL HOUSINGS AND STEERING CYLINDER, 4WD 25.100.AV(03) - BEVEL GEAR SET, 4WD 25.100.AV(04) - DIFFERENTIAL, 4WD 25.100.AV(05) - DOUBLE U JOINT, 4WD 25.100.AV(06) - WHEEL HUB, 4WD 25.100.AV(07) - FINAL REDUCTION, 4WD 25.400.AF(01) - FRONT AXLE BUSHING AND SUPPORTS 25.400.AQ(01) - FRONT AXLE, KNUCKLE ASSY 25.400.AQ(02) - FRONT AXLE, KNUCKLE ASSY LH 25.400.AQ(03) - FRONT AXLE, KNUCKLE ASSY, RH 25.400.AQ(04) - STEERING CYLINDER, HOSES AND MOUNTING 25.400.AQ(05) - FRONT AXLE STEERING CYLINDER 27.100.AK(02) - REAR AXLE HOUSING 27.100.AK(01) - REAR AXLE AND MOUNTING 27.106.AA(01) - REAR AXLE, BEVEL GEAR SET 27.106.AC(01) - REAR AXLE, DIFFERENTIAL 27.106.AC(02) - BRAKES 27.106.AC(03) - WHEEL HUB 27.106.AC(04) - FINAL REDUCTION 27.106.AC(05) - BRAKE CALIPER 27.106.AC(06) - REAR DRIVE SHAFT 33.110.BK(01) - PARKING BRAKE ASSY 33.110.BK(02) - THROTTLE PEDAL INSTALLATION 33.202.AR(01) - BRAKE MASTER CYLINDER 33.202.AR(02) - BRAKE MASTER CYLINDER 33.202.AR(03) - BRAKE MASTER CYLINDER 33.202.BN(01) - BRAKE PEDALS 35.220.AA(01) - MAIN HYDRAULIC PUMP 35.220.AD(01) - HYDRAULIC PUMP INTAKE AND OUTLET HOSES 35.220.AD(02) - HYDRAULIC PUMP INTAKE AND OUTLET HOSES 35.300.AQ(01) - HYDRAULIC OIL TANK AND MOUNTING 35.300.AQ(02) - HYDRAULIC OIL TANK AND FILTER 35.359.AE(01) - LOADER AND BACKHOE VALVE AND HOSES 35.360.AA(01) - HAMMER VALVE 35.360.AA(02) - HAMMER VALVE 35.701.BR(01) - ANTI-ROLL CONTROLS 35.701.BU(01) - SELF-LEVELING LINKAGE, LOADER ARM 35.701.BU(02) - HYDRAULIC SYSTEM FOR BUCKET 6 IN 1 35.701.CB(01) - LOADER ARM ASSEMBLY 35.703.AD(01) - STABILIZER CYLINDER HYDRAULIC LINES 35.703.AG(01) - STABILIZER CYLINDER-LH 35.703.AG(02) - STABILIZER CYLINDER - RH 35.723.AA(01) - LOADER LIFT CYLINDER AND TUBING 35.723.AA(02) - LOADER TILT CYLINDER AND TUBING 35.723.AA(03) - LOADER TILT CYLINDER HOSES 35.723.AA(04) - LOADER LIFT AND BUCKET CYLINDER TUBING 35.723.AA(05) - LOADER LIFT CYLINDER HOSES 35.723.AA(06) - LOADER TILT CYLINDER 35.723.AA(07) - LOADER LIFT CYLINDER 35.724.AX(01) - 2 SPOOL LOADER VALVE CONTROLS 35.724.AX(02) - 2 SPOOL LOADER VALVE CONTROLS 35.724.AX(03) - 2 SPOOL LOADER VALVE CONTROLS 35.724.AX(04) - 2 SPOOL LOADER VALVE CONTROLS 35.724.AX(05) - INLET SECTION - 2 AND 3 SPOOL LOADER VALVE CONTROLS 35.724.AX(06) - BUCKET SECTION - 2 AND 3 SPOOL LOADER VALVE CONTROLS 35.724.AX(07) - LIFT SECTION - 2 AND 3 SPOOL LOADER VALVE CONTROLS 35.724.AX(08) - OUTLET SECTION - 2 AND 3 SPOOL LOADER VALVE CONTROLS 35.724.AX(09) - 3 SPOOL LOADER VALVES CONTROLS 35.724.AX(10) - LEVER ASSY, 3 SPOOL LOADER CONTROL 35.724.AX(11) - 2 AND 3 SPOOL STABILIZER SECTION 35.724.AX(12) - 2 SPOOL LOADER VALVE WITH RTD 35.724.AX(13) - 2 SPOOL LOADER VALVE WITH OUT RTD 35.724.AX(14) - 3 SPOOL LOADER VALVE WITH RTD 35.724.AX(15) - 3 SPOOL LOADER VALVE WITH OUT RTD 35.726.AE(01) - BACKHOE CONSOLE, 6 SPOOL 35.726.AE(02) - BACKHOE CONSOLE, 7 SPOOL 35.726.AX(01) - 6 AND 7 SPOOL, TOWER ASSEMBLY, BACKHOE CONTROL 35.726.AX(02) - 6 AND 7 SPOOL, TOWER ASSEMBLY, BACKHOE CONTROL 35.726.AX(03) - 6 AND 7 SPOOL, TOWER ASSEMBLY, BACKHOE CONTROL 35.726.AX(04) - 6 AND 7 SPOOL, TOWER ASSEMBLY, BACKHOE CONTROL 35.726.AX(05) - 7 SPOOL, EXTENDHOE CONTROL PEDAL ASSY 35.726.AX(06) - 6 SPOOL,TOWER ASSEMBLY, BACKHOE CONTROL 35.726.AX(07) - EXTENDHOE SECTION, 7 SPOOL 35.726.AX(08) - INLET SECTION - 6 AND 7 SPOOL 35.726.AX(09) - BOOM SECTION - 6 AND 7 SPOOL 35.726.AX(10) - SWING SECTION - 6 AND 7 SPOOL 35.726.AX(11) - BUCKET SECTION 6 AND 7 SPOOL 35.726.AX(12) - DIPPER SECTION 6 AND 7 SPOOL 35.726.AX(13) - STABLIZER SECTION 6 AND 7 SPOOL 35.726.AX(14) - OUTLET SECTION 6 AND 7 SPOOL 35.726.AX(15) - 7 SPOOL,TOWER ASSEMBLY, BACKHOE CONTROL 35.730.BM(01) - POSITIONING CYLINDER 35.736.AA(03) - BOOM CYLINDER TUBING 35.736.AA(02) - BOOM CYLINDER HOSES 35.736.AC(01) - BACKHOE BOOM CYLINDER HOSES 35.737.AA(01) - DIPPER CYLINDER 35.737.AA(02) - DIPPER CYLINDER HOSES 35.737.AE(01) - BACKHOE BUCKET AND DIPPER CYLINDER HOSES 35.737.AE(02) - UNI - AUX, BOOM AND DIPPER 35.738.AA(01) - BACKHOE BUCKET CYLINDER 35.738.AA(02) - BUCKET CYLINDER HOSES AND TUBES 35.738.AA(03) - BDB BUCKET CYLINDER 35.738.AE(01) - EXTENDHOE DIPPER BOOM TUBE AND HOSES 35.738.AE(02) - EXTENDHOE DIPPER BOOM TUBE AND HOSES 35.738.AE(03) - EXTENDHOE EXTENDABLE DIPSTICK 35.738.AE(04) - EXTENDHOE HOSES AND TUBES 35.738.AE(05) - EXTENDHOE DIPPER CYLINDER 35.738.AE(06) - BUCKET CYLINDER TUBING 35.739.AA(01) - SWING CYLINDER 35.739.AE(01) - BACKHOE SWING CYLINDER HOSES 35.739.AO(01) - SWING TOWER, SLIDE FRAME SUB ASSY 35.739.AO(02) - SWING TOWER, SLIDE FRAME SUB ASSY 35.739.AO(03) - SWING TOWER, SLIDE FRAME SUB ASSY 35.739.AO(04) - SWING TOWER, SLIDE FRAME SUB ASSY 35.739.AO(05) - SWING TOWER, SLIDE FRAME SUB ASSY 35.739.AO(06) - SIDE SHIFT CYLINDER HYDRAULIC LINES 35.736.AA(01) - BOOM CYLINDER 39.100.AB(01) - CHASSIS MOUNTED COMPONENTS-REAR COVER 25.100.AV(02A) - STEERING CYLINDER, ASSY, 4WD 41.101.AC(01) - HYDROSTATIC STEERING UNIT 41.101.AJ(01) - STEERING WHEEL AND COLUMN 41.200.AT(01) - POWER STEERING HOSES 44.511.AE(01) - FRONT WHEEL ASSY - 2WD 44.511.AE(02) - FRONT WHEEL ASSY - 4WD 44.520.AB(01) - REAR WHEEL ASSY - STD 44.520.AB(02) - REAR WHEEL ASSY - HD 50.100.AF(01) - HEATER KIT 50.100.AP(01) - CAB HEATING, HOUSING, FILTERS 50.200.AA(01) - AC KIT 50.200.AA(02) - AC KIT 50.200.AB(01) - AC KIT 50.200.AB(02) - AC KIT 55.013.AB(01) - ENGINE, SENSOR, SWITCH 55.015.AB(01) - ENGINE HARNESS 55.015.AB(03) - ENGINE, HARNESS 55.020.AB(01) - SENSOR, TRANSMISSION, 2WD 55.020.AB(02) - SENSOR, TRANSMISSION, 4WD 55.024.AA(01) - TRANSMISSION, WIRE HARNESS 55.051.AC(01) - HARNESS WIRE, AIR CONDITIONER CONTROL CAB 55.100.DP(01) - HORN, WIRE HARNESS 55.201.AE(01) - STARTER MOTOR, STANDARD 55.201.AE(02) - STARTER MOTOR, COLD START 55.202.AM(01) - COLD START KIT 55.301.AA(01) - ALTERNATOR 55.302.AG(01) - BATTERY 55.302.AV(01) - BATTERY - CABLES 55.404.AC(01) - CABIN BEACON 55.404.BS(01) - WIRE HARNESS, WORK LAMP 55.408.AG(01) - HORN AND SENSOR MOUNTING 55.408.BE(01) - WIRE HARNESS, BACKUP ALARM 55.510.AB(01) - CAB HARNESS WIRE TERMINALS 55.510.AB(02) - CAB HARNESS WIRE TERMINALS 55.510.BP(01) - CAB, WIRE HARNESS 55.511.AF(01) - FRONT LIGHT, WIRE HARNESS 55.511.AM(01) - BEACON, WIRE HARNESS 55.511.AM(02) - BEACON, WIRE HARNESS 55.518.AT(01) - RESERVOIR, WASHER BOTTLE 55.518.AT(02) - RESERVOIR, WASHER BOTTLE 84.100.AB(01) - BACKHOE BUCKET ASSEMBLY, 12dm 84.100.AB(02) - BACKHOE BUCKET ASSEMBLY, 18dm 84.100.AB(03) - BACKHOE BUCKET ASSEMBLY 24dm 84.100.AB(04) - BACKHOE BUCKET ASSY, 0.26 CUM 84.100.AB(05) - BACKHOE BUCKET ASSEMBLY, 36dm 84.100.AB(06) - LOADER BUCKET ASSEMBLY 89dm 84.100.AB(07) - LOADER BUCKET ASSEMBLY, 1.2 CUM 84.100.AB(08) - BUCKET 6 IN 1 84.100.AB(09) - BUCKET 6 IN 1 84.100.AB(10) - BUCKET ASSY, STD BACKHOE 84.100.AB(11) - BUCKET 6 IN 1 84.910.AA(01) - BOOM ASSY, STD BACKHOE 84.912.AA(01) - DIPPER ASSY, STD BACKHOE 84.912.AC(01) - TELESCOPIC DIPPER, ASSY 88.100.AG(01) - TOOL BOX 90.100.AU(01) - TILT HOOD 90.100.AU(02) - TILT HOOD 90.108.AB(01) - BRAND AND MODEL DECAL 90.108.AC(01) - DECALS 90.108.AC(02) - INSTRUCTIONAL DECAL 90.108.AC(03) - SAFETY SIGNS AND INFORMATIONAL DECALS 90.108.AC(04) - DECALS 90.116.AC(01) - FENDER, LH, RH 90.116.AG(01) - FENDER GUARD 90.120.AD(01) - OPERATOR SEAT L/CAB 90.150.AB(01) - HVAC CAB 90.150.AB(02) - CAB AND PLATFORM 90.150.AB(03) - CAB AND PLATFORM 90.150.AC(01) - CAB FRAME 90.150.AE(01) - FRONT EXTERIOR COMPONENT 90.150.AE(02) - FRONT EXTERIOR COMPONENT 90.150.AE(03) - FRONT EXTERIOR COMPONENT 90.150.AE(04) - FRONT EXTERIOR COMPONENT 90.150.AE(05) - FRONT EXTERIOR COMPONENT 90.150.AE(06) - CAB MOUNTING 90.150.AG(01) - CAB REAR MOUNT 90.150.AW(01) - CAB FLOOR 90.150.BJ(01) - LOWER EXTERNAL CAB TRIM 90.151.AA(01) - CAB INTERIOR CAMPAIGN WORK 90.151.AN(01) - FRONT CONSOLE 90.151.AN(02) - FRONT CONSOLE 90.151.AN(03) - FRONT CONSOLE 90.151.AS(01) - ARMREST COMPARTMENT 90.154.AA(01) - CAB DOOR, LH 90.154.AA(02) - DOOR ASSEMBLY FRONT LH 90.154.AA(03) - GLASS LATCH HOLD LH & RH 90.154.AA(04) - REAR WINDOW, LH 90.154.AA(05) - CAB DOOR, RH 90.154.AA(06) - CAB DOOR ASSY FRONT, RH 90.154.AA(07) - CAB DOOR REAR WINDOW, RH 90.154.AV(01) - CAB DOOR GLASS 90.156.AG(01) - CAB FRONT WINDOW 90.156.AL(01) - WINDSHIELD GLASS 90.156.AL(02) - CAB WINDSHIELD GLASS 90.156.AL(03) - CAB WINDSHIELD GLASS 90.160.AF(01) - UPPER TRIM 90.160.BI(01) - PILLAR TRIM PLATE 90.160.BY(01) - SIDE CONSOLE 90.160.BY(02) - SIDE CONSOLE 90.160.BY(03) - SIDE CONSOLE 90.160.BY(04) - SIDE CONSOLE 90.160.BY(05) - WHEATHER CONTROL DASHBOARD 90.160.BY(06) - WHEATHER CONTROL DASHBOARD, WITH AIRCONDITION

1

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	47567435		FLOOR MAT
2	47630677		RETAINER
3	843-1616		SCREW
4	85803782		DECAL
5	85803783		DECAL
6	85803788		IDEOGRAM
