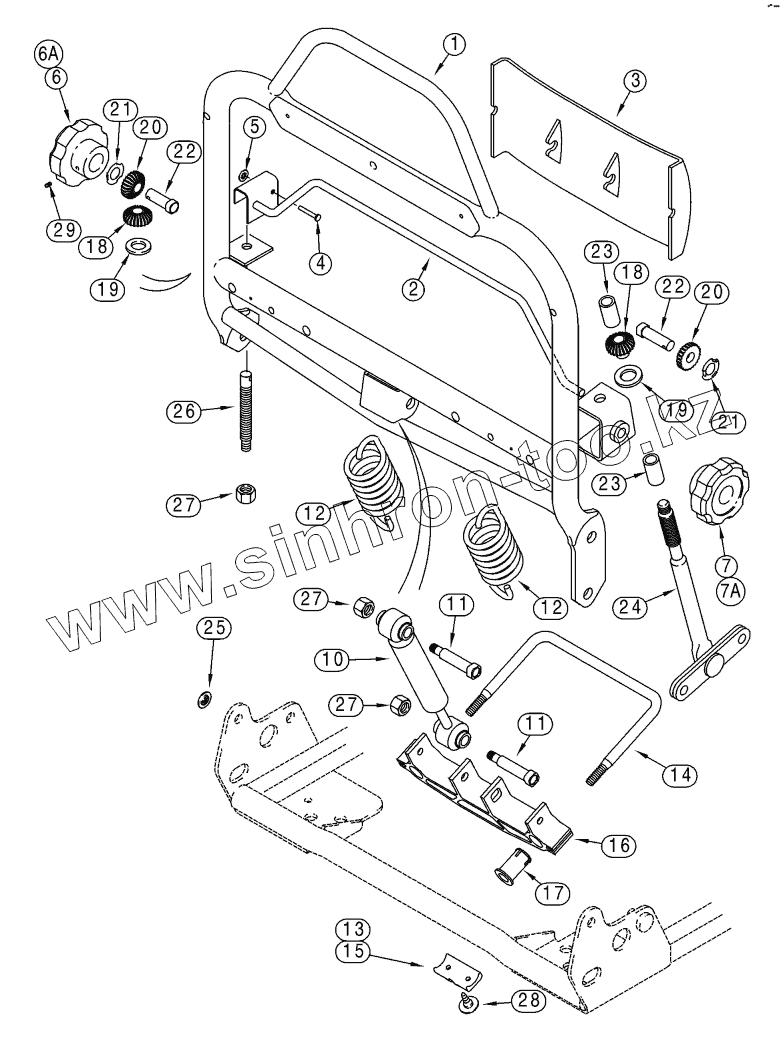

Каталог запасных частей к технике: CASE IH Case-430. SEAT - SUSPENSION
400681A1
1
2
3
4
5
6
6A
7
7A
10
11
11
12
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
23
24
25
26
27
27
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400681A1 | 400681A1 | SEAT | |
| 1 | NSS | NOT SERVICED SEPARATELY | |
| 291765A1 | 291765A1 | ASSEMBLY | |
| 2 | NSS | NOT SERVICED SEPARATELY | |
| 3 | NSS | NOT SERVICED SEPARATELY | |
| 4 | NSS | NOT SERVICED SEPARATELY | |
| 5 | NSS | NOT SERVICED SEPARATELY | |
| 291756A1 | 291756A1 | ASSEMBLY | |
| 6 | NSS | NOT SERVICED SEPARATELY | |
| 6A | 361107A1 | KIT | |
| 7 | NSS | NOT SERVICED SEPARATELY | |
| 7A | 361106A1 | KIT | |
| 291767A1 | 291767A1 | ASSEMBLY | |
| 8 | NSS | NOT SERVICED SEPARATELY | |
| 9 | NSS | NOT SERVICED SEPARATELY | |
| 291748A1 | 291748A1 | ASSEMBLY | |
| 10 | NSS | NOT SERVICED SEPARATELY | |
| 11 | NSS | NOT SERVICED SEPARATELY | |
| 291749A1 | 291749A1 | ASSEMBLY | |
| 12 | NSS | NOT SERVICED SEPARATELY | |
| 13 | NSS | NOT SERVICED SEPARATELY | |
| REF | REF | INSTRUCTION | |
| 291761A1 | 291761A1 | ASSEMBLY | |
| 14 | NSS | NOT SERVICED SEPARATELY | |
| 15 | NSS | NOT SERVICED SEPARATELY | |
| 16 | NSS | NOT SERVICED SEPARATELY | |
| 17 | NSS | NOT SERVICED SEPARATELY | |
| 291754A1 | 291754A1 | ASSEMBLY | |
| 18 | NSS | NOT SERVICED SEPARATELY | |
| 19 | NSS | NOT SERVICED SEPARATELY | |
| 20 | NSS | NOT SERVICED SEPARATELY | |
| 21 | NSS | NOT SERVICED SEPARATELY | |
| 22 | NSS | NOT SERVICED SEPARATELY | |
| 23 | NSS | NOT SERVICED SEPARATELY | |
| 291766A1 | 291766A1 | ASSEMBLY | |
| 24 | NSS | NOT SERVICED SEPARATELY | |
| 25 | NSS | NOT SERVICED SEPARATELY | |
| 26 | 291771A1 | SCREW | |
| 27 | NSS | NOT SERVICED SEPARATELY | |
| 28 | NSS | NOT SERVICED SEPARATELY | |
| 29 | NSS | NOT SERVICED SEPARATELY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
