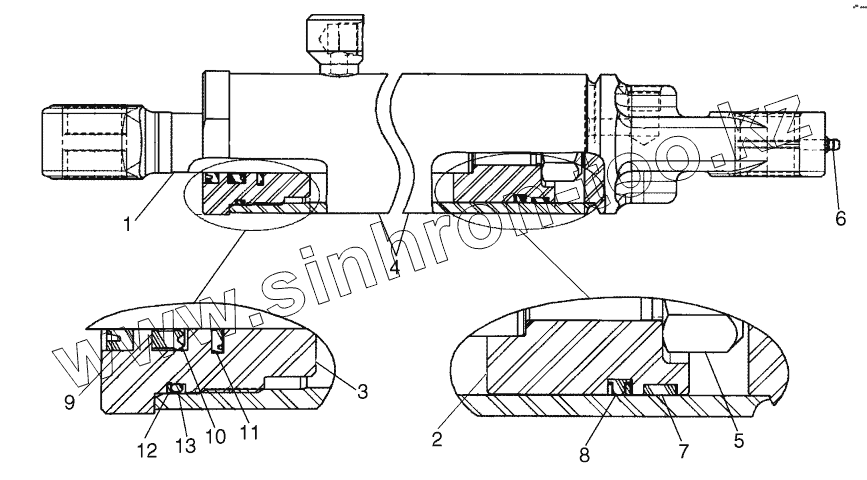

87438187
1
2
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
86624450
86624450
BUSHING
86624450
86624450
BUSHING
87438187
87438187
CYLINDER ASSY
86613643
86613643
KIT
1
87442323
ROD ASSY
2
87442321
PISTON
3
86611141
CYLINDER
4
86611135
CYLINDER
5
87301258
NUT
6
87414
NIPPLE
7
773784
RING
8
86563840
GASKET
9
86631609
SEAL
10
86631606
SEAL
11
86631615
SEAL
12
86536100
WASHER
13
271622
BOLT
