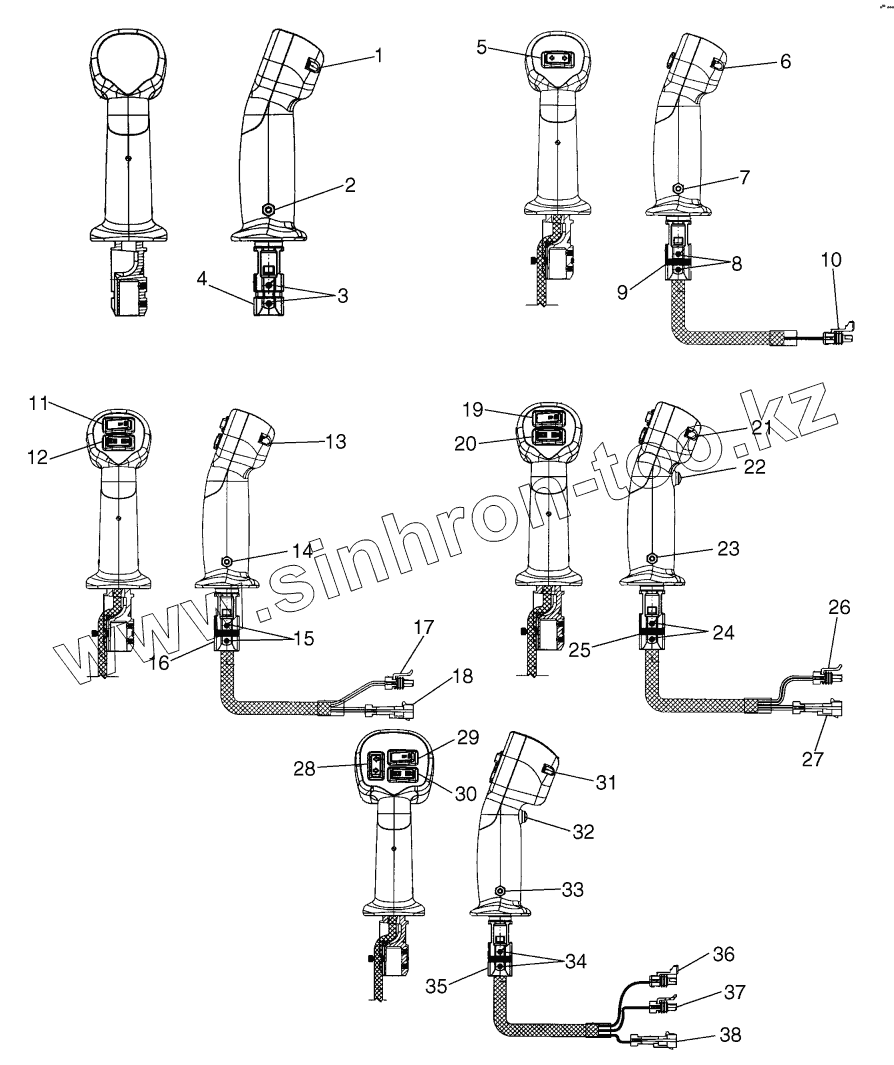

Каталог запасных частей к технике: CASE IH Case-430. CONTROLS, LEFT HAND - HANDLE
87458322
87458329
87458327
87458326
87458328
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 87458322 | 87458322 | HANDLE WITHOUT SWITCHES | |
| 87458329 | 87458329 | HANDLE HANDLE WITH HYDRAULIC ATTACHMENT | |
| 87458327 | 87458327 | HANDLE WITH HYDRAULIC ATTACHMENT | |
| 87458326 | 87458326 | HANDLE WITH HYDRAULIC ATTACHMENT | |
| 87458328 | 87458328 | HANDLE WITH TURN SIGNAL SWITCH | |
| 1 | 86837247 | SCREW | |
| 2 | 87427350 | SCREW | |
| 3 | 87034502 | SCREW | |
| 4 | 87456565 | ADAPTER | |
| 5 | 87427353 | SWITCH | |
| 6 | 86837247 | SCREW | |
| 7 | 87427350 | SCREW | |
| 8 | 87034502 | SCREW | |
| 9 | 87456565 | ADAPTER | |
| 10 | 256344A1 | CONNECTOR | |
| 11 | 87458601 | SWITCH | |
| 12 | 87440121 | SWITCH | |
| 13 | 86837247 | SCREW | |
| 14 | 87427350 | SCREW | |
| 15 | 87034502 | SCREW | |
| 16 | 87456565 | ADAPTER | |
| 17 | 256342A1 | CONNECTOR | |
| 18 | 256341A1 | CONNECTOR | |
| 19 | 87458601 | SWITCH | |
| 20 | 87440121 | SWITCH | |
| 21 | 86837247 | SCREW | |
| 22 | 87427352 | SWITCH | |
| 23 | 87427350 | SCREW | |
| 24 | 87034502 | SCREW | |
| 25 | 87456565 | ADAPTER | |
| 26 | 256342A1 | CONNECTOR | |
| 27 | 256341A1 | CONNECTOR | |
| 28 | 87427353 | SWITCH | |
| 29 | 87427352 | SWITCH | |
| 30 | 87440121 | SWITCH | |
| 31 | 86837247 | SCREW | |
| 32 | 87458601 | SWITCH | |
| 33 | 87427350 | SCREW | |
| 34 | 87034502 | SCREW | |
| 35 | 87456565 | ADAPTER | |
| 36 | 256344A1 | CONNECTOR | |
| 37 | 256342A1 | CONNECTOR | |
| 38 | 256341A1 | CONNECTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
