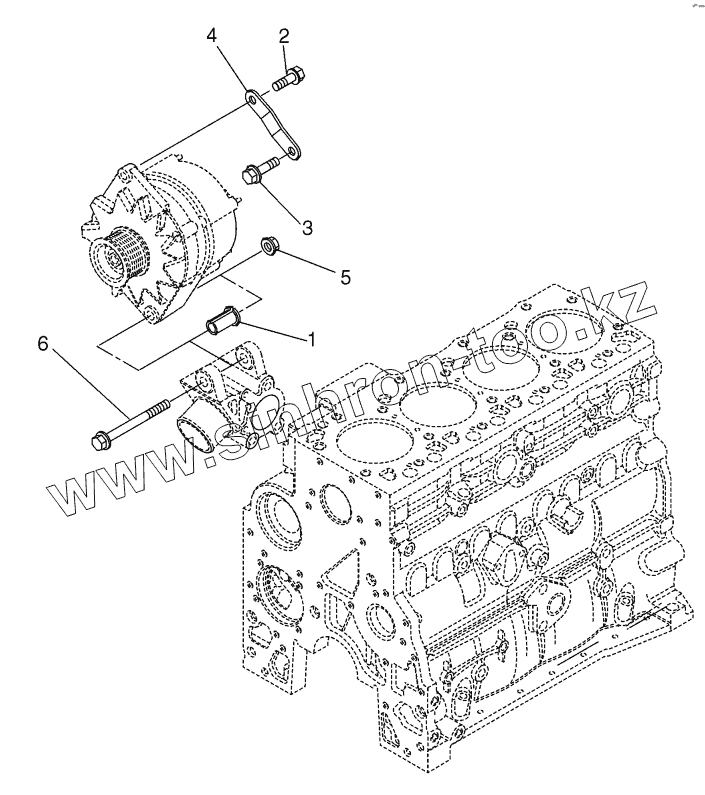

Каталог запасных частей к технике: CASE IH Case-430. ALTERNATOR MOUNTING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 595LSP, 595SLE (2010) 695ST (часть 1) (2015) 695ST (часть 2) (2015) 695ST (часть 3) (2015) 695ST Tier 4A (часть 1) (2012) 695ST Tier 4A (часть 2) (2012) 695ST Tier 4A (часть 3) (2012) 821F (2011) 845 (2002) 921F (2011) Case-430 (2005) Case-570T (2010) Case-580T (часть 1) (2012) Case-580T (часть 1) (2016) Case-580T (часть 2) (2012) Case-580T (часть 2) (2016) SR250 (2012) SV300 (2012) TR270 (2014) TR320 (2012) TV380 (2012) WX-188 (часть 1) (2014) WX-188 (часть 2) (2014)

Схема > Не выбрано RADIATOR - COOLANT RECOVERY SYSTEM FAN MOUNTING EXHAUST SYSTEM EXHAUST SYSTEM, ASPIRATOR AIR CLEANER - ENGINE GRID HEATER ENGINE - MOUNTING OIL FILL, ENGINE ENGINE ENGINE - BLOCK HEATER CYLINDER BLOCK CYLINDER BLOCK OIL PUMP, PAN CYLINDER BLOCK - COVERS CYLINDER BLOCK - COVERS CYLINDER BLOCK - COVERS BREATHER - ENGINE CYLINDER HEAD CYLINDER HEAD - COVERS CYLINDER HEAD - VALVE MECHANISM MANIFOLD - INTAKE MANIFOLD - EXHAUST CRANKSHAFT PISTONS - CONNECTING ROD PISTONS - CONNECTING ROD FLYWHEEL - ENGINE PULLEY - CRANKSHAFT CAMSHAFT ENGINE, OIL OIL PUMP - ENGINE OIL FILTERS - ENGINE OIL FILTER AND COOLER WATER PUMP COOLING SYSTEM - ENGINE THERMOSTAT - ENGINE COOLING SYSTEM WATER PUMP - CONTROL FAN DRIVE POWER TAKE OFF ENGINE - LIFT HOOK FUEL LINES CONTROLS - THROTTLE CONTROLS - THROTTLE, FOOT FUEL INJECTION PUMP FUEL INJECTION SYSTEM FUEL INJECTION SYSTEM FUEL INJECTION SYSTEM FUEL FILTER FUEL PUMP FUEL INJECTION SYSTEM FUEL INJECTION SYSTEM ALTERNATOR MOUNTING BATTERY - CABLES ENGINE, ELECTRICAL ENGINE, ELECTRICAL HARNESS, CHASSIS HARNESS - CAB FUSES AND RELAYS OPTIONS, ELECTRICAL OPTIONS, ELECTRICAL - MOUNTING HARNESS, FRONT - AUXILIARY CONTROLS, RIGHT HAND - HANDLE CONTROLS, LEFT HAND - HANDLE DISCONNECT SWITCH - REMOTE JUMP START DISCONNECT SWITCH - REMOTE JUMP START HORN - MOUNTING BACKUP ALARM BEACON, ROTATING ELECTRICAL ACCESSORIES SOCKET ROAD LIGHTS AND MOUNTING - EUROPE SPECIAL PARTS FOR ITALY - LICENSE PLATE LIGHT LOCK, LOADER DISCONNECT - EUROPE SPECIAL PARTS FOR ITALY - BRAKE LIGHT HARNESS HYDROSTATICS - PUMP, SUPPLY AND RETURN OIL COOLER - MOUNTING OIL COOLER ASSY - HIGH FLOW OIL COOLER - HIGH FLOW HYDROSTATICS - CASE DRAIN HYDROSTATICS - DRIVE MOTORS HYDROSTATICS - TWO SPEED HYDROSTATICS - TWO SPEED, VALVE ASSY FILTER ASSY - MOUNTING PUMP, TANDEM - MOUNTING MOTOR - MOUNTING PUMP, TANDEM 05/05 PUMP, TANDEM 06/05 PUMP, TANDEM 05/05 PUMP, TANDEM 05/05 PUMP, TANDEM 06/05 PUMP, TANDEM 05/05 PUMP, GEAR (WITHOUT HIGH FLOW) PUMP, GEAR (HIGH FLOW) MOTOR ASSY - SINGLE SPEED MOTOR ASSY - SINGLE SPEED MOTOR ASSY - SINGLE SPEED MOTOR ASSY - TWO SPEED MOTOR ASSY - TWO SPEED MOTOR ASSY - TWO SPEED DRIVE LINE AXLE ASSY WHEELS TRACK - STEEL BRAKE SYSTEM - HYDRAULIC HYDRAULICS - LIFT HYDRAULICS - TILT HYDRAULICS - AUXILIARY HYDRAULICS - SELF-LEVELING HYDRAULICS - RIDE CONTROL HYDRAULICS - COUPLER SYSTEM HYDRAULICS - COUPLER SYSTEM HYDRAULICS, ATTACHMENT VALVE ASSY, CONTROL - LOADER VALVE ASSY, CONTROL VALVE ASSY, CONTROL - SEAL REPLACEMENT KITS CYLINDER - TILT CYLINDER - LIFT SECONDARY FRONT AUXILIARY SECONDARY FRONT AUXILIARY SECONDARY FRONT AUXILIARY - VALVE ASSY HIGH FLOW, SUPPLY AND RETURN HIGH FLOW - AUXILIARY SYSTEM HIGH FLOW, CONTROL VALVE VALVE ASSY, CONTROL - HIGH FLOW LOADER LIFT LIFT CYLINDER - COVERS COUPLER, MECHANICAL COUPLER, MECHANICAL (ITALIAN) COUPLER, HYDRAULIC COUPLER, HYDRAULIC (ITALIAN) BUCKETS - LOADER (DIRT/FOUNDRY) BUCKETS - LOADER (LOW PROFILE/ EXTENDED LOW PROFILE) BUCKETS - LOADER (UTILITY/LIGHT MATERIAL) PALLET FORK BUCKET, CUTTING EDGE (BOLT-ON CUTTING EDGE) CHASSIS CHASSIS CONTROLS - LOADER AND GROUND DRIVE CONTROLS - LOADER AND GROUND DRIVE COVER - LOADER AND GROUND DRIVE CONTROLS - AUXILIARY HYDRAULICS HOOD HOOD - AIR CONDITIONING DOOR, REAR REAR DOOR LOCK (EUROPE) SOUNDPROOFING HEAT SHIELD SOUNDPROOFING - SEAL NOISE KIT - EUROPE NOISE KIT - EUROPE FRAME AND SEAT BAR SEAT BAR CAB DOOR WINDOWS, SIDE REAR WINDOW WINDOW, TOP SEAT, MOUNTING - NON-SUSPENSION SEAT, MOUNTING - SUSPENSION SEAT - SUSPENSION SEAT - SUSPENSION SEAT - SUSPENSION HEATER AND AIR CONDITIONING - HEADLINER HEATER, DELUXE HEATER SYSTEM HEATER ASSY HEATER AND AIR CONDITIONING ASSY AIR CONDITIONING SYSTEM AIR CONDITIONING LIFT HOOK SPECIAL PARTS FOR ITALY - GUARD, BUCKET SPECIAL PARTS FOR ITALY - MIRROR, REAR VIEW DECALS DECALS DECALS - ENGLISH DECALS - DANISH, DUTCH, FINNISH DECALS - FRENCH, GERMAN, GREEK DECALS - ITALIAN, NORWEGIAN, POLISH DECALS - PORTGUESE, SPANISH, SWEDISH DECALS - BRAZILIAN PORTUGUESE, CANADIAN FRENCH, LATIN AMERICAN SPANISH MAT, FLOOR

1

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	2852181		SPACER
2	2852180		BRACKET
3	4895291		SCREW
4	4899031		SCREW
5	4895166		FLANGE NUT
6	4895538		SCREW

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
