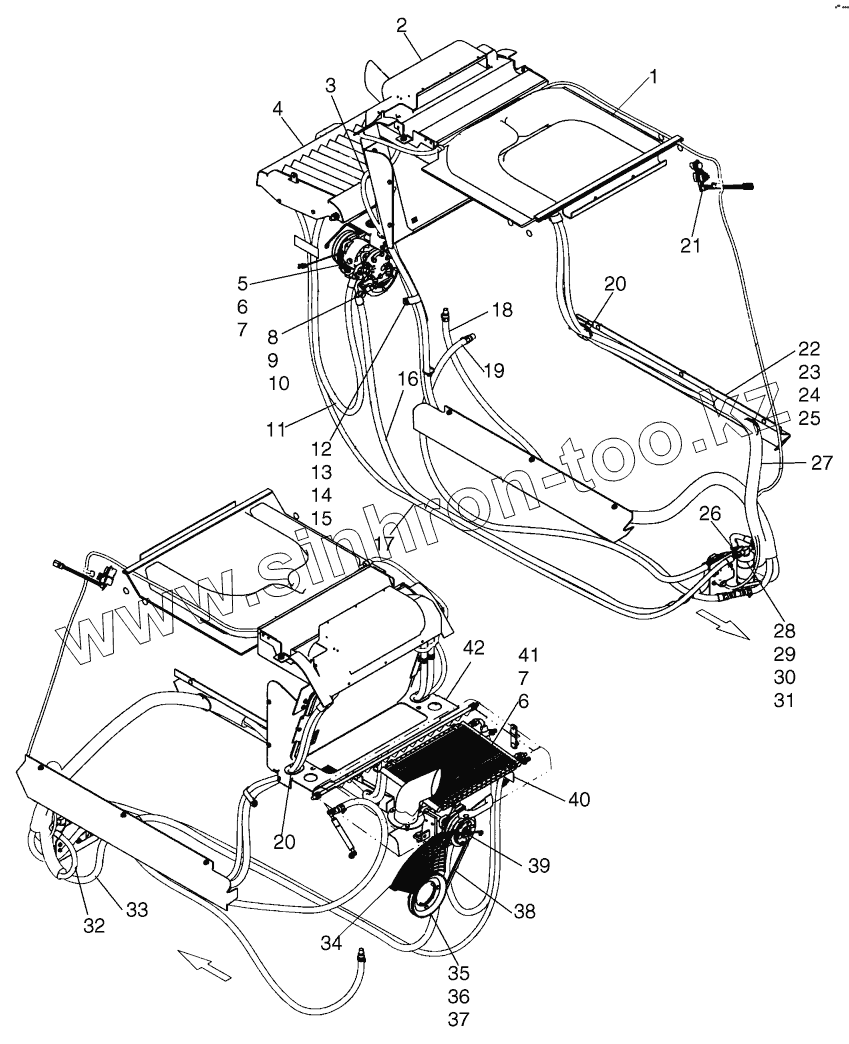

Каталог запасных частей к технике: CASE IH Case-430. AIR CONDITIONING SYSTEM
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| L18331 | L18331 | CABLE TIE | |
| 87307909 | 87307909 | Rubber | |
| 87445908 | 87445908 | HARNESS | |
| 1 | REF | INSTRUCTION | |
| 2 | 87029158 | Heater | |
| 3 | 87450536 | TUBE | |
| 4 | REF | INSTRUCTION | |
| 5 | 627-10040 | SCREW | |
| 6 | 140017 | WASHER | |
| 7 | 86050279 | NUT | |
| 8 | 87036932 | BRACKET | |
| 9 | 140028 | Washer | |
| 10 | 9515003 | BOLT | |
| 11 | 87452009 | HOSE | |
| 12 | H434289 | MOUNTING CLIP | |
| 13 | 120104 | BOLT | |
| 14 | 140016 | WASHER | |
| 15 | 86505868 | SERRATED NUT | |
| 16 | 87436118 | HOSE ASSY | |
| 17 | 87452012 | HOSE ASSY | |
| 18 | 642560 | CONNECTOR | |
| 19 | 217-124 | ROD | |
| 20 | 87439844 | GUARD ROPS | |
| 21 | 87445255 | SWITCH | |
| 22 | 87458765 | COVER | |
| 23 | 9804258 | SCREW | |
| 24 | 86624185 | WASHER | |
| 25 | 87016586 | SPRING NUT | |
| 26 | 86625515 | SWITCH | |
| 27 | 87441006 | GUARD | |
| 28 | 86625481 | RECEIVER-DRYER | |
| 29 | 87437501 | BRACKET | |
| 30 | 9804256 | SCREW | |
| 31 | 86619800 | NUT | |
| 32 | 87452010 | HOSE ASSY | |
| 33 | 87452008 | HOSE ASSY | |
| 34 | 87460130 | GUARD | |
| 35 | 87438240 | PULLEY | |
| 36 | 87439471 | PLATE | |
| 37 | 43235 | BOLT | |
| 38 | 87454410 | BELT | |
| 39 | 87026034 | COMPRESSOR | |
| 40 | 86639409 | DECAL | |
| 41 | 86508621 | BOLT | |
| 42 | 87458638 | PANEL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
