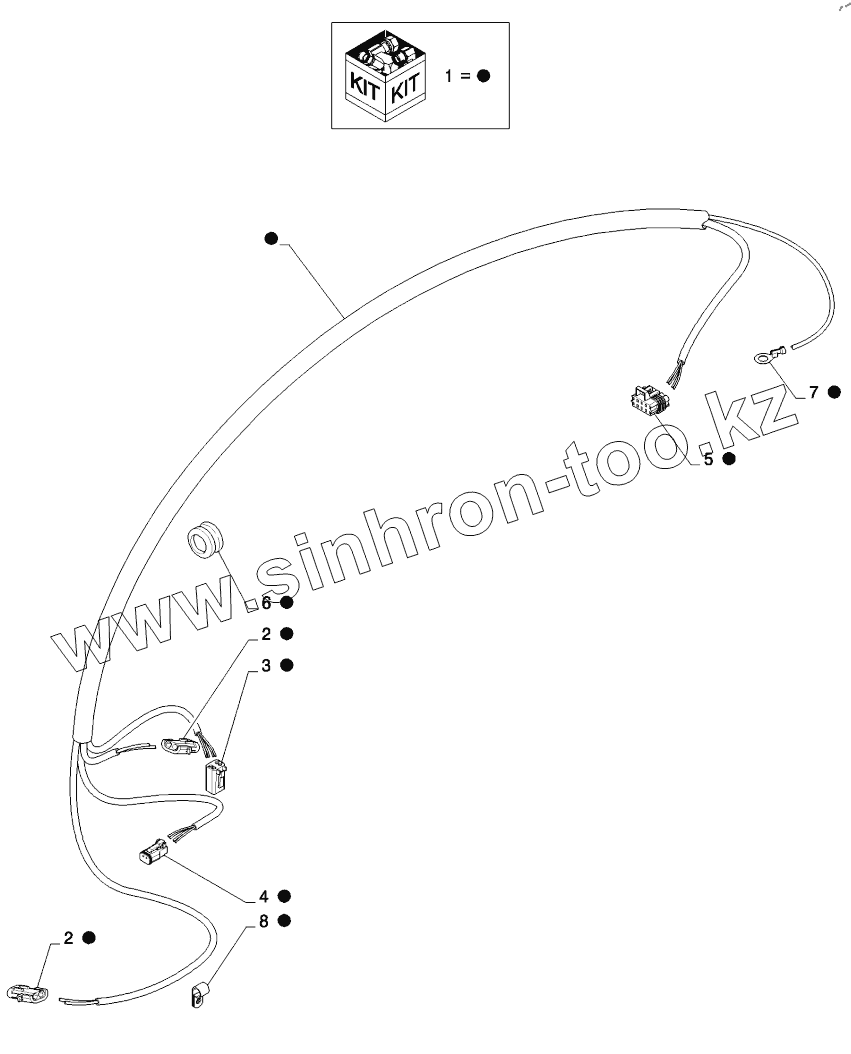

Каталог запасных частей к технике: CASE IH 921F. JOYSTICK STEERING FRAME HARNESS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 595LSP, 595SLE (2010) 695ST (часть 1) (2015) 695ST (часть 2) (2015) 695ST (часть 3) (2015) 695ST Tier 4A (часть 1) (2012) 695ST Tier 4A (часть 2) (2012) 695ST Tier 4A (часть 3) (2012) 821F (2011) 845 (2002) 921F (2011) Case-430 (2005) Case-570T (2010) Case-580T (часть 1) (2012) Case-580T (часть 1) (2016) Case-580T (часть 2) (2012) Case-580T (часть 2) (2016) SR250 (2012) SV300 (2012) TR270 (2014) TR320 (2012) TV380 (2012) WX-188 (часть 1) (2014) WX-188 (часть 2) (2014)

Схема > Не выбрано 821F INITIAL STOCKING LIST 921F INITIAL STOCKING LIST DRIVE SHAFT INSTALLATION 921F MOUNTING, ENGINE ENGINE ASSY CYLINDER BLOCK & RELATED PARTS CRANKCASE ENGINE ENGINE - CYLINDER BLOCK HEATER HOOKS - ENGINE CYLINDER HEAD HEAD COVER BREATHER - ENGINE OIL SUMP & RELATED PARTS CRANKCASE COVERS COVERS, DRIVE BELT WITHOUT AIR CONDITIONING COVERS, DRIVE BELT WITH AIR CONDITIONING CRANKSHAFT & RELATED PARTS FLYWHEEL - ENGINE FLYWHEEL CONNECTING ROD PISTON - ENGINE CAMSHAFT ROCKER SHAFT CRANKCASE COVERS PULLEY - CRANKSHAFT POWER TAKE OFF AIR CLEANER ASSEMBLY - NA/EU AIR PRECLEANER,RAIN CAP SYKLONE AIR PRECLEANER AND ADAPTER FUEL FILTER - COMPONENTS OIL FILTER WATER SEPARATOR WITHOUT HEATER FUEL INJECTION SYSTEM - DRAIN LINE FUEL TANK FUEL TANK INSTALLATION FUEL LINES & RELATED PARTS INJECTION EQUIPMENT - INJECTOR INJECTION PIPING FUEL LINE INSTALLATION INJECTION PUMP TURBOCHARGER TURBOCHARGER DRAIN LINE AIR LINES EXHAUST MUFFLER AND MOUNTING (NA) EXHAUST MANIFOLD PUMP, ENGINE OIL & RELATED PARTS OIL PUMP ENGINE PIPING - ENGINE OIL COOLANT RECOVERY SYSTEM HYDRAULIC RESERVOIR FILTER HYDRAULIC RESERVOIR ASSEMBLY FAN DRIVE ASSEMBLY PIPING - ENGINE COOLING SYSTEM THERMOSTAT - ENGINE COOLING SYSTEM WATER PUMP & RELATED PARTS WATER PUMP - CONTROL HEAT EXCHANGER-ENGINE COOLING SYSTEM - ENGINE COOLING SYSTEM - ENGINE RADIATOR, TRANSMISSION AND HYDRAULIC COOLER INSTALLATION 821F RADIATOR, TRANSMISSION AND HYDRAULIC COOLER INSTALLATION 921F ENGINE COOLING LINES INSTALLATION ENGINE COOLING LINES INSTALLATION TANK INSTALLATION - UREA TANK ASSY - UREA MOTOR ELECTRIC INSTALLATION ALTERNATOR - MOUNTING WITH AIR CONDITIONING ELECTRONIC INJECTION (504092213) TRANSMISSION, OIL FILTER AND FILLER COVERS TRANSMISSION , SPEED SENSOR, TEMPERATURE SENDOR, AND PUMP COVER TRANSMISSION, REGULATOR VALVE AND OIL PUMP TRANSMISSION, CONTROL VALVE 4-SPEED AND 5-SPEED TRANSMISSION, VALVE PLATES TRANSMISSION, POWER TAKE OFF DRIVE TRANSMISSION, OUTPUT SHAFT TRANSMISSION, REVERSE CLUTCH ASSEMBLY TRANSMISSION, FORWARD CLUTCH ASSEMBLY TRANSMISSION, FOURTH CLUTCH ASSEMBLY TRANSMISSION, THIRD CLUTCH ASSEMBLY TRANSMISSION, SECOND CLUTCH ASSEMBLY TRANSMISSION, FIRST CLUTCH ASSEMBLY TRANSMISSION, HOUSING ASSEMBLY TRANSMISSION, HOUSING ASSEMBLY TUBES TRANSMISSION, TORQUE CONVERTER ASSEMBLY AND INPUT SHAFT TRANSMISSION, CONTROL UNIT 5-SPEED MOUNTING - TRANSMISSION 4 SPEED AND 5 SPEED TRANSMISSION, 5 SPEED AND 4-SPEED CONTROLLER INSTALLATION DRIVE SHAFT ASSEMBLIES DRIVE SHAFT INSTALLATION 821F DIFFERENTIAL AXLE LOCK LINE BRAKE PEDALS - RIGHT HAND 5 SPEED BRAKE, TRANSMISSION FRONT AXLE BRAKE, ONE ASSEMBLY MAIN BRAKE SYSTEM,FRONT MAIN BRAKE SYSTEM, REAR MAIN BRAKE HYDRAULIC PUMP MAIN BRAKE ACCUMULATOR HYDRAULICS MAIN BRAKE VALVE HYDRAULICS MAIN BRAKE VALVE HYDRAULICS PARKING BRAKE BRAKES, HUB DISC - FRONT AXLE BRAKES, HUB DISC - REAR AXLE DIA KIT - RIGHT HAND BRAKE PEDAL PRIORITY PUMP TANDEM ASSEMBLY 821F PRIORITY PUMP TANDEM ASSEMBLY 921F LOADER CONTROL - THREE LEVER MOUNTING LOADER CONTROL - JOYSTICK WITH SINGLE LEVER MOUNTING LOADER CONTROL - JOYSTICK CONTROL MOUNTING LOADER CONTROL, FNR SWITCH HARNESS CONTROL VALVE MOUNTING, TWO & THREE SPOOL (Z-BAR LOADER) LOADER CONTROL LINE INSTALLATION HYDRAULIC RETURN MANIFOLD 821F HYDRAULIC RETURN MANIFOLD 921F VALVE, COUPLER SOLENOID Z-BAR, XR/LR BAR HYDRAULIC OIL FILTER HYDRAULIC RETURN FILTER ASSEMBLY 821F HYDRAULIC RETURN FILTER ASSEMBLY 921F CLAMP BLOCK FASTENERS NON- RIDE CONTROL LINE INSTALLATION 821F, Z-BAR THERMAL BYPASS VALVE INSTALLATION NON-RIDE CONTROL LINE INSTALLATION 921F, Z-BAR VALVE ASSEMBLY, LOADER CONTROL - TWO, THREE, FOUR SPOOL 821F BUCKET/BOOM/OPTIONAL SPOOLS 2, 3, 4 SPOOL VALVE 821F VALVE ASSEMBLY, LOADER CONTROL - TWO, THREE, FOUR SPOOL 921F BUCKET/BOOM/OPTIONAL SPOOLS (2, 3, 4 SPOOL VALVE) 921F VALVE,FAN VARIABLE SPEED AND REVERSER VALVE, FAN RELIEF FAN MOTOR LINES LOAD LIFTER ASSEMBLY 821F LOAD TILT ASSEMBLY 821F TILT CYLINDER ASSEMBLY, Z BAR 821F TILT CYLINDER ASSEMBLY, XR LOADER 821F LIFT CYLINDER ASSEMBLY 821F LOAD TILT ASSEMBLY 921F LOAD LIFT ASSEMBLY 921F TILT CYLINDER ASSEMBLY, Z BAR LOADER 921F TILT CYLINDER ASSRMBLY, XR LOADER 921F LIFT CYLINDER ASSEMBLY 921F RIDE CONTROL VALVE RIDE CONTROL VALVE INSTALLATION DIA KIT - RIDE CONTROL _821F DIA KIT - LOCKING HYDRAULICS, Z-BAR _821F DIA KIT - VALVE CONVERSON 2SP TO 3SP JOYSTICK 1 LEVER _921F DIA KIT - VALVE CONVERSION 3SP JOYSTICK 1 LEVER TO 4SP JOYSTICK 2 LEVERS _921F DIA KIT - RIDE CONTROL _921F DIA KIT - LOCKING HYDRAULICS _921F ARM LIFT Z BAR AND XR/LR FRONT CHASSIS REAR CHASSIS ARTICULATING JOINT ASSEMBLY FRAME, REAR - COVERS REMOTE DRAIN COVER COUNTERWEIGHTS - 821F COUNTERWEIGHTS - 921F CAB/CANOPY - STEERING WHEEL CAB/CANOPY - STEERING COLUMN CAB, STEERING COLUMN ACCESSORY CAB, STEERING COLUMN COVERS AND SWITCHES STEERING - HYDRAULICS STEERING, HYDRAULICS 921F, NO JOYSTICK STEERING, HYDRAULICS 821F, NO JOYSTICK ORBITROL VALVE, STANDARD STEERING AUXILIARY, PUMP STEERING AUXILIARY, ELECTRICAL STEERING AUXILIARY, MANIFOLD STEERING AUXILIARY, MANIFOLD HOSES AND CONNECTORS STEERING AUXILIARY, ACCUMULATOR JOYSTICK STEERING, PROPORTIONAL VALVE JOYSTICK STEERING, PVFC VALVE JOYSTICK STEERING, HYDRAULICS JOYSTICK STEERING, HYDRAULICS STEERING PRIORITY MANIFOLD 821F STEERING PRIORITY MANIFOLD 921F PRIORITY PUMP INSTALLATION 821F PRIORITY PUMP INSTALLATION 821F PRIORITY PUMP INSTALLATIOM 921F PRIORITY PUMP INSTALLATION 921F STEERING CYCLINDER INSTALLATION STEERING CYCLINDER INSTALLATION STEERING CYCLINDER INSTALLATION STEERING CYCLINDER INSTALLATION STEERING CYCLINDER ASSEMBLY WHEELS ASSEMBLY AXLE FRONT AND REAR MOUNTING - LIMITED SLIP 821 ONLY AXLE FRONT AND REAR MOUNTING - DIFFERENTIAL LOCK 821 ONLY AXLE FRONT AND REAR MOUNTING DIFFERENTIAL LOCK 921 ONLY FRONT AXLE HOUSING - LIMITED SLIP 821 ONLY FRONT AXLE HOUSING - OPEN DIFFERENTIAL 921 ONLY FRONT AXLE HOUSING - DIFFERENTIAL LOCKING 821/921 REAR AXLE HOUSING 821/921 FRONT AXLE PLANETARY HUB 821 ONLY FRONT AXLE PLANETARY HUB 921 ONLY FRONT AND REAR AXLE DIFFERENTIAL 821 ONLY FRONT AXLE DIFFERENTIAL, OPEN - 921 ONLY FRONT AXLE DIFFERENTIAL - LOCKING 821/921 FRONT AXLE DIFFERENTIAL CARRIER 821 ONLY FRONT AXLE DIFFERENTIAL CARRIER 921 ONLY REAR AXLE - PLANETARY HUB - 821 ONLY REAR AXLE - PLANETARY HUB - 921 ONLY REAR AXLE - DIFFERENTIAL CARRIER REAR AXLE, DIFFERENTIAL - OPEN REAR AXLE STOP FITTING, NO HEATER CANOPY (NA) HEATER INSTALLATION CAB (NA) CAB, HEATER AND AIR CONDITIONING DUCTS CAB, HEATER AND AIR CONDITIONING DUCTS HEATER, CONTROL PANEL HEATER ASSEMBLY HEATER, INSTALLATION AIR CONDITIONING CONTROL AIR CONDITIONING WITH HEATER ASSEMBLY AIR CONDITIONING EVAPORATOR AIR CONDITIONING WITH HEATER INSTALLATION COVERS, CAB WITHOUT AIR CONDITIONING AIR CONDITIONING - CONDENSER AIR CONDITIONING - HOSES DIA KIT - AIR CONDITIONER CAB DIA KIT - COLD WEATHER PACKAGE BATTERY CABLE HARNESS, ENGINE GRID HEATER BATTERY- HEAVY DUTY TRANSMISSION HARNESS TRANSMISSION HARNESS INSTALLATION FRONT CHASSIS HARNESS INSTALLATION FRONT CHASSIS HARNESS HARNESS, BACKUP ALARM AND INSTALLATION HARNESS, ENGINE AND REAR CHASSIS HARNESS, ENGINE AND REAR CHASSIS HARNESS, REAR RELAY PANEL ENGINE HARNESS INSTALLATION ENGINE HARNESS INSTALLATION HARNESS, MAIN CAB HARNESS, MAIN CAB HARNESS, MAIN CAB MAIN CAB AND CANOPY HARNESS FUSES AND RELAYS MAIN CANOPY HARNESS INSTALLATION COMPONENTS MAIN CAB HARNESS INSTALLATION COMPONENTS RIGHT CONSOLE FUSE AND RELAY MOUNTING RIGHT CONSOLE SWITCH INSTALLATION HARNESS, CAB ROOF HARNESS , CANOPY ROOF INSTALLATION HARNESS, CAB BOTTOM HARNESS, CAB BOTTOM INSTALLATION HARNESS, CAB ROOF HARNESS, CAB ROOF INSTALLATION ENGINE STARTER INSTALLATION STANDARD BATTERY ALTERNATOR - MOUNTING WITHOUT AIR CONDITIONING ALTERNATOR ASSY FRONT LIGHT ASSEMBLY FRONT LIGHT INSTALLATION REAR LIGHT INSTALLATION BEACON ASSY, ROTATING - MOUNTING ROTATING BEACON COMPONENTS WORK LIGHT, HIGH OUTPUT CAB/CANOPY - WORK LIGHTS RETURN TO DIG CONTROL Z-BAR HEIGHT,RETURN TO TRAVEL CONTROL Z-BAR HEIGHT,RETURN TO TRAVEL CONTROL XR/LR CONTROL, RETURN-TO-DIG XR/LR JOYSTICK STEERING - ARMREST, JOYSTICK CONTROL JOYSTICK STEERING - JOYSTICK CONTROL AND HARNESS JOYSTICK STEERING FRAME HARNESS JOYSTICK STEERING JUMPER HARNESS WASHER INSTALLATION-BOTTLE CAB, REAR WIPER CAB, FRONT WIPER BUCKET LIFT ARM PINS LOADER BUCKETS BOLT ON EDGE AND SKID PADS 821F LOADER BUCKETS BOLT ON EDGE AND SKID PADS 921F LOADER BUCKETS WITH TEETH AND SKID PADS 821F LOADER BUCKETS WITH TEETH AND SKID PADS 921F HYDRAULIC COUPLER, Z-BAR, ACS COUPLER VALVE SOLENOID INSTALLATION 821F HYDRAULIC COUPLER, Z-BAR, CNH DIA KIT - BUCKET 3.25 YD WITH EDGE _821F DIA KIT - BUCKET 4.25YD WITH EDGE _821F DIA KIT - COUPLER CNH Z-BAR _821 DIA KIT - BUCKET 4.0 YD WITH EDGE _921F DIA KIT - BUCKET 4.0 YD WITH EDGE & TEETH _921F DIA KIT - BUCKET 4.75 YD WITH EDGE _921F DIA KIT - BUCKET 4.75 YD WITH EDGE & TEETH _921F DIA KIT - VALVE CONVERSION - 3SP, 3 LEVER TO 3SP, 1 LEVER DIA KIT - VALVE CONVERSION 2SP JOYSTICK TO 3SP JOYSTICK, 1 LEVER _821F DIA KIT - VALVE CONVERSION 3SP, 1 LEVER TO 4SP, 2 LEVER _821F DIA KIT - BUCKET 3.5 CY WITH EDGE & TEETH _821F DIA KIT - BUCKET 3.25 CY WITH BLADE & TEETH _821F DIA KIT - BUCKET CNH 4.25YD WITH EDGE & TEETH _821F DIA KIT - BUCKET CNH 3.0 YD WITH TEETH AND SEGM _821F DIA KIT - POWER CONVERTER 24V TO 12V LICENSE PLATE BRACKET,LIGHT RADIO - 12 VOLT INSTALLATION TOOL BOX RADIO - 12 VOLT LICENSE PLATE MOUNTING,FRONT REARVIEW MIRROR EXTERNAL FIRE EXTINGUISHER WHEEL CHOCK FUEL FILTER - WATER SEPARATOR DIA KIT - SKID PLATE NOISE SUPPRESSION PACKAGE BATTERY, SELECTIVE CATALYTIC REDUCTION COVERS ENGINE HOOD HOOD PANEL LEFT SIDE HOOD PANEL RIGHT SIDE HOOD INSTALLATION HOOD INSTALLATION CAB - CONVENIENCE PACKAGE CAB AND CANOPY SKIRTING REAR WHEEL WELL FENDERS AND FENDER GUARDS REAR SKID PLATE FENDER FRONT STANDARD FENDERS, REAR - STEPS FENDERS, REAR SUPPORT STANDARD FENDERS, FRONT WIDE FENDERS, REAR WIDE FENDER, REAR SUPPORT WIDE LEFT STEP NARROW INSTALLATION RIGHT STEP NARROW INSTALLATION LEFT STEP WIDE INSTALLATION RIGHT STEP WIDE INSTALLATION VINYL SEAT INSTALLATION CAB AND CANOPY SEAT BELT INSTALLATION 2" AND 3" SEAT ASSY, MECHANICAL SUSPENSION SEAT ASSY, MECHANICAL SUSPENSION SEAT ASSY, MECHANICAL SUSPENSION - VINYL SEAT ASSY, MECHANICAL SUSPENSION - VINYL SEAT ASSY, AIR SUSPENSION SEAT ASSY, AIR SUSPENSION CAB/CANOPY - MOUNTING BAR MOUNT INSTALLATION ARM ASSEMBLY MONITOR MOUNTING REAR VIEW CAMERA MONITOR, INSTALLATION CAB INTERIOR-MISC CANOPY - COVERS, ANTI-VANDALISM CANOPY - INTERIOR TRIM/EXTERIOR TRIM CANOPY - INTERIOR TRIM CAB, WINDOW RIGHT HAND LOWER CAB, WINDOW RIGHT HAND UPPER CAB, RIGHT UPPER WINDOW INSTALLATION CAB, FRONT GLASS CAB, REAR GLASS CAB, LEFT DOOR ASSEMBLY CAB, LEFT DOOR INSTALLATION CONSOLE ACCESS PLATE CAB, ROOF INTERIOR TRIM CAB, INTERIOR TRIM CAB, STORAGE COMPARTMENTS CAB, INTERIOR TRIM COLUMNS CAB, PARTS MOUNTING CAB, SUNVISOR CAB, EXTERIOR TRIM

1

2

2

3

4

5

6

7

8

Позиция на иллюстрации	Заводской номер детали		Название детали
1	87493786		WIRE HARNESS
2	245483C1		CONNECTOR
3	239451A1		CONNECTOR
4	225316C1		CONNECTOR
5	256352A1		CONNECTOR
6	NSS		NOT SERVICED SEPARATELY
7	1964706C1		TERMINAL CONNECTOR
8	515-21111		CLAMP

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
