Каталог запасных частей к технике: CASE IH 845. HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

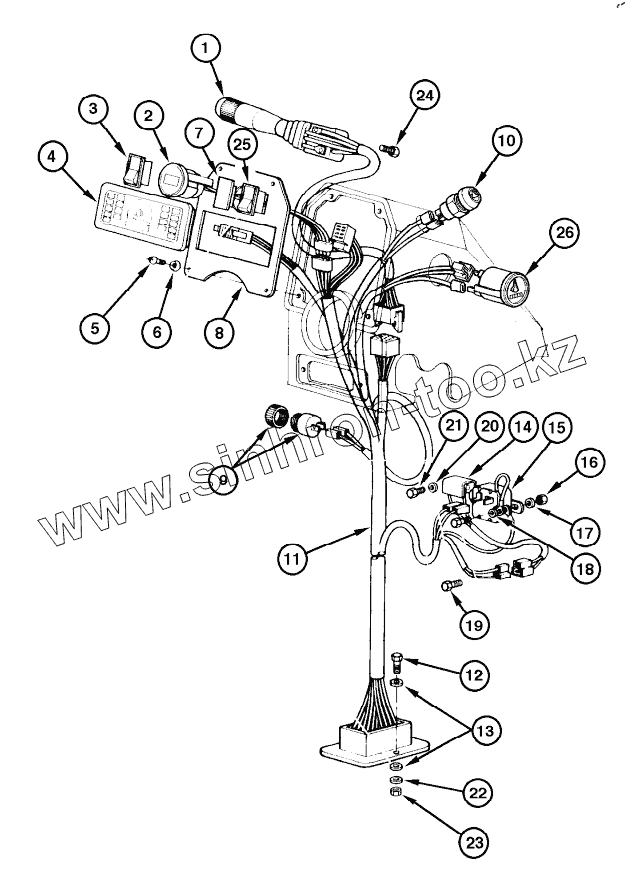

Позиция на иллюстрации Заводской номер детали Название детали
1 13021 HOSE CLAMP #08, 0.50"/0.91", Type F Worm, Stainless
2 65319 WASHER, M13 x 25 x 3.5, HT
3 76344 ELBOW
4 76350 CONNECTOR
5 87670 BOLT
6 265808 TEE, 3/4"-16, 37є x 3/4"-18, O-Ring Run
7 300442 HEX SOC SCREW
8 87711337 COUPLING, Drive, Star
9 87655042 SPECIAL WASHER
10 87314487 HYD CONNECTOR, Bead, Hose, 1/2in
11 9790095 BOLT, Hex, 1/2"-13 x 1 3/4", G8
12 9804265 FLANGE BOLT, Hex Flg, M10 x 60, 8.8
13 9804277 NUT
14 9840535 HYD CONNECTOR
15 16044321 BOLT
16 86625255 WASHER
17 86625253 WASHER
18 86513024 TEE, 3/4"-16, 37є x 3/4"-16, O-Ring Br
19 84273629 FITTING, M10 X 1
20 84273646 HOSE, Pump Drain
21 84288343 FLEXIBLE HOSE, Assembly, EH, Control to Brake
22 84299736 FLEXIBLE HOSE, Assembly, EH, LV Interlock
23 84299737 FLEXIBLE HOSE, Assembly, EH, Brake Charge
24 84305548 FLYWHEEL Cover
25 84309599 FLEXIBLE HOSE, Assembly, EH, Brake NOR
26 86513020 CONNECTOR
27 86512936 ELBOW, 90є, 9/16"-18, 37є x 7/16"-20, O-Ring
28 84560838 FLEXIBLE HOSE Loop
29 84349300 RIGID TUBE, Hydraulic, EH, Charge Supply
30 84560831 FLEXIBLE HOSE Loop
31 84373394 HOSE, EH Aux to EH Aux Drain
32 84560830 FLEXIBLE HOSE Loop
33 84549542 CLAMP Hose, CTB, 22mm ID
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
