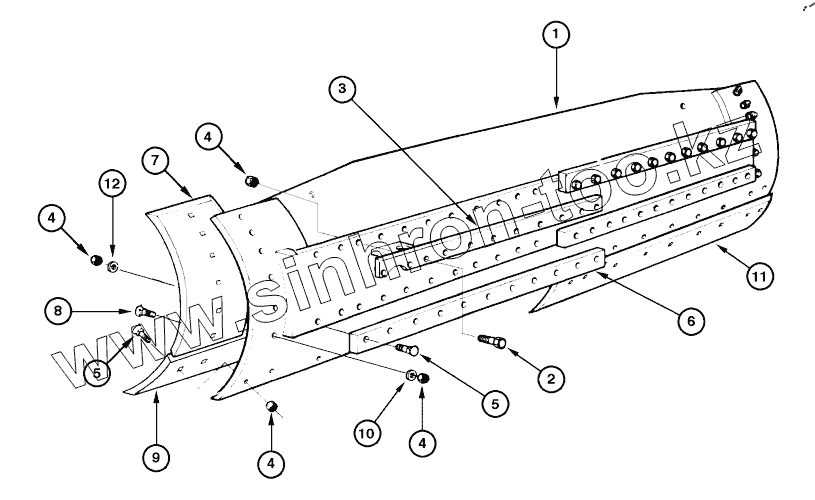

Каталог запасных частей к технике: CASE IH 845. DIA KIT, HYDRAULIC COUPLER, RADIAL BOOM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
53
53
54
55
56
Позиция на иллюстрации Заводской номер детали Название детали
1 47435670 SERVICE KIT Hydraulic Coupler, Incl 2 - 56
2 47435671 INSTRUCTION Sheet, Hydraulic Coupler
3 84256406 HYDRAULIC VALVE, Coupler
4 86705988 FITTING, 1/2" Hose x 9/16"-18 ORB, Beaded
5 87301276 HYD CONNECTOR, 45 Adj, Elbow, 37FL 1/2in X 3/8in
6 84546406 HYD. TUBE Coupler
7 86511481 BOLT, Hex Flg, M8 x 50, 8.8
8 229197A1 NUT
9 87301490 CLAMP, J, 12.7MM Insul 3/8in Bolt
10 84259682 UNION TEE, Assembly, Option
11 84251346 SWITCH, Rocker, Hydraulic Coupler
12 84546403 BRANCH TEE 1 1/16" - 12 JIC x 1 1/16" - 12 ORB x 3/4" - 16 JIC 12-08-12
13 13021 HOSE CLAMP #08, 0.50"/0.91", Type F Worm, Stainless
14 84259529 RIGID TUBE, Assembly, Hydraulic Coupler
15 84259531 RIGID TUBE, Assembly, Hydraulic Coupler
16 84277054 BRACKET, SUPPORTING, PA, Hydraulic Tube
17 604896 CLAMP, Double
18 D120614 CLAMP
19 9804276 NUT, M6 x 1, Flg, Cl 8
20 412327 CARRIAGE BOLT, Short NK, M6 x 40, Cl8.8
21 84292314 HOSE, Hydraulic Coupler, Drain
22 76350 CONNECTOR
23 87442337 CYLINDER
24 47426338 STEP Coupler Gray
25 86512993 ELBOW, 45є, 7/16"-20, 37є x 7/16"-20, O-Ring
26 265235 CONNECTOR
27 84387739 ROD, Hydraulic Coupler Position Indicator
28 9671714 BOLT
29 86619801 FLANGE NUT
30 47418981 CHECK VALVE Coupler
31 47426340 HYDRAULIC HOSE 6.30mm ID x 456mm L, SAE 100R16
32 47426339 HYDRAULIC HOSE 6.30mm ID x 240mm L, SAE 100R16
33 47426341 HYDRAULIC HOSE 6.30mm ID x 469mm L, SAE 100R17
34 47426342 HYDRAULIC HOSE 6.30mm ID x 255mm L, SAE 100R17
35 577927 CLAMP
36 9804261 BOLT
37 9804278 NUT, M10 x 1.5, Flg, Cl 8
38 87026500 BOLT Hvy Hex, M6 x 50mm, Cl 8.8
39 86619800 NUT
40 76344 ELBOW
41 605025 CLAMP, Insulated
42 280476 SCREW
43 9804260 BOLT, Hex Flg, M8 x 30, 8.8, Full Thd
44 87342191 WASHER, Spacer
45 84254052 HOSE CLAMP, Tube
46 9804277 NUT
47 84551172 HYD. TUBE Hydraulic Coupler
48 84551175 HYD. TUBE Hydraulic Coupler
49 84555960 HYDRAULIC HOSE Hydraulic Coupler Tube To Hydraulic Coupler Chassis Plumbing
50 87698776 SPACER 1/2" Tube, 8.48mm ID x 12.70mm OD x 36.50mm L
51 87307884 CLAMP P, 27mm, Insul, 5/16" Bolt
52 86511843 BOLT, Hex Flg, M8 x 60, 8.8
53 47426343 HOSE ASSY. Step To Coupler
54 47401099 GUARD Hydraulic Coupler Hose
55 L11541 CABLE TIE
56 84201227 HOSE, Hydraulic Coupler Drain
