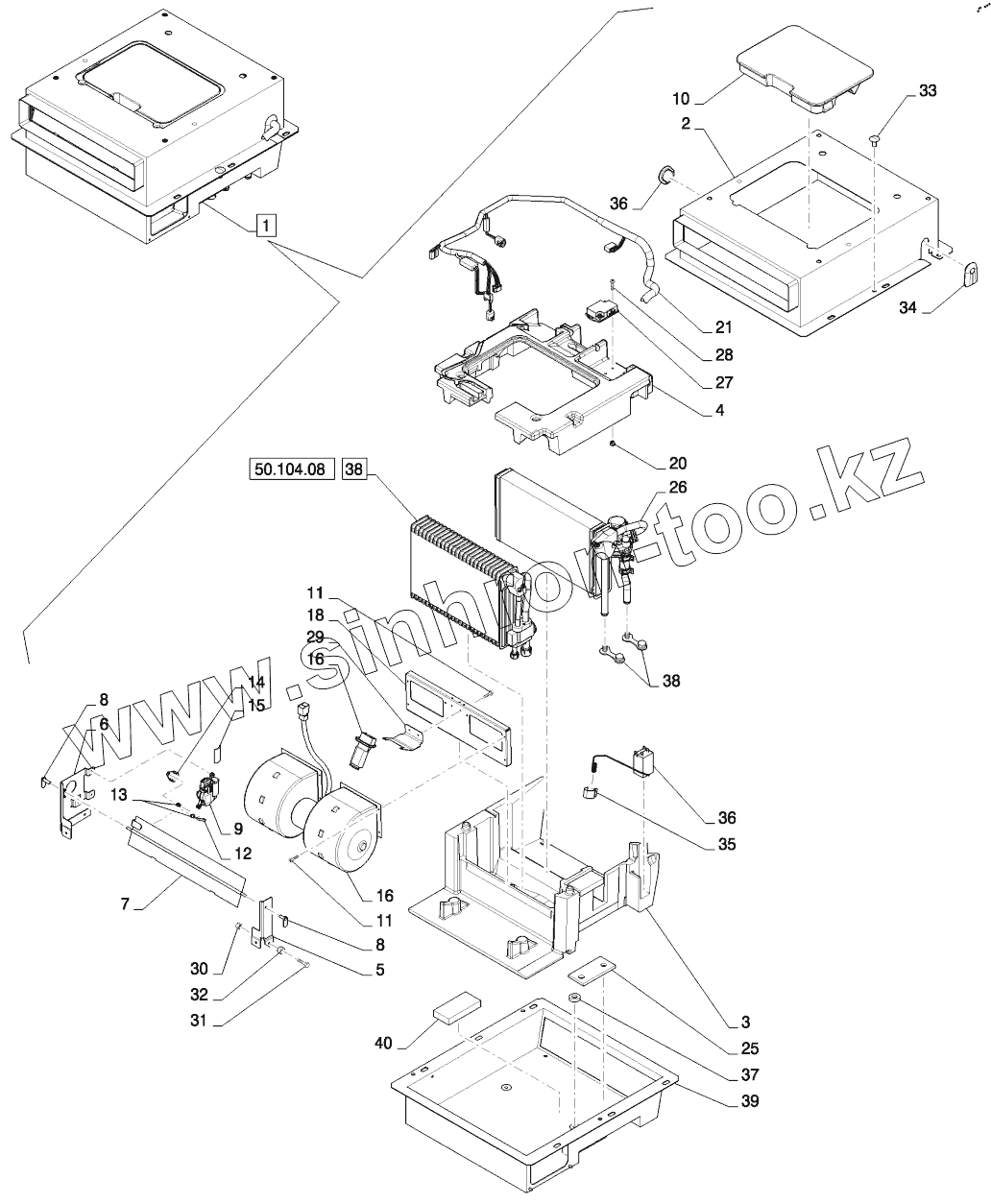

Каталог запасных частей к технике: CASE IH 821F. AIR CONDITIONING WITH HEATER ASSEMBLY

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
16
18
20
21
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
38
Позиция на иллюстрации Заводской номер детали Название детали
1 84192329 AIR CONDITIONER
2 87472438 BOX
3 87474170 SHIELD
4 87472439 BOX
5 NSS NOT SERVICED SEPARATELY
6 NSS NOT SERVICED SEPARATELY
7 87643958 FLAP
8 87643957 BUSHING
9 87528689 SMALL ELECTRIC MOTOR
10 87529462 COVER
11 NSS NOT SERVICED SEPARATELY
12 87472436 TIE-ROD
13 87643955 BUSHING
14 87472437 LEVER
15 NSS NOT SERVICED SEPARATELY
16 84192331 BLOWER ASSY
17 NSS NOT SERVICED SEPARATELY
18 NSS NOT SERVICED SEPARATELY
19 87528688 RESISTOR
20 84192332 WIRE HARNESS
21 87529453 BOX
22 87728778 SEAL
23 87529487 ELEC CONNECTOR
24 87529487 ELEC CONNECTOR
25 NSS NOT SERVICED SEPARATELY
26 NSS NOT SERVICED SEPARATELY
27 87728776 SEAL
28 NSS NOT SERVICED SEPARATELY
29 NSS NOT SERVICED SEPARATELY
30 NSS NOT SERVICED SEPARATELY
31 NSS NOT SERVICED SEPARATELY
32 87476710 GROMMET
33 87472441 PLUG
34 NSS NOT SERVICED SEPARATELY
35 87577360 SPRING CLIP
36 87529621 THERMOSTAT
37 87728777 SEAL
38 87529493 EVAPORATOR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
