Каталог запасных частей к технике: CARMIX-5.5XL. WATER PLANT
1
2
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
7
8
8
10
10
10
11
12
13
13
14
15
16
17
17
17
18
19
19
19
20
21
22
23
24
25
27
27
28
29

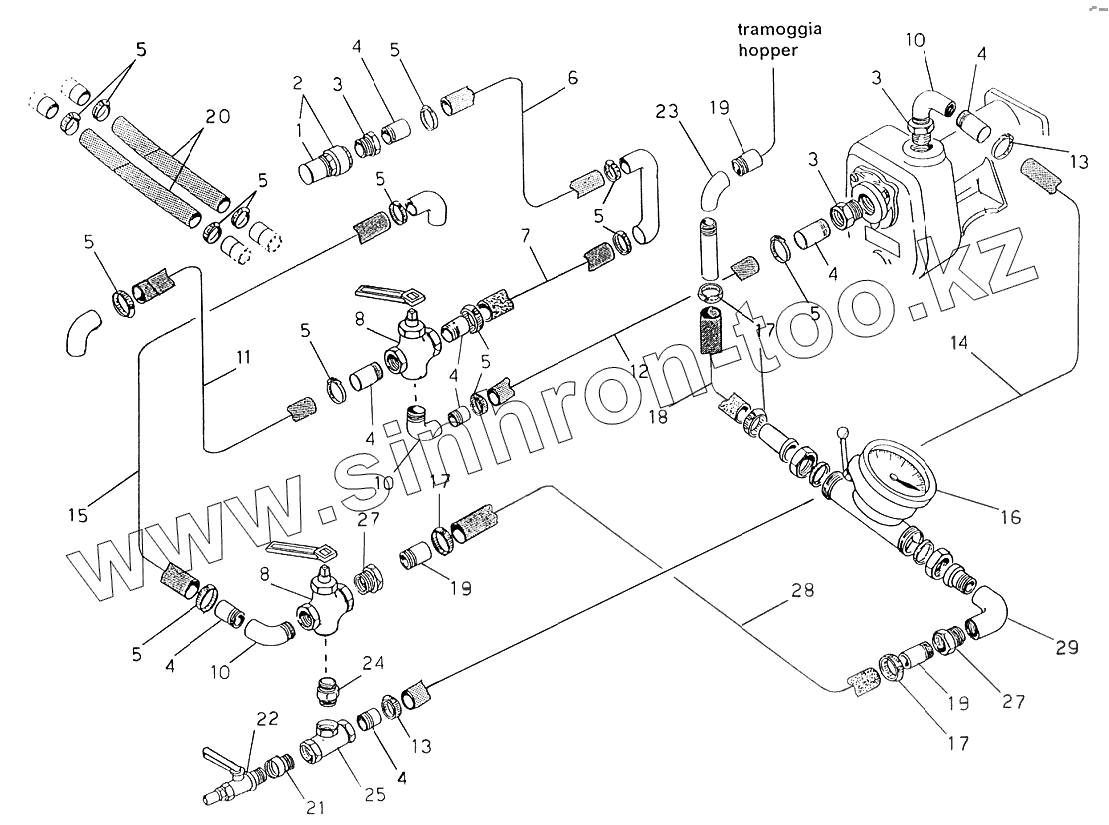

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 027.0030.0002 | Filter | |
| 2 | 027.0030.0000 | Valve with filter | |
| 3 | 046.0026.0000 | Hose fitting | |
| 4 | 046.0036.0000 | Hose fitting | |
| 5 | 009.0031.0000 | Clamp | |
| 6 | 804.0048.0600 | Water hose | |
| 7 | 804.0048.0038 | Water hose | |
| 8 | 037.0019.0000 | Tap | |
| 10 | 046.0072.0000 | Hose fitting | |
| 11 | 804.0048.0074 | Water hose | |
| 12 | 804.0048.0190 | Water hose | |
| 13 | 009.0091.0000 | Clamp | |
| 14 | 804.0048.0208 | Water hose | |
| 15 | 804.0048.0098 | Water hose | |
| 16 | 038.0003.0000 | Liter counter | |
| 17 | 009.0030.0000 | Clamp | |
| 18 | 804.0042.0208 | Water hose | |
| 19 | 046.0028.0000 | Hose fitting | |
| 20 | 804.0048.0090 | Water hose | |
| 21 | 046.0099.0000 | Hose fitting | |
| 22 | 037.0001.0000 | Tap | |
| 23 | 046.0093.0000 | Hose fitting | |
| 24 | 046.0049.0000 | Hose fitting | |
| 25 | 046.0098.0000 | Hose fitting | |
| 27 | 046.0029.0000 | Hose fitting | |
| 28 | 804.0042.0081 | Water hose | |
| 29 | 046.0073.0000 | Hose fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
