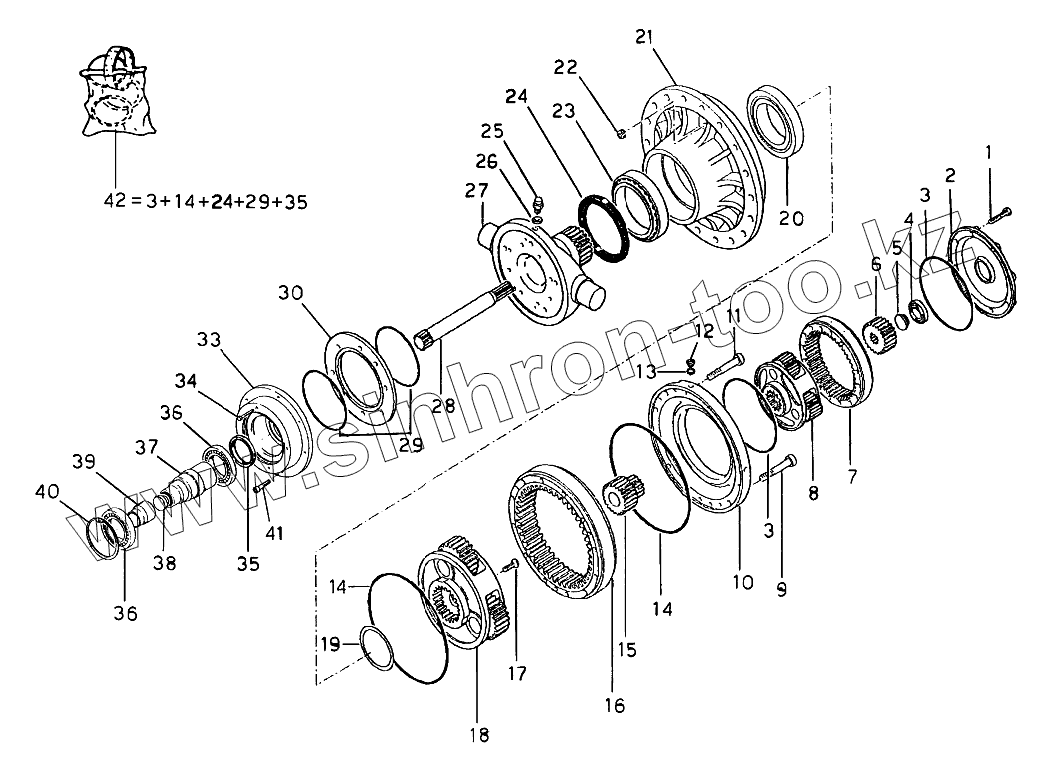

Каталог запасных частей к технике: CARMIX-5.5XL. DRUM ROTATION REDUCER
1
2
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
19
19
20
21
22
23
25
26
27
28
30
33
34
36
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 019.0025.0000 | 019.0025.0000 | Complete reducer | |
| 1 | 019.0003.0014 | Screw | |
| 2 | 019.0025.0001 | Cover | |
| 4 | 019.0003.0038 | Bearing | |
| 5 | 019.0025.0003 | Spacer | |
| 6 | 019.0025.0004 | Sun gear | |
| 7 | 019.0025.0005 | Tooth ring | |
| 8 | 019.0025.0006 | Reduction assembly | |
| 9 | 019.0025.0007 | Screw | |
| 10 | 019.0025.0008 | Cover | |
| 11 | 019.0025.0009 | Screw | |
| 12 | 019.0025.0010 | Plug | |
| 13 | 019.0025.0011 | Washer | |
| 15 | 019.0025.0013 | Sun gear | |
| 16 | 019.0025.0014 | Tooth ring | |
| 17 | 019.0025.0015 | Screw | |
| 18 | 019.0025.0016 | Reduction assembly | |
| 19 | 019.0025.0017 | Spacer | |
| 19 | 019.0025.0018 | Spacer | |
| 20 | 019.0025.0019 | Bearing | |
| 21 | 019.0025.0020 | Housing | |
| 22 | 019.0025.0021 | Plug | |
| 23 | 019.0025.0022 | Bearing | |
| 25 | 019.0003.0011 | Breather | |
| 26 | 019.0003.0010 | Washer | |
| 27 | 019.0025.0024 | Hub | |
| 28 | 019.0025.0025 | Splined shaft | |
| 30 | 019.0025.0026 | Spacer | |
| 33 | 019.0025.0028 | Flange | |
| 34 | 019.0003.0012 | Screw | |
| 36 | 019.0010.0013 | Bearing | |
| 37 | 019.0010.0014 | Coupling | |
| 38 | 019.0010.0012 | Disc | |
| 39 | 019.0010.0016 | Spacer | |
| 40 | 019.0010.0015 | Circlip | |
| 41 | 019.0025.0033 | Screw | |
| 42 | 019.0025.0032 | Gasket set |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
