Каталог запасных частей к технике: CARMIX-3.5TT. SERVICES PLANT
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
22
22
23
24
25
26
27
28
29
30
31
37
37

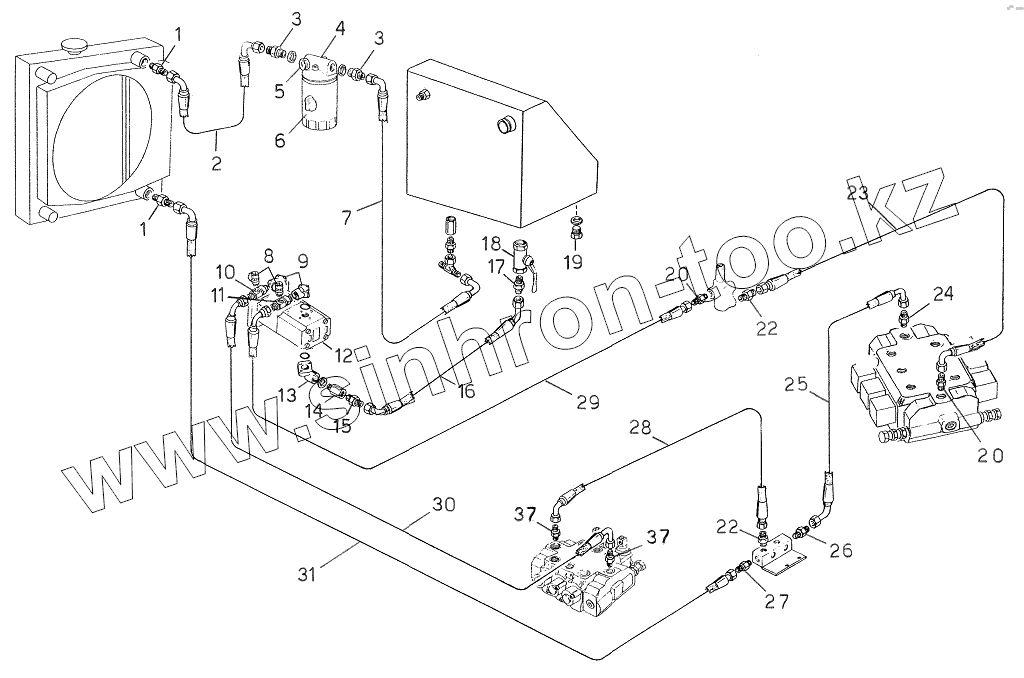

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 008.0052.0000 | Hose fitting | |
| 2 | 803.0424.0050 | Hydraulic hose | |
| 3 | 008.0053.0000 | Hose fitting | |
| 4 | 027.0035.0000 | Filter | |
| 5 | 027.0007.0002 | Manometer | |
| 6 | 027.0006.0001 | Filter cartridge | |
| 7 | 803.0474.0080 | Hydraulic hose | |
| 8 | 008.0216.0000 | Hose fitting | |
| 9 | 007.0012.0000 | Hose fitting | |
| 10 | 008.0214.0000 | Hose fitting | |
| 11 | 008.0215.0000 | Hose fitting | |
| 12 | 028.0059.0000 | Pump | |
| 13 | 007.0015.0000 | Hose fitting | |
| 14 | 008.0275.0000 | Hose fitting | |
| 15 | 008.0150.0000 | Hose fitting | |
| 16 | 803.0942.0160 | Hydraulic hose | |
| 17 | 008.0054.0000 | Hose fitting | |
| 18 | 037.0011.0000 | Tap | |
| 19 | 008.0195.0000 | Cap | |
| 20 | 008.0048.0000 | Hose fitting | |
| 22 | 008.0047.0000 | Hose fitting | |
| 23 | 801.0342.0070 | Hydraulic hose | |
| 24 | 008.0050.0000 | Hose fitting | |
| 25 | 811.0544.0150 | Hydraulic hose | |
| 26 | 008.0094.0000 | Hose fitting | |
| 27 | 008.0205.0000 | Hose fitting | |
| 28 | 811.0342.0130 | Hydraulic hose | |
| 29 | 801.0524.0600 | Hydraulic hose | |
| 30 | 801.0344.0585 | Hydraulic hose | |
| 31 | 811.0427.0380 | Hydraulic hose | |
| 37 | 008.0045.0000 | Hose fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
