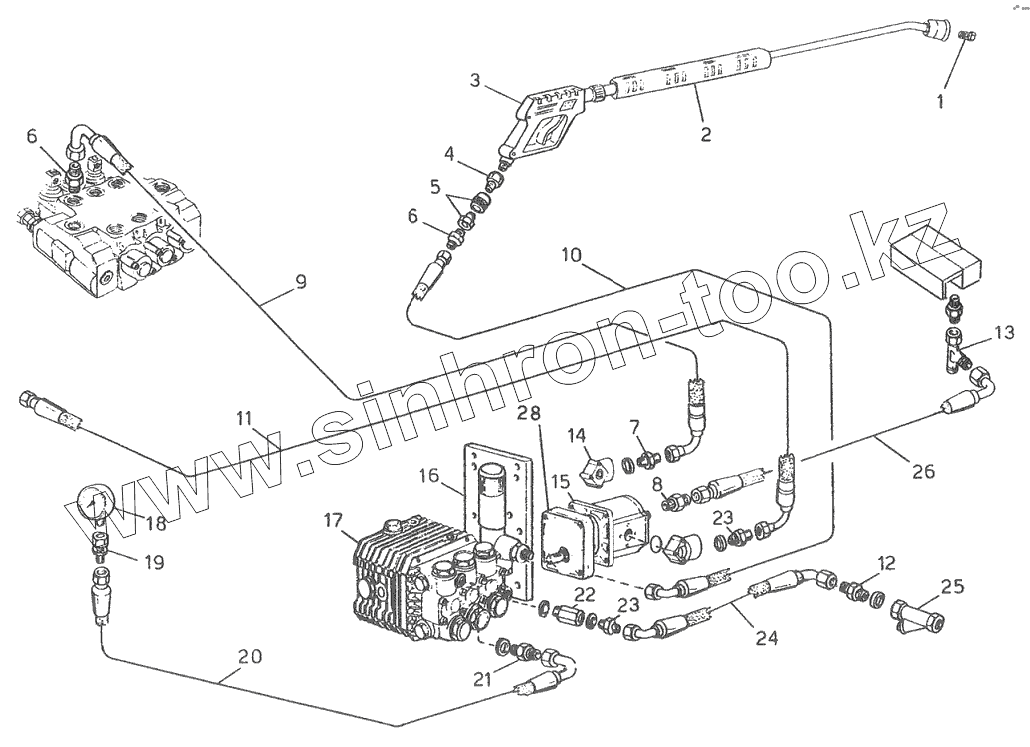

Каталог запасных частей к технике: CARMIX-3.5TT. HIGH PRESSURE PUMP PLANT
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009.0105.0000 | Nozzle | |
| 2 | 037.0007.0000 | Hose pipe | |
| 3 | 037.0006.0000 | Gun | |
| 4 | 008.0157.0000 | Hose fitting | |
| 5 | 008.0115.0000 | Hose fitting | |
| 6 | 008.0044.0000 | Hose fitting | |
| 7 | 008.0045.0000 | Hose fitting | |
| 8 | 008.0042.0000 | Hose fitting | |
| 9 | 812.0244.0415 | Hydraulic hose | |
| 10 | 800.0242.1200 | Hydraulic hose | |
| 11 | 811.0547.0230 | Hydraulic hose | |
| 12 | 008.0050.0000 | Hose fitting | |
| 13 | 008.0288.0000 | Hose fitting | |
| 14 | 007.0001.0000 | Flange | |
| 15 | 029.0040.0000 | Motor | |
| 16 | 045.0031.0000 | Plate | |
| 17 | 036.0007.0000 | Pump | |
| 18 | 009.0104.0000 | Pressure gauge | |
| 19 | 008.0158.0000 | Hose fitting | |
| 20 | 814.0142.0140 | Hydraulic hose | |
| 21 | 008.0041.0000 | Hose fitting | |
| 22 | 008.0155.0000 | Hose fitting | |
| 23 | 008.0048.0000 | Hose fitting | |
| 24 | 803.0544.0060 | Hydraulic hose | |
| 25 | 027.0012.0000 | Filter | |
| 26 | 814.0242.0049 | Hydraulic hose | |
| 28 | 008.0314.0000 | Support |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
